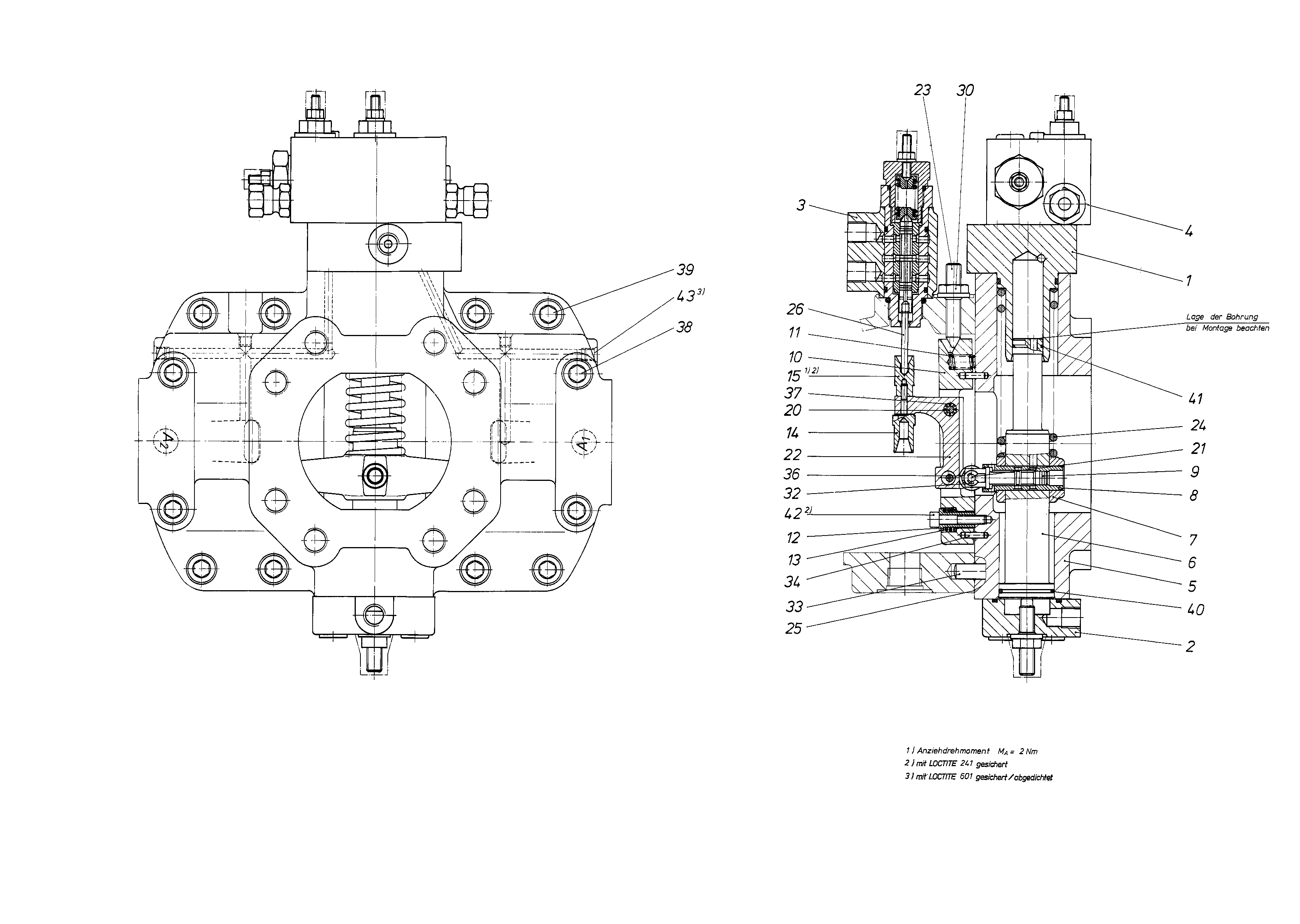

Baugruppe
CONTROLR909422291
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909422292 | COVER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909420418 | COVER Stückliste der Baugruppe →L | 1 | |
| R909420416 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| 4 | R909424308 | SEQUENCE VALVE Stückliste der Baugruppe →L | 1 | |
| 5 | R909419293 | CONTROL HOUSING | 1 | |
| R909412864 | POSITIONING PISTON | 1 | ||
| R909415118 | SWIVEL FORK | 1 | ||
| 8 | R909412866 | CONTROL SLEEVE | 1 | |
| 9 | R909412867 | CONTROL PISTON | 1 | |
| R902004382 | BEARING PEDESTAL | 1 | ||
| R909073211 | COMPRESSION SPRING | 1 | ||
| R909418581 | BACK-UP BUSHING | 1 | ||
| R909418577 | COMPRESSION SPRING | 1 | ||
| R909419130 | LOCATION PIECE | 1 | ||
| R909422304 | LOCATION PIECE | 1 | ||
| R909415924 | BOLT | 2 | ||
| 21 | R909411212 | BOLT | 1 | |
| R909419629 | REGULATOR LEVER | 1 | ||
| R909412369 | SETSCREW | 1 | ||
| R909410885 | COMPRESSION SPRING | 1 | ||
| 25 | R909650391 | SEALD | 1 | |
| 26 | R909419084 | PIN | 1 | |
| R909152426 | SEALING NUTD | 1 | ||
| R909085810 | LOCKING WASHER | 6 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| 2917890095 | STRAIGHT PIN | 2 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909156271 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 8 | ||
| R909156647 | R-RINGD | 1 | ||
| 41 | R909153873 | R-RINGD | 1 | |
| 42 | R909083024 | SOCKET HEAD CAP SCREW | 1 | |
| 43 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 |
