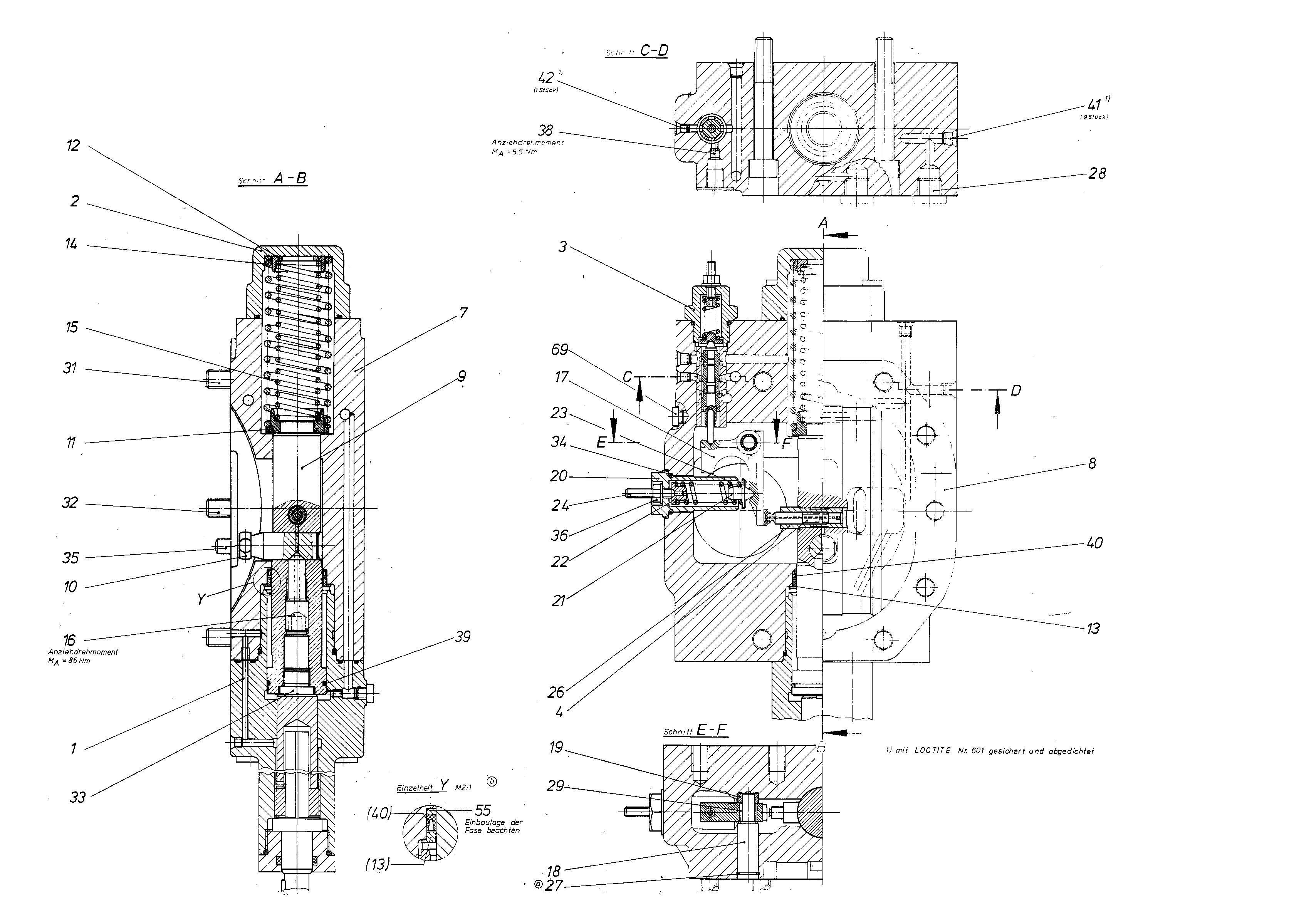

Baugruppe
CONTROLR909422443
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909413090 | STROKE LIMITER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909413296 | COVER Stückliste der Baugruppe →L | 1 | |
| R909413713 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419352 | PISTON PAD | 1 | ||
| R909430756 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| 8 | R902011851 | SEALD | 1 | |
| 9 | R909425502 | POSITIONING PISTON | 1 | |
| R909425503 | POSITIONING STUD | 1 | ||
| 11 | R909413241 | SPRING DISK | 1 | |
| 12 | R909413492 | SPRING DISK | 1 | |
| R909424360 | RING | 1 | ||
| 14 | R909413494 | COMPRESSION SPRING | 1 | |
| R909413493 | COMPRESSION SPRING | 1 | ||
| 16 | R909413697 | SETSCREW | 1 | |
| R909415563 | LEVER | 1 | ||
| 18 | R909413698 | BEARING BOLT | 1 | |
| R909412689 | BUSHING | 1 | ||
| R909412931 | SCREW PLUG | 1 | ||
| 21 | R909435516 | SPRING DISK | 1 | |
| 22 | R909435517 | SPRING DISK | 1 | |
| R909413035 | COMPRESSION SPRING | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| 26 | R909425555 | ADJUSTING BUSH | 1 | |
| 28 | R909153816 | SCREW PLUGD | 2 | |
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| 31 | R909083101 | SOCKET HEAD CAP SCREW | 7 | |
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156479 | R-RINGD | 1 | ||
| 40 | R909156543 | ROD SEALD | 1 | |
| 41 | R909831319 | DOUBLE BREAK-OFF PLUG | 5 | |
| 42 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 55 | R909424361 | BACKUP RING | 1 | |
| R909154024 | SCREW PLUGD | 1 |
