Baugruppe

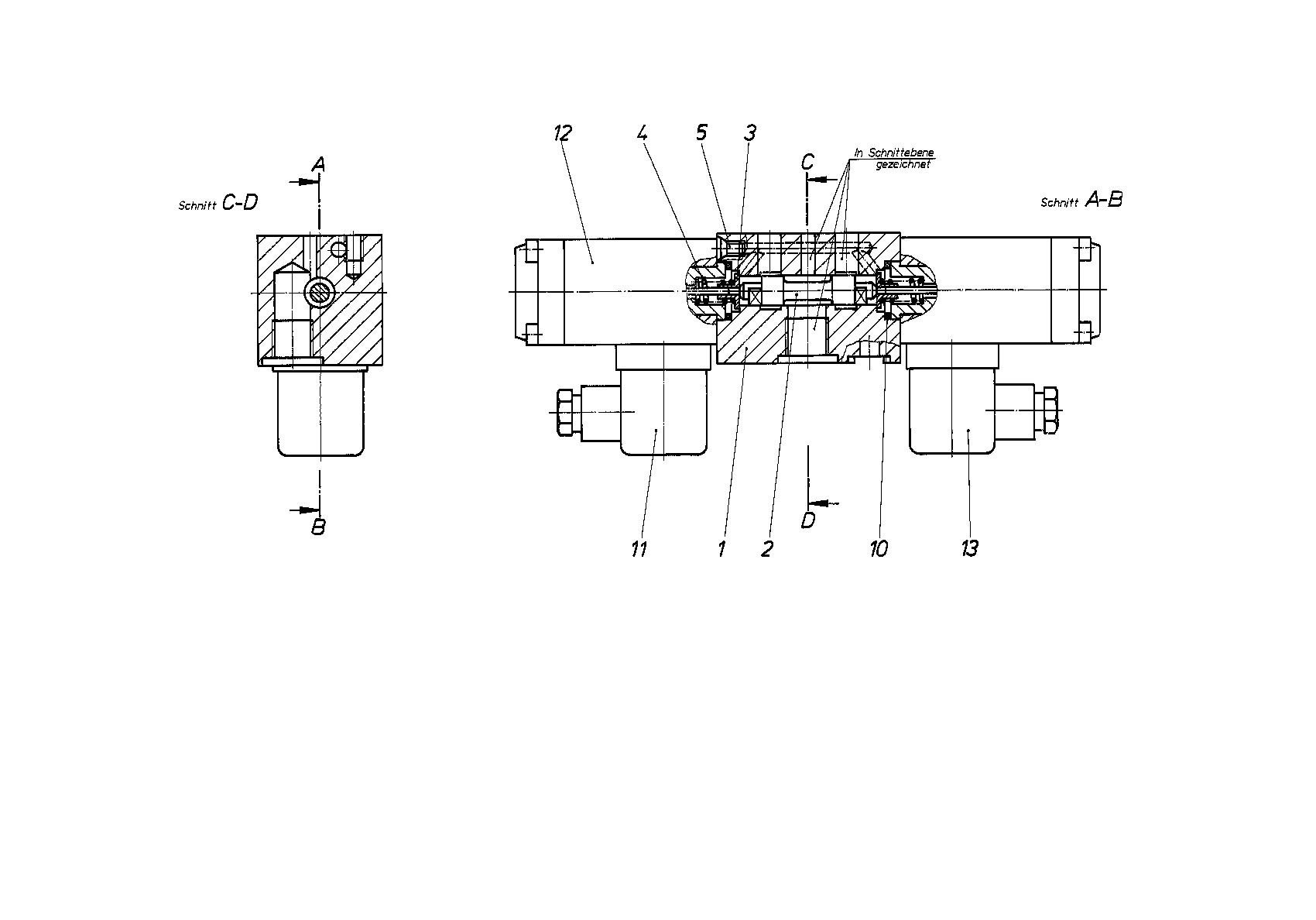

DIRECTIONAL-CONTROL VALVER909422653
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909419956 | VALVE HOUSING | 1 | ||
| R909071345 | CONTROL PISTON | 1 | ||
| R909069544 | SPRING DISK | 2 | ||
| R909071362 | COMPRESSION SPRING | 2 | ||
| 5 | R909419974 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909083734 | O-RINGD | 2 | ||
| 11 | R913022796 | PLUG-IN CONNECTOR | 1 | |
| 12 | R909428265 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 2 | |
| 13 | R913022795 | PLUG-IN CONNECTOR | 1 |
