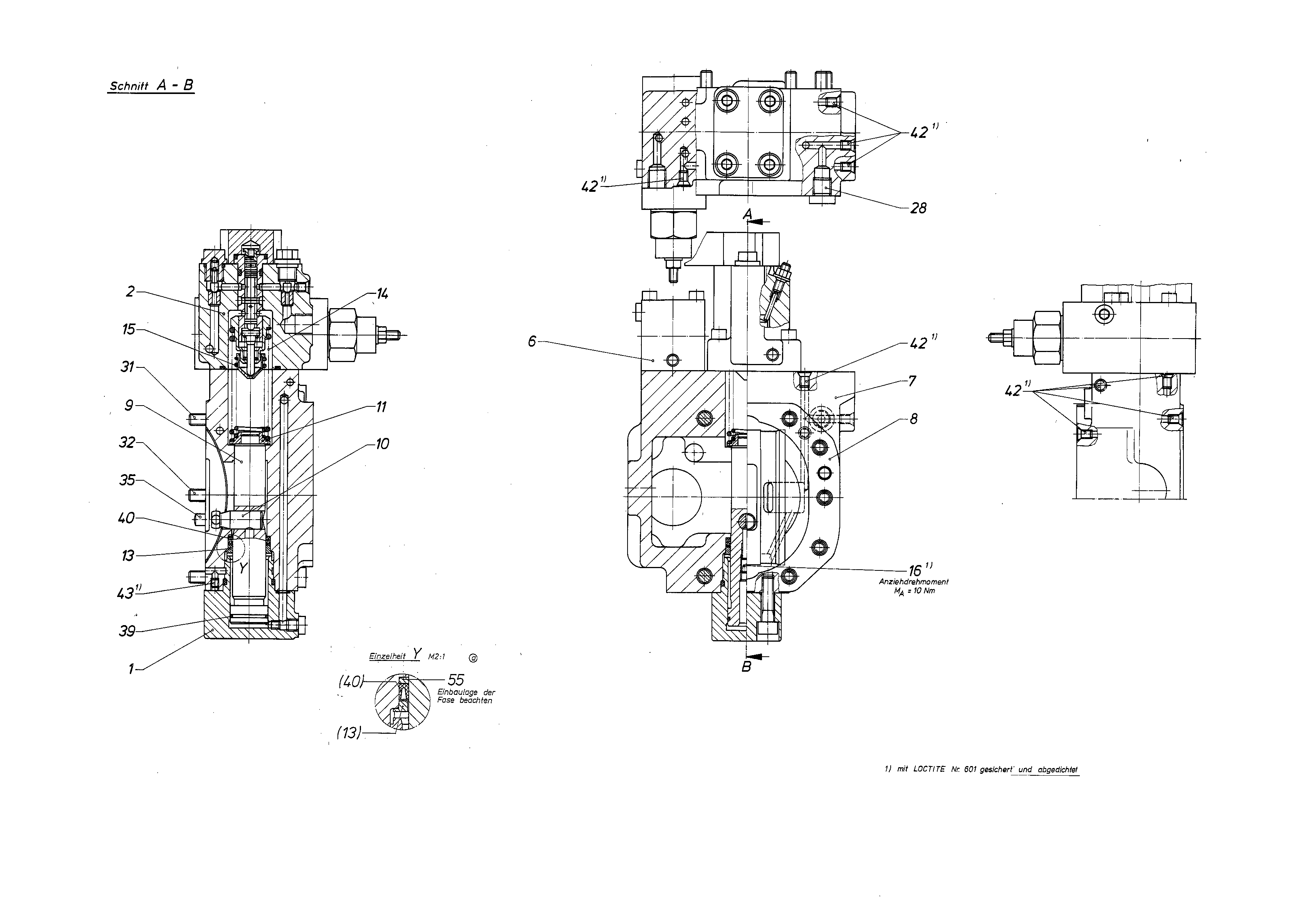

Baugruppe
CONTROLR909422702
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909416967 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909424726 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909421939 | SEQUENCE VALVE Stückliste der Baugruppe →L | 1 | ||
| R909421920 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024641 | SEALD | 1 | ||
| R909425513 | POSITIONING PISTON | 1 | ||
| R909425515 | POSITIONING STUD | 1 | ||
| R909417663 | SPRING DISK | 1 | ||
| R909424385 | RING | 1 | ||
| R909417738 | COMPRESSION SPRING | 1 | ||
| R909417733 | COMPRESSION SPRING | 1 | ||
| R909409589 | SETSCREW | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909083049 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909156962 | R-RINGD | 1 | ||
| R909156545 | ROD SEALD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083489 | SETSCREW | 1 | ||
| R909424386 | BACKUP RING | 1 |
