Baugruppe
CONTROL PARTR909422818

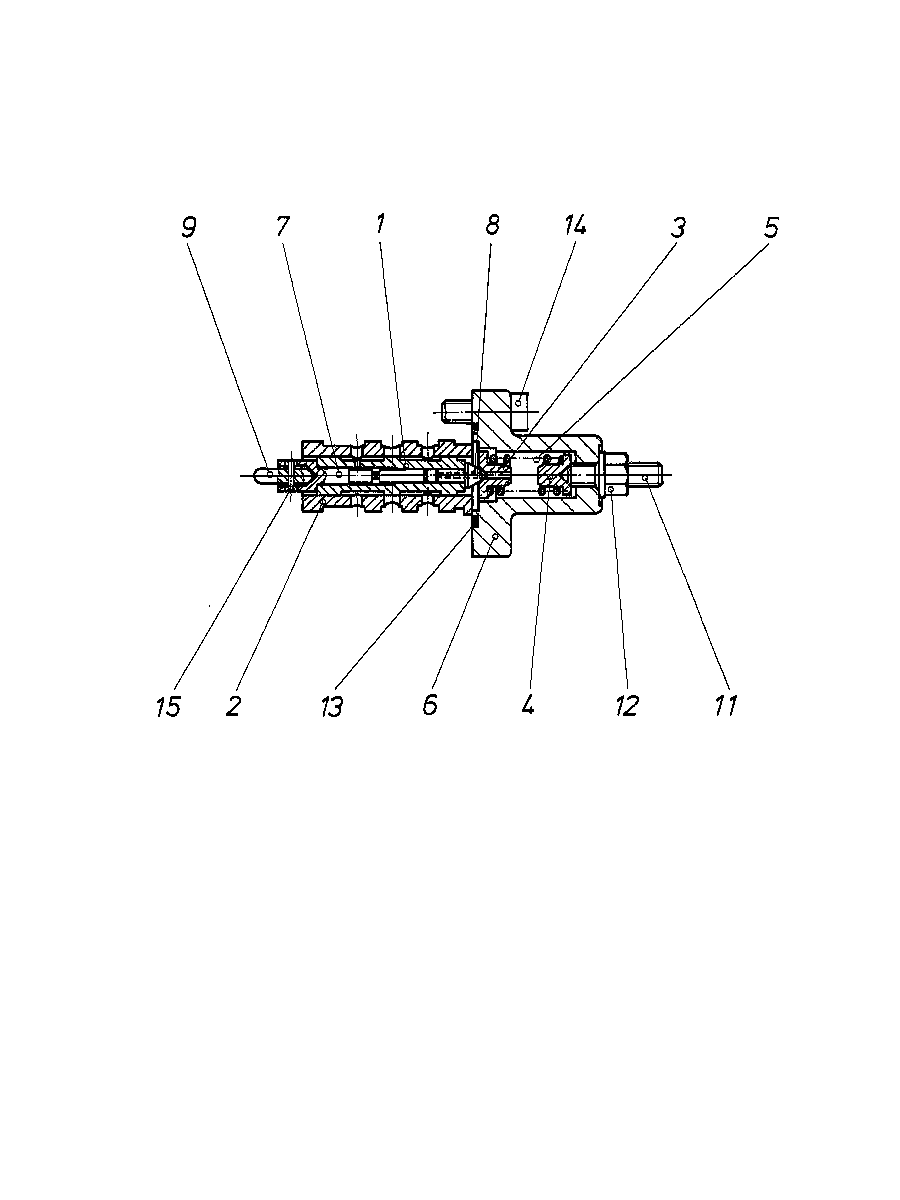

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909420733 | CONTROL SLEEVE | 1 | ||
| R909419420 | CONTROL SLEEVE | 1 | ||
| R909421368 | SPRING DISK | 1 | ||
| R909417036 | SPRING DISK | 1 | ||
| R909416963 | COMPRESSION SPRING | 1 | ||
| R909422860 | COVER | 1 | ||
| R909426508 | POSITIONING PISTON | 1 | ||
| R909420735 | BOLT | 1 | ||
| R909426509 | PIN | 1 | ||
| 11 | R909420991 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| R909086250 | O-RINGD | 1 | ||
| 14 | R909083019 | SOCKET HEAD CAP SCREW | 2 | |
| R909157511 | SLOTTED SPRING PIN | 1 |
