Baugruppe

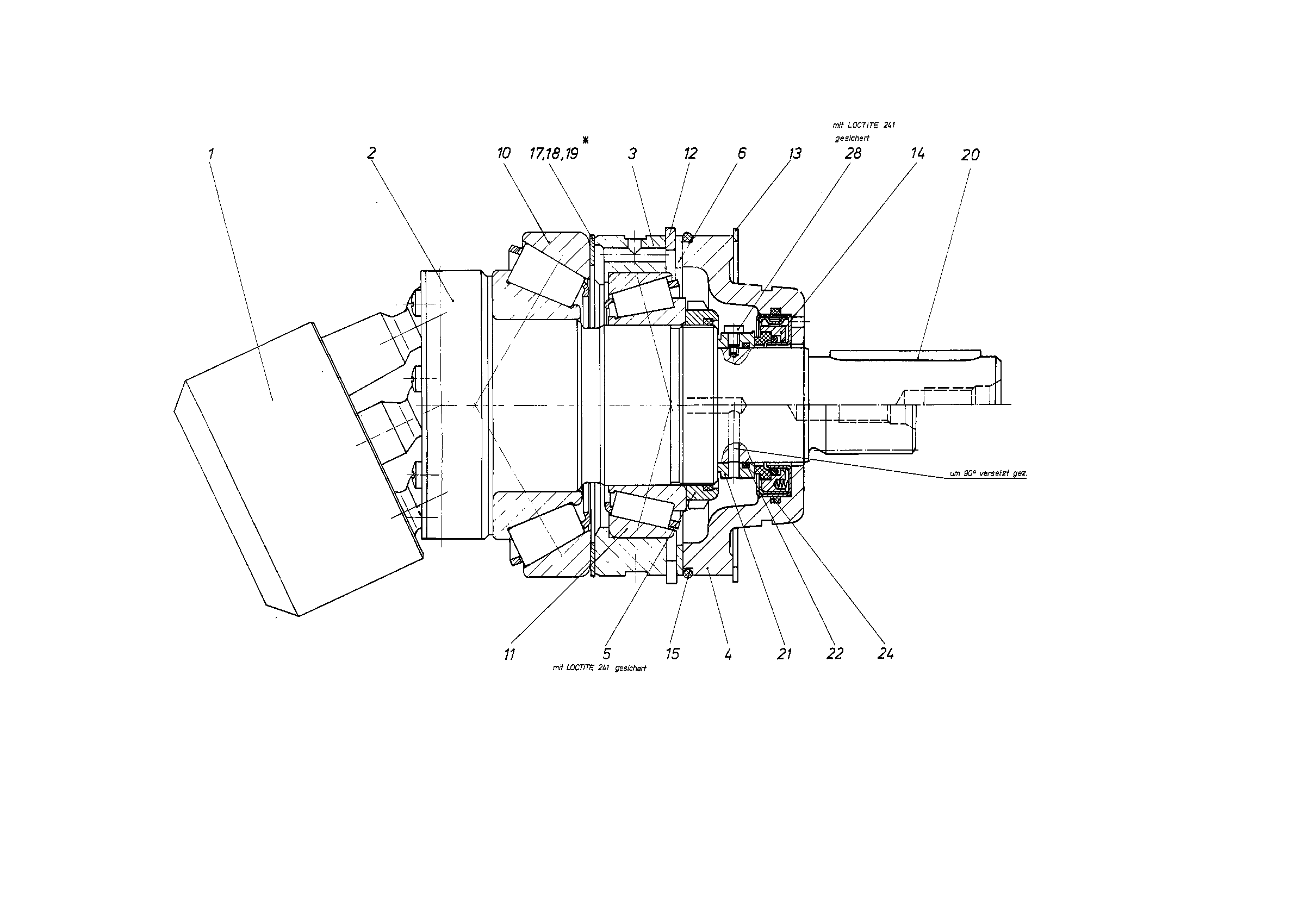

ROTARY GROUPR909423436
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909428944 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | |
| 2 | R909425772 | DRIVE SHAFT | 1 | |
| R909410637 | BEARING RING | 1 | ||
| R909425319 | LOCKING RING | 1 | ||
| 5 | R909156328 | SLOTTED ROUND NUT | 1 | |
| R909156329 | SUPPORTING DISC | 1 | ||
| 10 | R909154687 | TAPERED-ROLLER BEARING | 1 | |
| 11 | R909154688 | TAPERED-ROLLER BEARING | 1 | |
| R909083422 | RETAINING RING | 1 | ||
| R909156330 | SNAP RING | 1 | ||
| R909157436 | SLIDE RING SEALD | 1 | ||
| R909156653 | O-RINGD | 1 | ||
| 17 | R909156331 | SHIM RING | 2 | |
| 18 | R909156332 | SHIM RING | 1 | |
| 19 | R909156333 | SHIM RING | 1 | |
| 21 | R909425146 | COUNTER RINGD | 1 | |
| R902600661 | O-RINGD | 1 | ||
| 24 | R909157289 | O-RINGD | 1 | |
| 28 | R909650099 | HEXAGON SCREW | 1 |
