Baugruppe

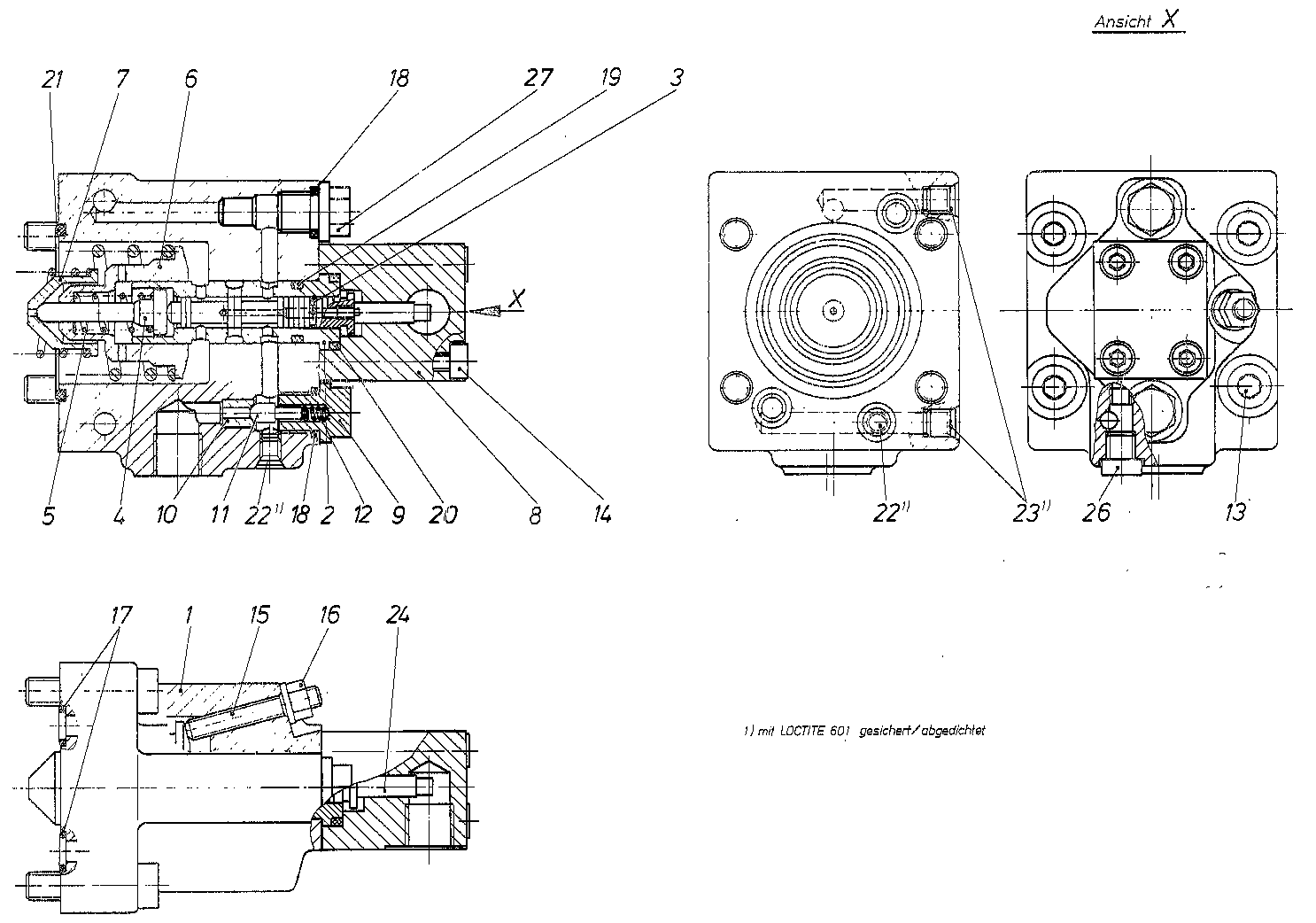

CONTROL MODULER909423536
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909424547 | HOUSING | 1 | ||
| R909416335 | CONTROL SLEEVE | 1 | ||
| R909416336 | CONTROL PISTON | 1 | ||
| R909416337 | SPRING BOLT | 1 | ||
| R909416340 | COMPRESSION SPRING | 1 | ||
| R909416338 | SPRING BUSH | 1 | ||
| R909416339 | SPRING DISK | 1 | ||
| R909424381 | COVER | 1 | ||
| R902035187 | SCREW PLUG | 1 | ||
| R902209845 | BUSHING | 1 | ||
| R909426662 | BOLT | 1 | ||
| R909060383 | COMPRESSION SPRING | 1 | ||
| R909083023 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083016 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154057 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086498 | O-RINGD | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909086729 | O-RINGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086334 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909424382 | PISTON | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909083236 | SCREW PLUG | 1 |
