Baugruppe

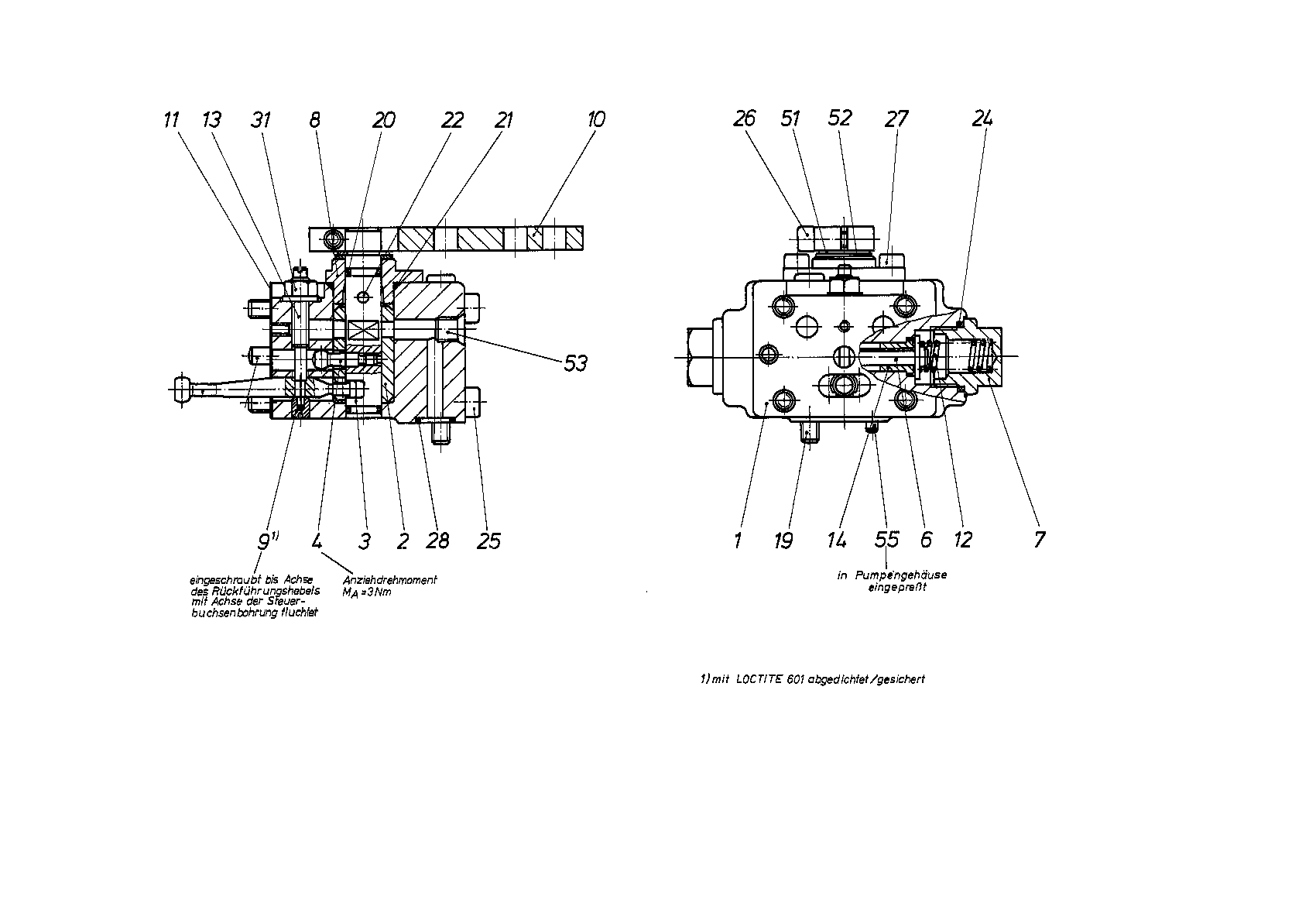

CONTROL MODULER909423550
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909425914 | HOUSING | 1 | ||
| 2 | R909439059 | CONTROL SLEEVE | 1 | |
| R909076420 | CONTROL SHAFT | 1 | ||
| R909425121 | POSITIONING STUD | 1 | ||
| 6 | R909425120 | BOLT | 2 | |
| R909400335 | SCREW PLUG | 2 | ||
| R909436541 | COVER | 1 | ||
| 9 | R902016196 | SETSCREW | 1 | |
| R909401723 | LEVER | 1 | ||
| 11 | R902603829 | SEALD | 1 | |
| 12 | R909416191 | COMPRESSION SPRING | 2 | |
| 13 | R902206461 | ECCENTRIC PIN | 1 | |
| 14 | R909400336 | BUSHING | 2 | |
| R909084385 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| 21 | R909086432 | O-RINGD | 1 | |
| 22 | R909156217 | NEEDLE-ROLLER | 1 | |
| 24 | R909083757 | O-RINGD | 2 | |
| 25 | R909085700 | SOCKET HEAD CAP SCREW | 4 | |
| 26 | R909083012 | SOCKET HEAD CAP SCREW | 1 | |
| 27 | R909083183 | SOCKET HEAD CAP SCREW | 2 | |
| 28 | R909157512 | O-RINGD | 1 | |
| 31 | R909152425 | SEALING NUT | 1 | |
| 51 | R909083346 | RETAINING RING | 1 | |
| 52 | R909086180 | SHIM RING | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 55 | R913009663 | STRAIGHT PIN | 1 |
