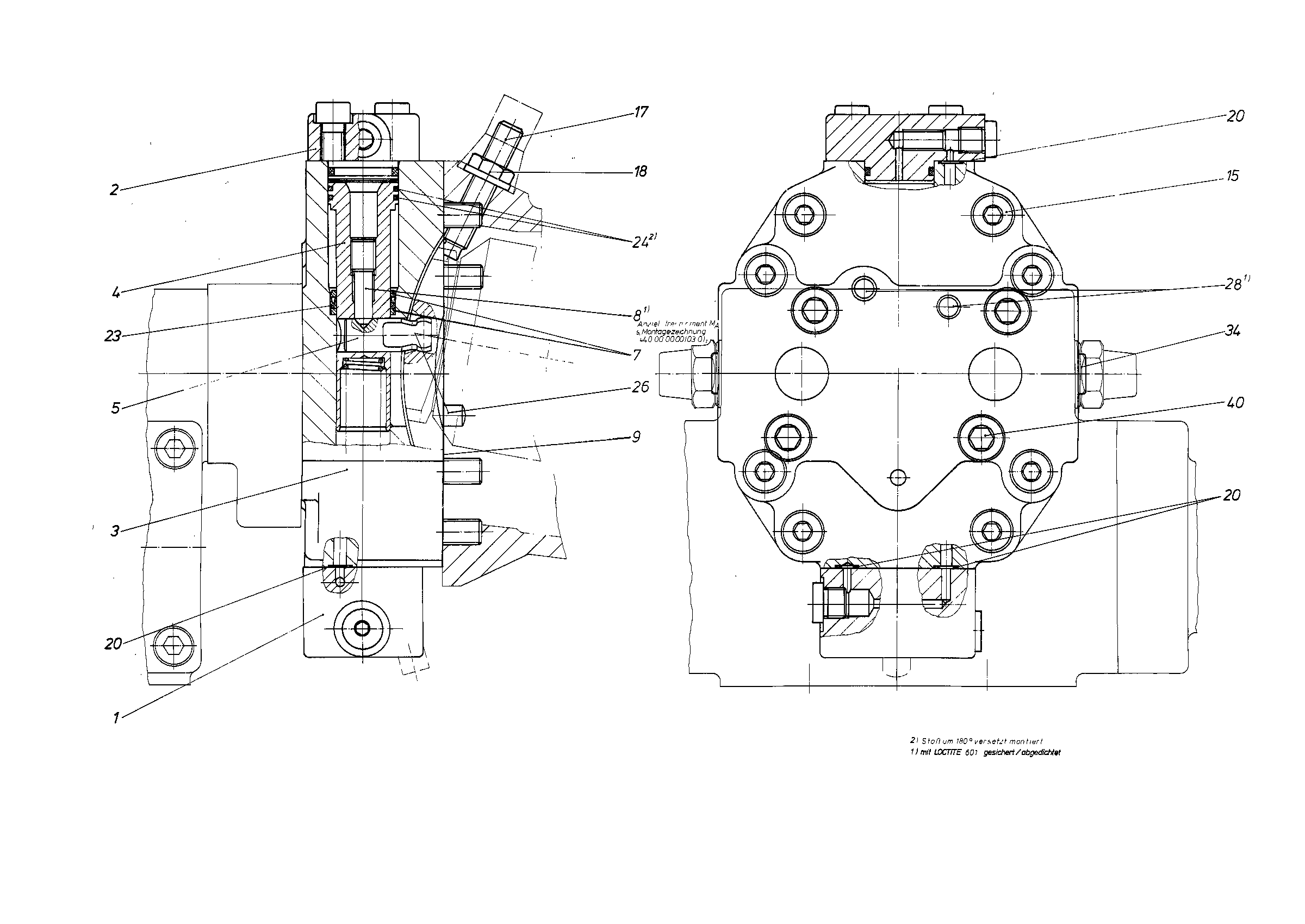

Baugruppe
CONTROLR909423558
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909416043 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 2 | R909423093 | COVER Stückliste der Baugruppe →L | 1 | |
| R909425605 | COVER PLATE | 1 | ||
| 4 | R909422948 | POSITIONING PISTON | 1 | |
| 5 | R909422949 | POSITIONING STUD | 1 | |
| R909422950 | BACKUP RING | 2 | ||
| R909445016 | SETSCREW | 1 | ||
| 9 | R902011855 | SEALD | 1 | |
| R909083097 | SOCKET HEAD CAP SCREW | 8 | ||
| R909446862 | SETSCREW Stückliste der Baugruppe →L | 1 | ||
| 18 | R909152459 | SEALING NUTD | 1 | |
| R909086498 | O-RINGD | 5 | ||
| R909156540 | ROD SEALD | 1 | ||
| 24 | R902602841 | STEEL SEALING RINGD | 2 | |
| 26 | R913009669 | STRAIGHT PIN | 2 | |
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 34 | R909153815 | SCREW PLUGD | 2 | |
| 40 | R909153797 | SOCKET HEAD CAP SCREW | 4 |
