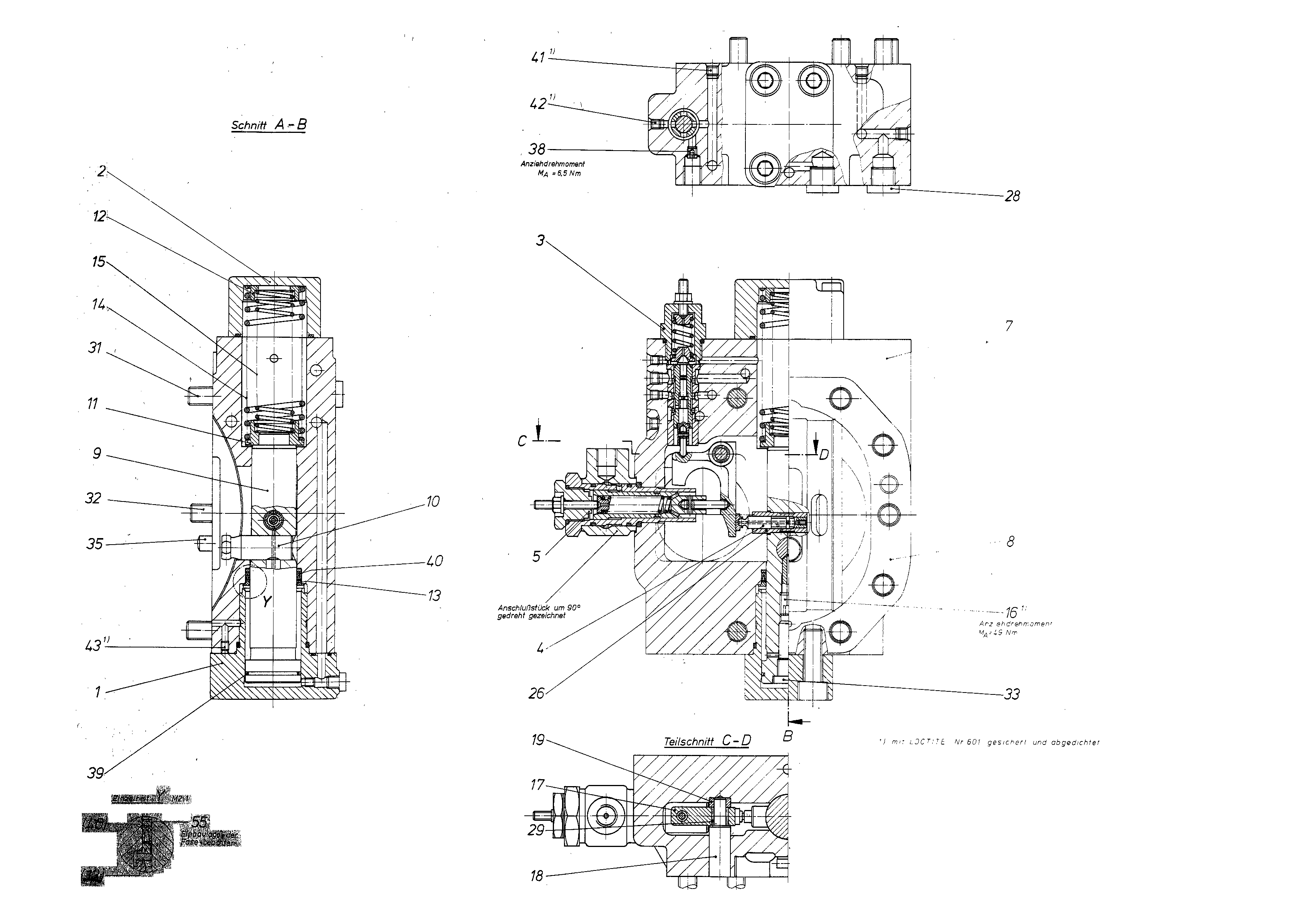

Baugruppe
CONTROLR909423614
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909412457 | COVER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909412456 | COVER Stückliste der Baugruppe →L | 1 | |
| R909413031 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419351 | PISTON PAD | 1 | ||
| 5 | R909427066 | ADJUSTING PART Stückliste der Baugruppe →L | 1 | |
| R909422303 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| 8 | R902024643 | SEALD | 1 | |
| 9 | R909425504 | POSITIONING PISTON | 1 | |
| R909425505 | POSITIONING STUD | 1 | ||
| 11 | R909412402 | SPRING DISK | 1 | |
| R909412450 | SPRING DISK | 1 | ||
| 13 | R909422953 | RING | 1 | |
| R909412452 | COMPRESSION SPRING | 1 | ||
| 15 | R909412451 | COMPRESSION SPRING | 1 | |
| 16 | R909413014 | SETSCREW | 1 | |
| R909422794 | LEVER | 1 | ||
| R909412688 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909425554 | ADJUSTING BUSH | 1 | ||
| 28 | R909153816 | SCREW PLUGD | 2 | |
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| 31 | R909083100 | SOCKET HEAD CAP SCREW | 7 | |
| 32 | R909083087 | SOCKET HEAD CAP SCREW | 1 | |
| R909151979 | SCREW PLUGD | 1 | ||
| 35 | R913009669 | STRAIGHT PIN | 2 | |
| R909156493 | NOZZLE | 1 | ||
| R909156647 | R-RINGD | 1 | ||
| R909156541 | ROD SEALD | 1 | ||
| 41 | R909831319 | DOUBLE BREAK-OFF PLUG | 5 | |
| 42 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 43 | R909083489 | SETSCREW | 1 | |
| 55 | R909422954 | WASHER | 1 | |
| 69 | R909154024 | SCREW PLUGD | 1 |
