Baugruppe

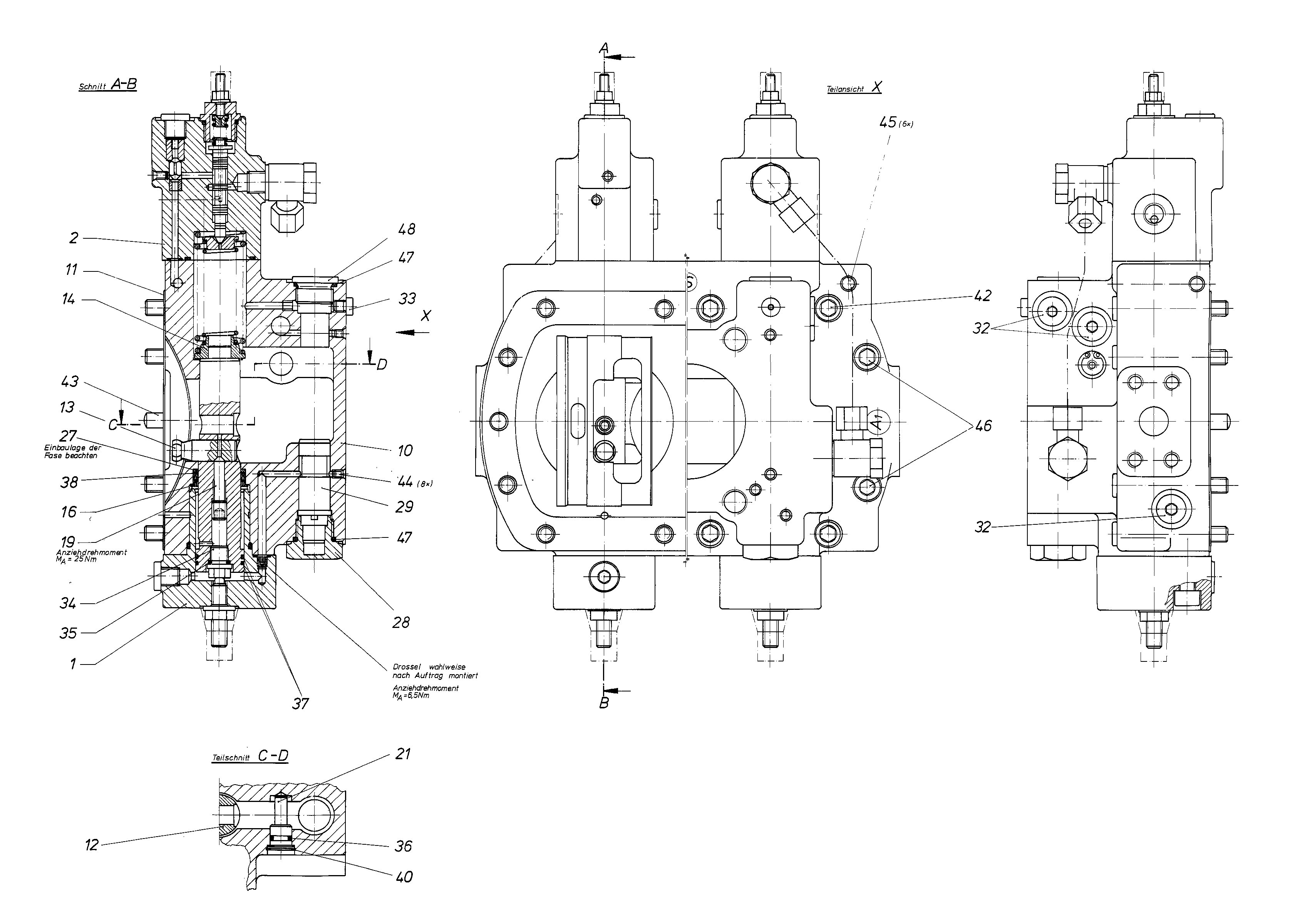

CONTROLR909423730
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909419031 | COVER Stückliste der Baugruppe →L | 2 | ||
| R909422494 | CONTROL MODULE Stückliste der Baugruppe →L | 2 | ||
| R909422545 | CONTROL HOUSING | 1 | ||
| R909650391 | SEALD | 1 | ||
| R909430985 | POSITIONING PISTON | 2 | ||
| R909425505 | POSITIONING STUD | 2 | ||
| R909412402 | SPRING DISK | 2 | ||
| R909422953 | RING | 2 | ||
| R909409591 | SETSCREW | 2 | ||
| R909418641 | BEARING BOLT | 2 | ||
| R909422954 | WASHER | 2 | ||
| R909412929 | SCREW PLUG | 2 | ||
| R909425449 | PLUG | 2 | ||
| R909151979 | SCREW PLUGD | 6 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909156417 | SCREW PLUG | 2 | ||
| R909086729 | O-RINGD | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909156647 | R-RINGD | 4 | ||
| R909156541 | ROD SEALD | 2 | ||
| R909083382 | RETAINING RING | 2 | ||
| R909083098 | SOCKET HEAD CAP SCREW | 8 | ||
| R913007909 | STRAIGHT PIN | 2 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909083093 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086517 | O-RINGD | 4 | ||
| R909083226 | SCREW PLUG | 2 |
