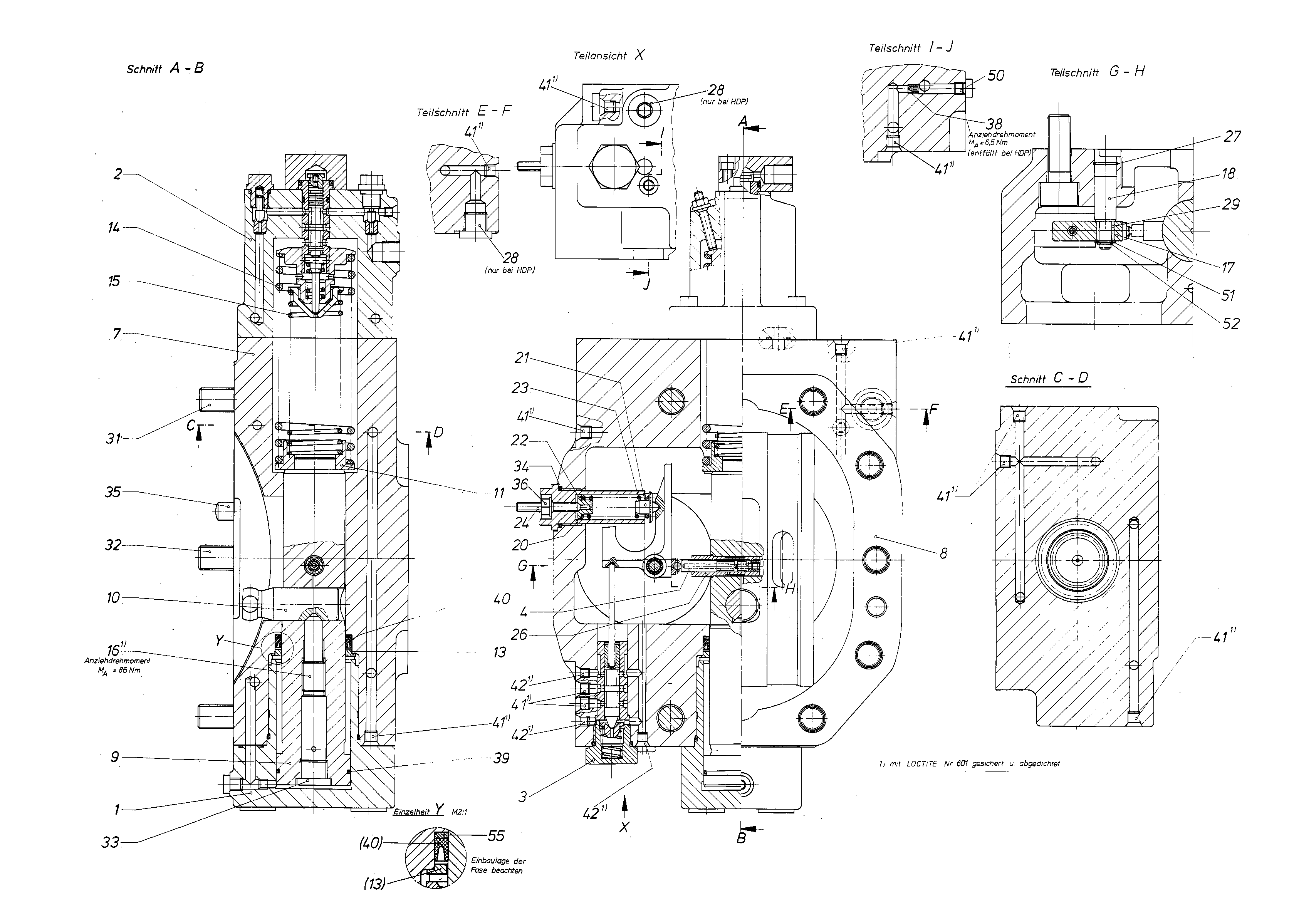

Baugruppe
CONTROLR909423735
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909418613 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909424733 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909421941 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419353 | PISTON PAD | 1 | ||
| R909421924 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024645 | SEALD | 1 | ||
| R909425451 | POSITIONING PISTON | 1 | ||
| R909425457 | POSITIONING STUD | 1 | ||
| R909418627 | SPRING DISK | 1 | ||
| R909424412 | RING | 1 | ||
| R909418517 | COMPRESSION SPRING | 1 | ||
| R909418518 | COMPRESSION SPRING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909422062 | LEVER | 1 | ||
| R909421926 | BEARING BOLT | 1 | ||
| R909419861 | SCREW PLUG | 1 | ||
| R909435516 | SPRING DISK | 1 | ||
| R909435517 | SPRING DISK | 1 | ||
| R909413035 | COMPRESSION SPRING | 1 | ||
| R909421403 | SETSCREW | 1 | ||
| R909425556 | ADJUSTING BUSH | 1 | ||
| R909157317 | SNAP RING | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083144 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156777 | R-RINGD | 1 | ||
| R909157036 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909157078 | SHIM RING | 1 | ||
| R909083343 | RETAINING RING | 1 | ||
| R909424410 | BACKUP RING | 1 |
