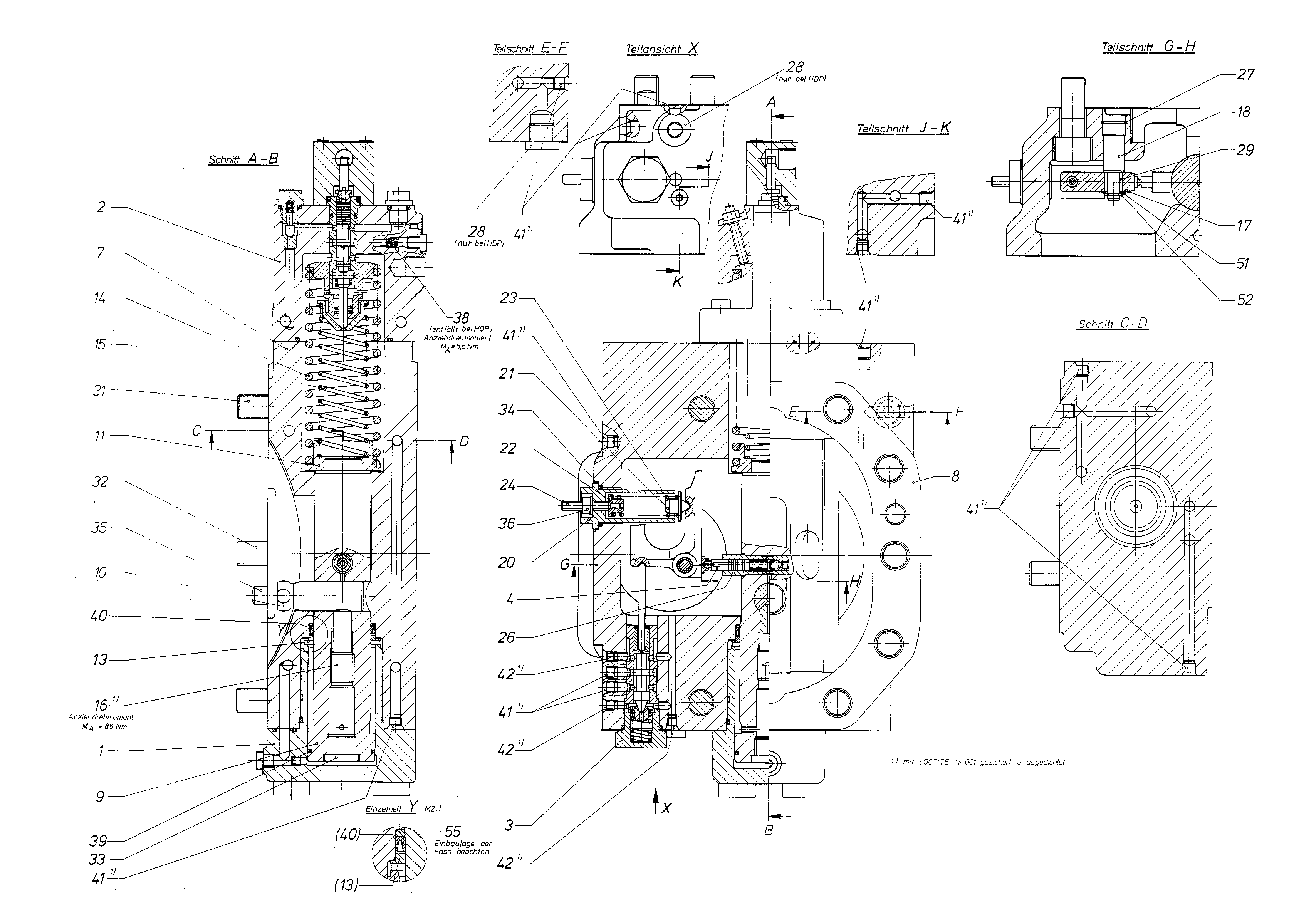

Baugruppe
CONTROLR909423819
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909414915 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909424731 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909422629 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419353 | PISTON PAD | 1 | ||
| R909425728 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| 8 | R902024644 | SEAL | 1 | |
| R909425484 | POSITIONING PISTON | 1 | ||
| R909425485 | POSITIONING STUD | 1 | ||
| R909414864 | SPRING DISK | 1 | ||
| R909424406 | RING | 1 | ||
| R909414907 | COMPRESSION SPRING | 1 | ||
| R909419802 | COMPRESSION SPRING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909422062 | LEVER | 1 | ||
| R909422415 | BEARING BOLT | 1 | ||
| R909414909 | SCREW PLUG | 1 | ||
| R909435516 | SPRING DISK | 1 | ||
| R909435519 | CONNECTION PLATE | 1 | ||
| R909413035 | COMPRESSION SPRING | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909425556 | ADJUSTING BUSH | 1 | ||
| R909157317 | SNAP RING | 1 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUG | 1 | ||
| R909086517 | O-RING | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUT | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156706 | R-RING | 1 | ||
| R909156707 | ROD SEAL | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909157078 | SHIM RING | 1 | ||
| R909083343 | RETAINING RING | 1 | ||
| R909424407 | BACKUP RING | 1 |
