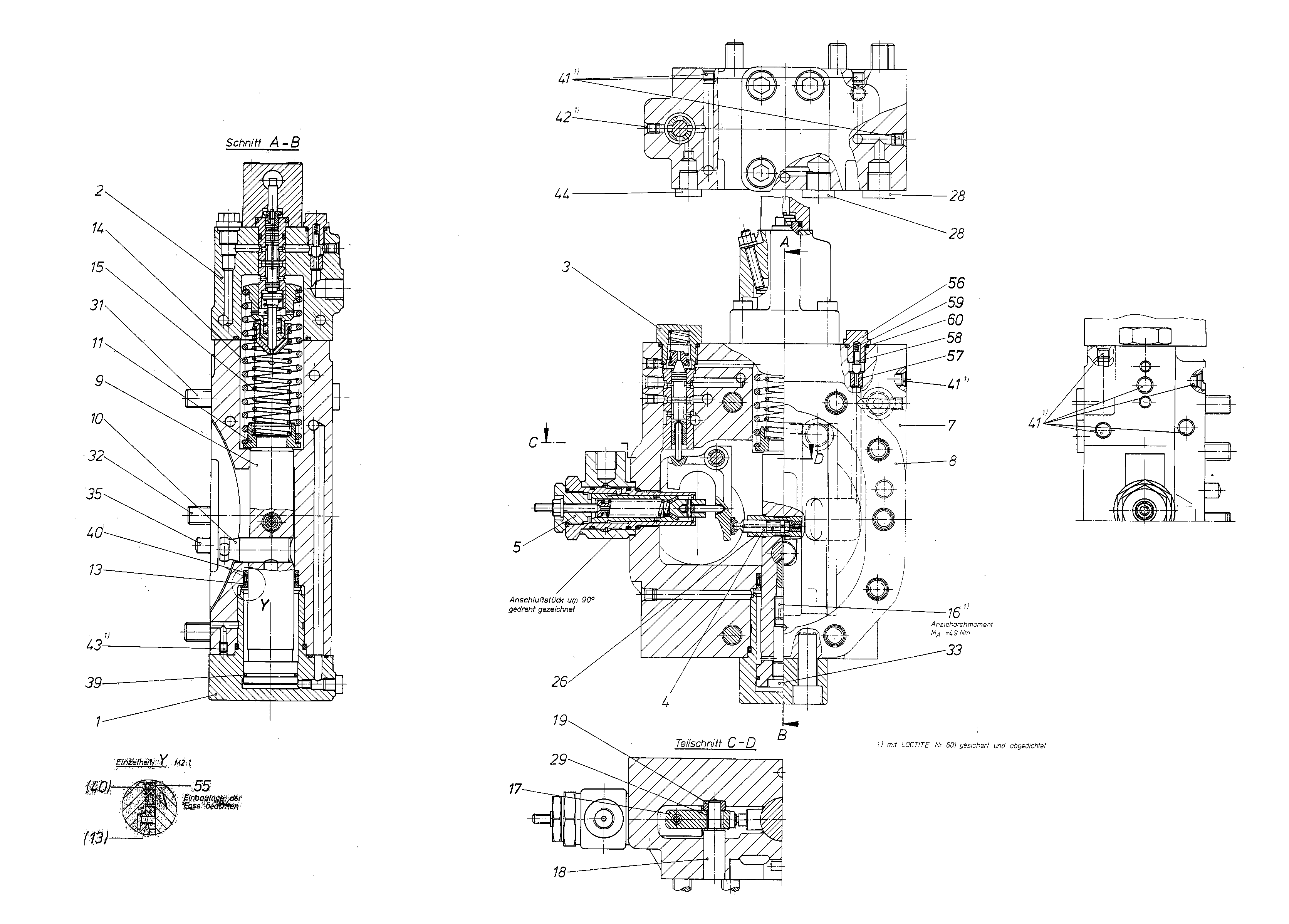

Baugruppe
CONTROLR909423872
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909412457 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909423798 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909415664 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419351 | PISTON PAD | 1 | ||
| R909423873 | ADJUSTING PART Stückliste der Baugruppe →L | 1 | ||
| R909426040 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024643 | SEALD | 1 | ||
| R909425504 | POSITIONING PISTON | 1 | ||
| R909425505 | POSITIONING STUD | 1 | ||
| R909417309 | SPRING DISK | 1 | ||
| R909422953 | RING | 1 | ||
| R909412452 | COMPRESSION SPRING | 1 | ||
| R909417313 | COMPRESSION SPRING | 1 | ||
| R909413014 | SETSCREW | 1 | ||
| R909422794 | LEVER | 1 | ||
| R909412688 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909425554 | ADJUSTING BUSH | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909156647 | R-RINGD | 1 | ||
| R909156541 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909422954 | WASHER | 1 | ||
| R902035187 | SCREW PLUG | 1 | ||
| R902209845 | BUSHING | 1 | ||
| R909426662 | BOLT | 1 | ||
| R909060383 | COMPRESSION SPRING | 1 | ||
| R909083749 | O-RINGD | 1 |
