Baugruppe

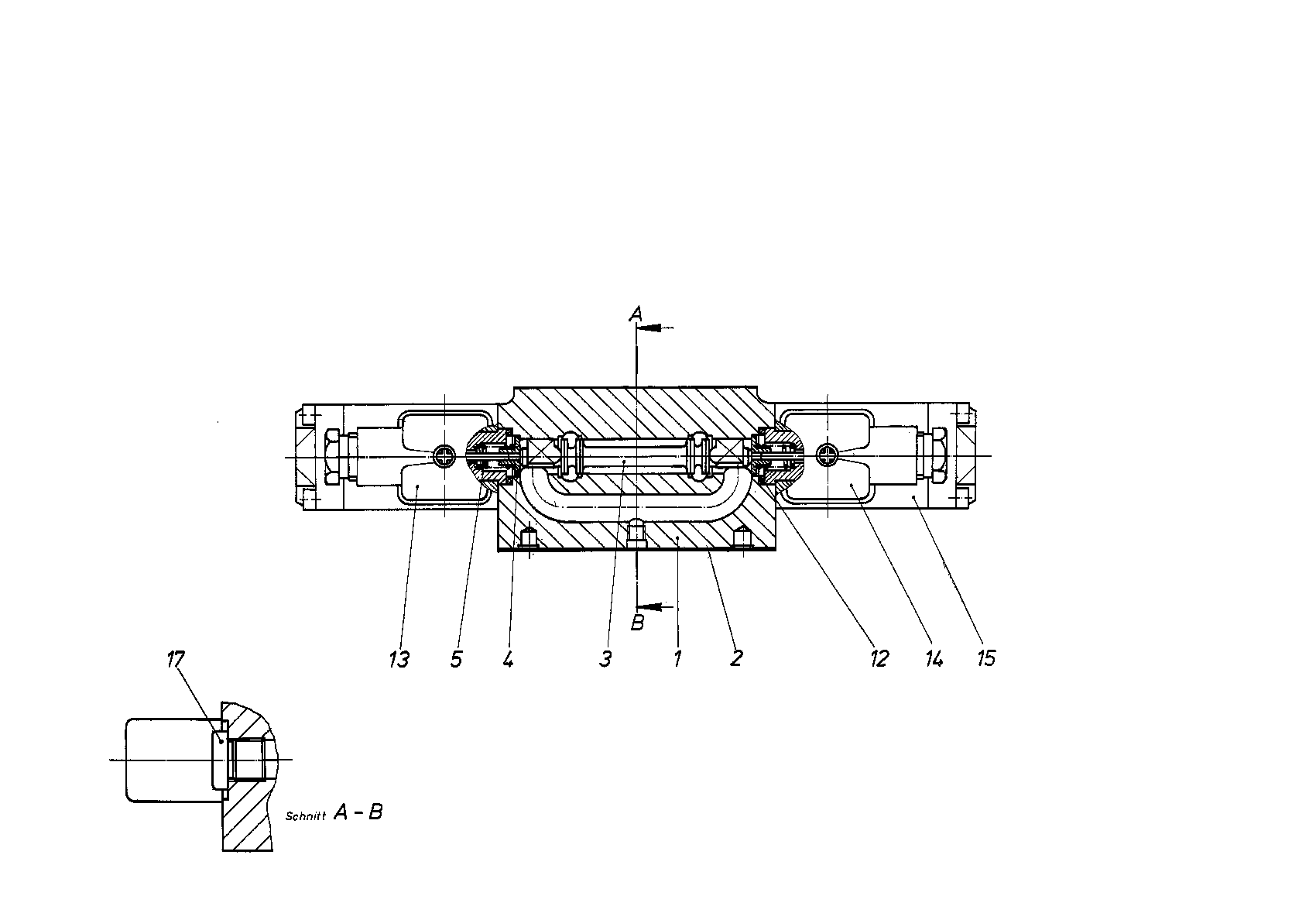

DIRECTIONAL-CONTROL VALVER909423988
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909425962 | VALVE HOUSING | 1 | |
| 2 | R909419288 | SEALD | 1 | |
| 3 | R909921478 | CONTROL PISTON | 1 | |
| 4 | R909400503 | SPRING DISK | 2 | |
| 5 | R909071362 | COMPRESSION SPRING | 2 | |
| R909083734 | O-RINGD | 2 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| 14 | R913022795 | PLUG-IN CONNECTOR | 1 | |
| R909428266 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 2 | ||
| 17 | R909151979 | SCREW PLUGD | 1 |
