Baugruppe

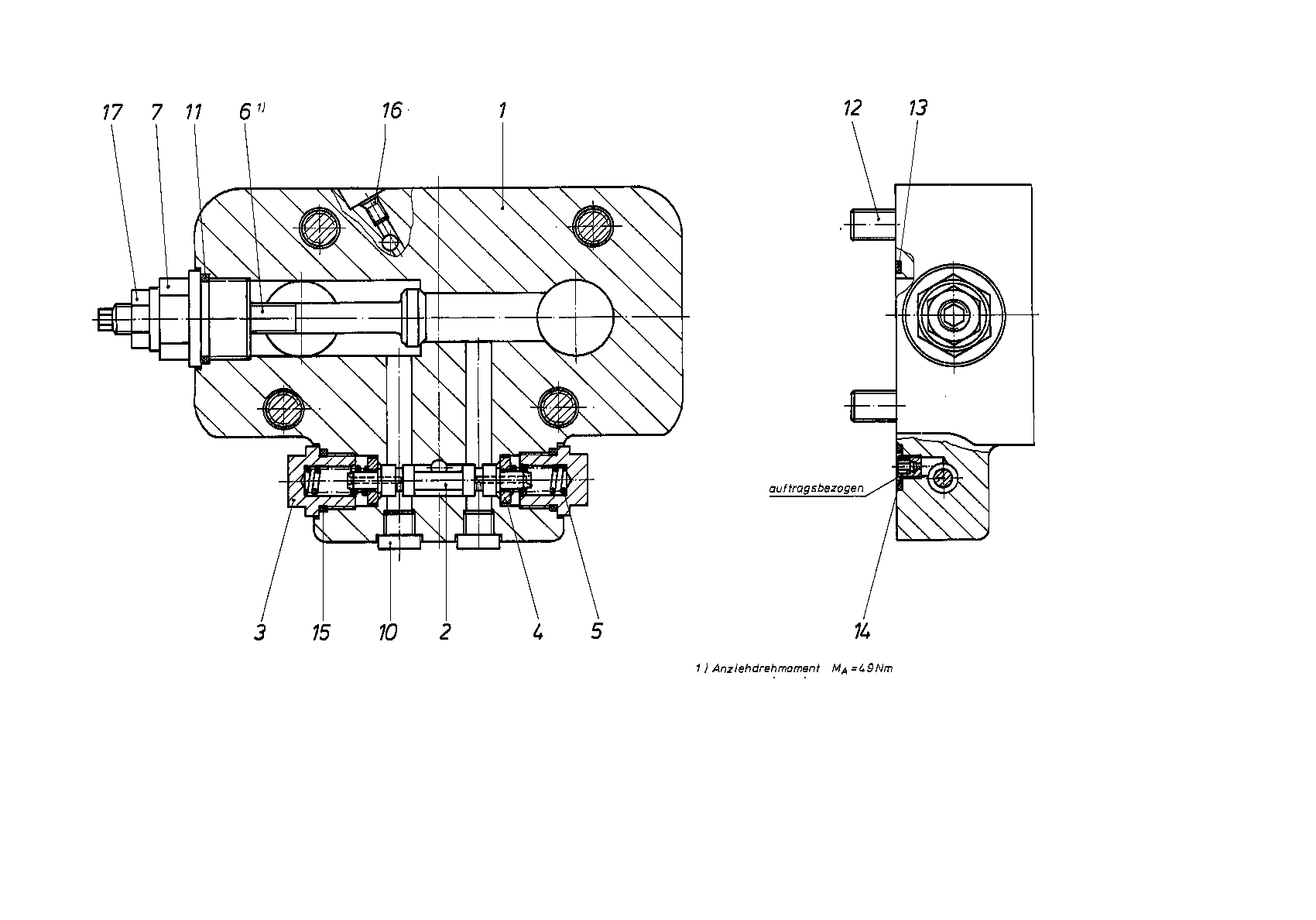

FLUSHING VALVER909424062
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909424059 | FLUSHING VALVE PLATE | 1 | |
| 2 | R909432410 | FLUSHING PISTON | 1 | |
| 3 | R909417111 | SCREW PLUG | 2 | |
| 4 | R909417112 | WASHER | 2 | |
| 5 | R909417113 | COMPRESSION SPRING | 2 | |
| R909424060 | BYPASS SCREW | 1 | ||
| R909424061 | SCREW PLUG | 1 | ||
| R909153364 | SCREW PLUGD | 2 | ||
| 11 | R909083761 | O-RINGD | 1 | |
| R909083092 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086731 | O-RINGD | 2 | ||
| 14 | R909083749 | O-RINGD | 2 | |
| R909086435 | O-RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 17 | R909152426 | SEALING NUTD | 1 |
