Baugruppe

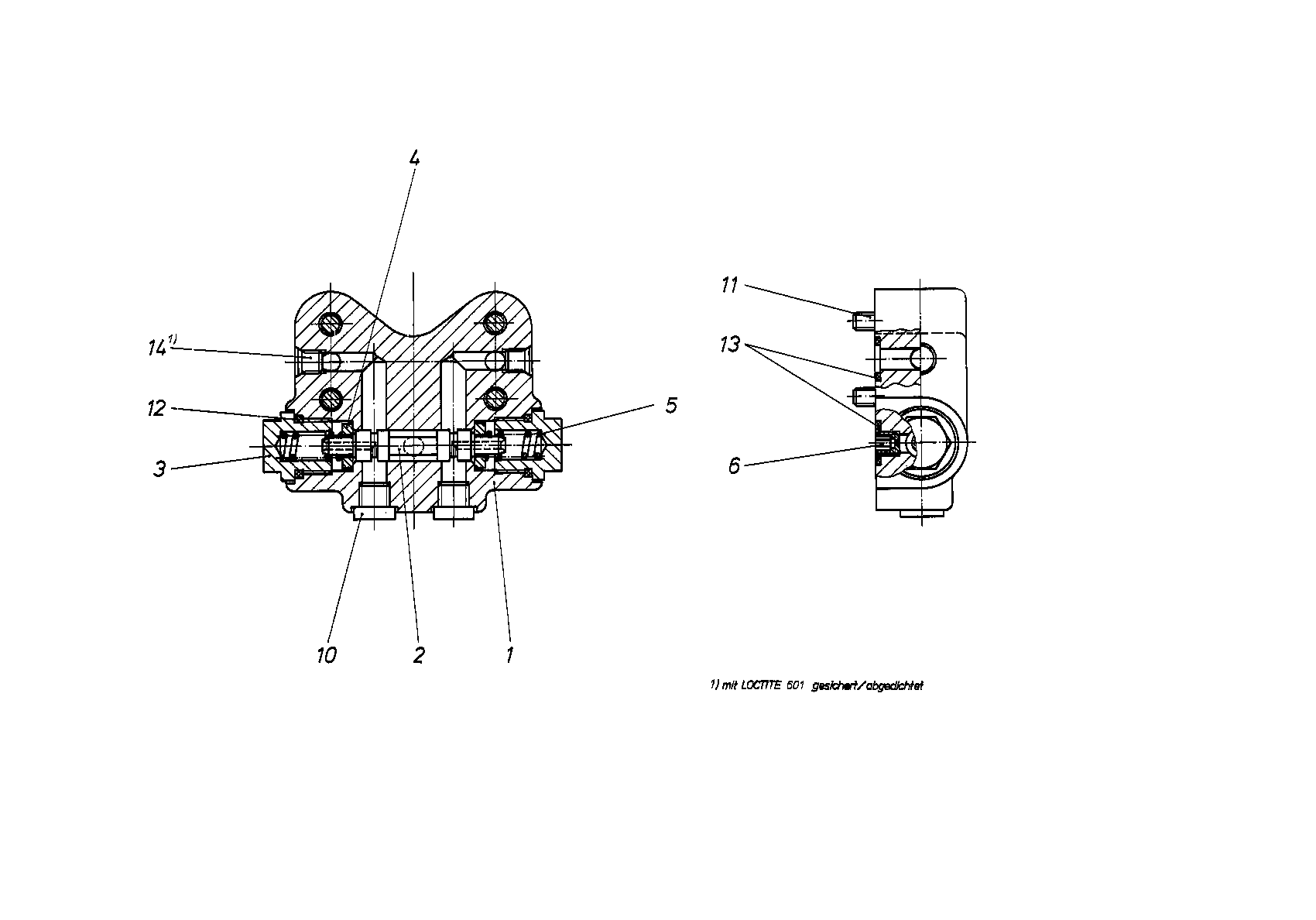

FLUSHING VALVER909424066
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909424064 | FLUSHING VALVE HOUSING | 1 | |
| R909432410 | FLUSHING PISTON | 1 | ||
| 3 | R909417111 | SCREW PLUG | 2 | |
| R909417112 | WASHER | 2 | ||
| 5 | R909417113 | COMPRESSION SPRING | 2 | |
| 6 | R909073588 | THROTTLE SCREW | 1 | |
| R909153364 | SCREW PLUGD | 2 | ||
| 11 | R909083024 | SOCKET HEAD CAP SCREW | 4 | |
| R909086435 | O-RINGD | 2 | ||
| R909083749 | O-RINGD | 3 | ||
| 14 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
