Baugruppe

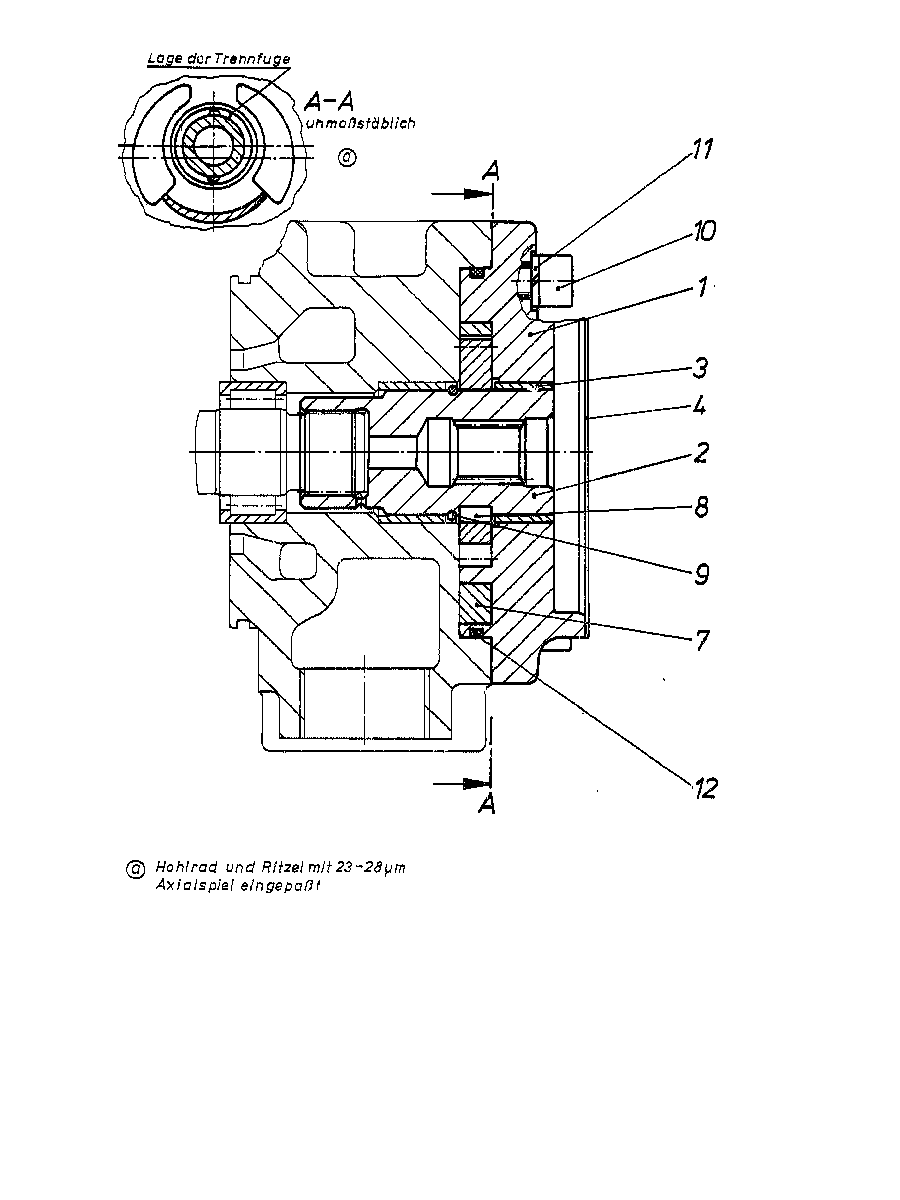

INTERNAL GEAR PUMPR909424343
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909439857 | INTERMEDIATE FLANGE | 1 | ||
| 2 | R909415567 | THROUGH DRIVE SHAFT | 1 | |
| 3 | R902260545 | BUSHING | 1 | |
| 4 | R909435535 | SEALD | 1 | |
| R902006253 | WHEEL SET | 1 | ||
| 8 | R902252407 | PARALLEL KEY | 1 | |
| 9 | R913057533 | SNAP RING | 1 | |
| 10 | R909083036 | SOCKET HEAD CAP SCREW | 4 | |
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| R909086679 | O-RINGD | 1 |
