Baugruppe

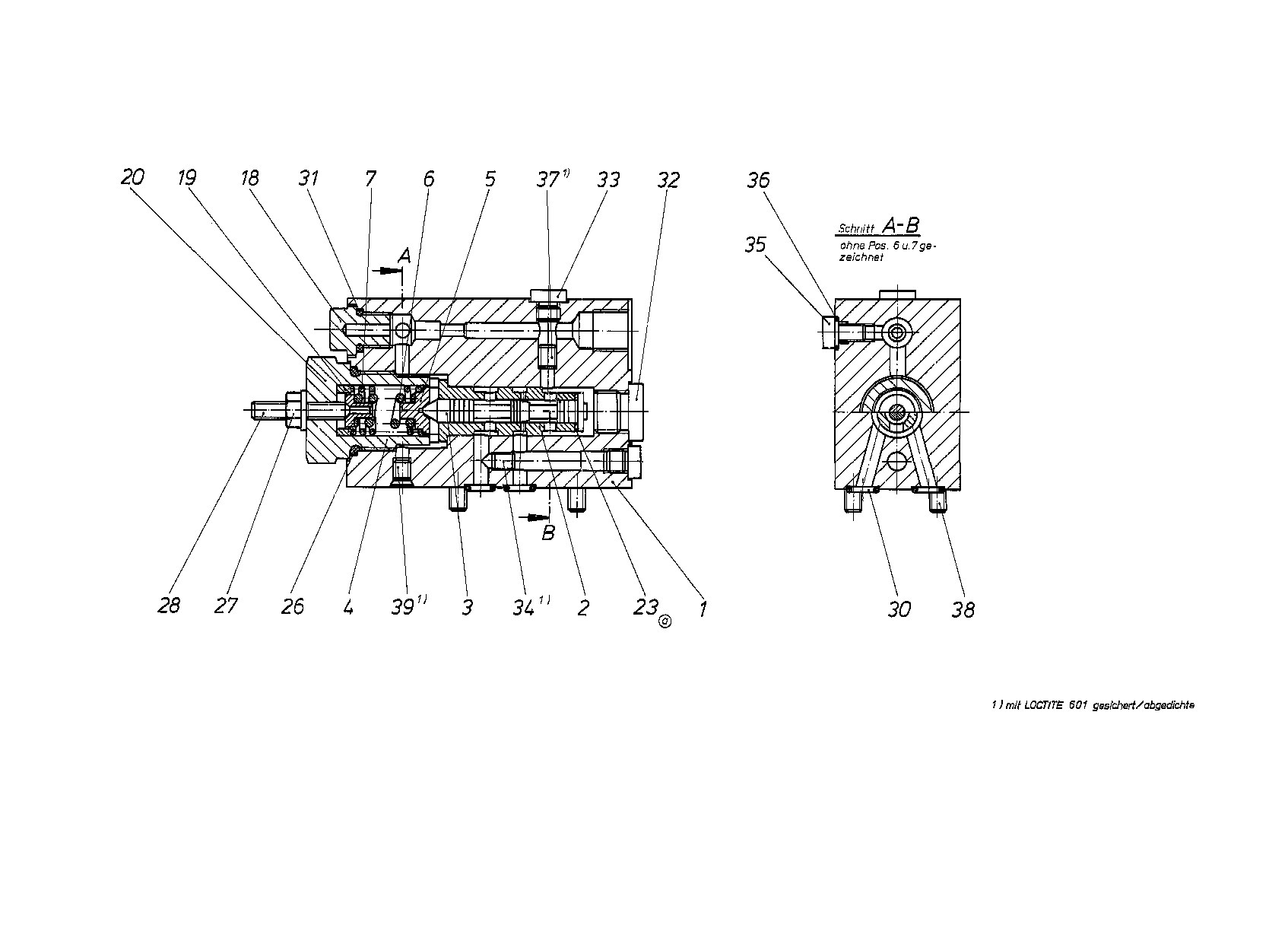

SEQUENCE VALVER909424589
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909419517 | HOUSING | 1 | ||
| R909418695 | CONTROL SLEEVE | 1 | ||
| R909418696 | CONTROL PISTON | 1 | ||
| R909418697 | SCREW PLUG | 1 | ||
| R909418698 | SPRING DISK | 1 | ||
| R909418693 | COMPRESSION SPRING | 1 | ||
| R909421483 | COMPRESSION SPRING | 1 | ||
| R902035187 | SCREW PLUG | 1 | ||
| R902221507 | SPRING DISK | 1 | ||
| R909422327 | RING | 1 | ||
| 23 | R909425353 | WASHER | 1 | |
| R909083761 | O-RINGD | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909086498 | O-RINGD | 4 | ||
| 31 | R909083749 | O-RINGD | 1 | |
| R909422328 | SCREW PLUG | 1 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| 34 | R909083491 | SETSCREW | 1 | |
| R909086465 | SOCKET HEAD CAP SCREW | 1 | ||
| R909084302 | SEAL RINGD | 1 | ||
| R909083491 | SETSCREW | 1 | ||
| R909085831 | SOCKET HEAD CAP SCREW | 4 | ||
| 39 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
