Baugruppe

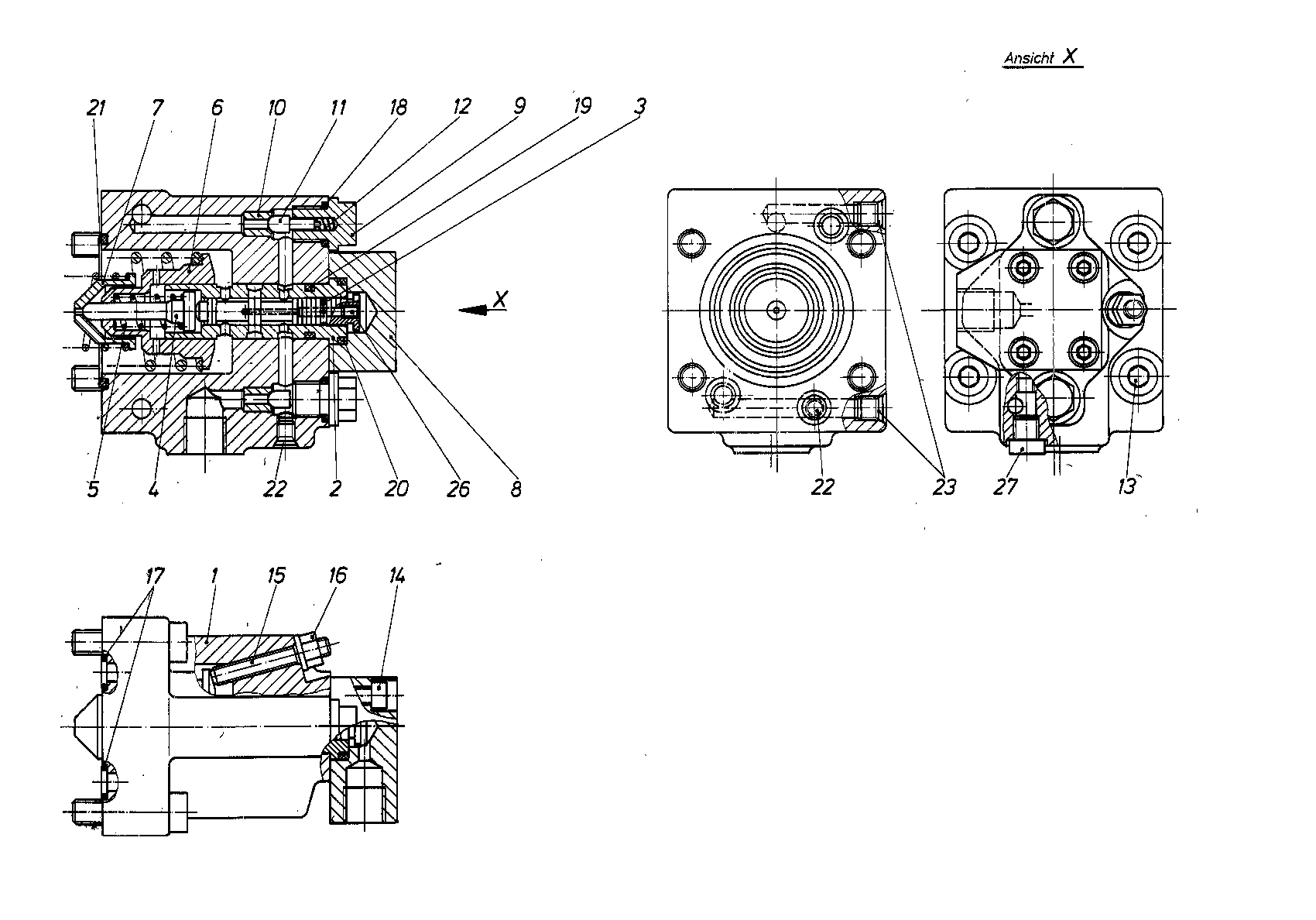

CONTROL MODULER909424721
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909424535 | HOUSING | 1 | |
| 2 | R909414074 | CONTROL SLEEVE | 1 | |
| 3 | R909414236 | CONTROL PISTON | 1 | |
| R909414235 | SPRING BOLT | 1 | ||
| 5 | R909431617 | COMPRESSION SPRING | 1 | |
| 6 | R909414330 | SPRING BUSH | 1 | |
| R909414331 | SPRING DISK | 1 | ||
| 8 | R909432652 | COVER | 1 | |
| 9 | R902035187 | SCREW PLUG | 2 | |
| R902209845 | BUSHING | 2 | ||
| 11 | R909426662 | BOLT | 2 | |
| R909060383 | COMPRESSION SPRING | 2 | ||
| 13 | R909083040 | SOCKET HEAD CAP SCREW | 4 | |
| 14 | R909083012 | SOCKET HEAD CAP SCREW | 4 | |
| R909154057 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| 17 | R909086332 | O-RINGD | 2 | |
| R909083749 | O-RINGD | 2 | ||
| R909083753 | O-RINGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| 21 | R902600656 | O-RINGD | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083488 | SETSCREW | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
