Baugruppe

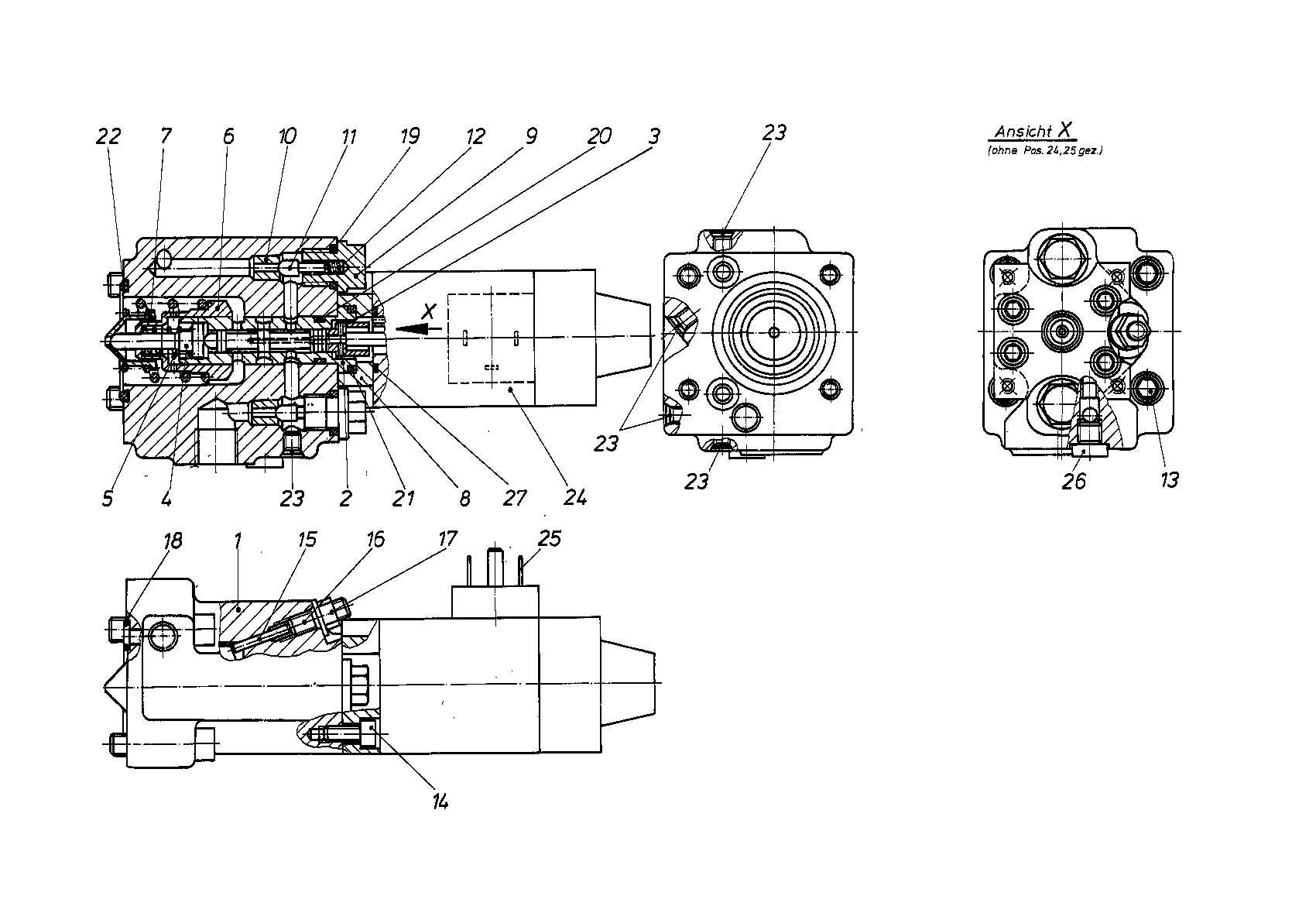

CONTROL MODULER909424725
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909424214 | HOUSING | 1 | ||
| R909416343 | CONTROL SLEEVE | 1 | ||
| R909426264 | CONTROL PISTON | 1 | ||
| R909416337 | SPRING BOLT | 1 | ||
| R909416354 | COMPRESSION SPRING | 1 | ||
| R909417538 | SPRING BUSH | 1 | ||
| R909417539 | SPRING DISK | 1 | ||
| R909417861 | INTERMEDIATE PLATE | 1 | ||
| R902035187 | SCREW PLUG | 2 | ||
| R902209845 | BUSHING | 2 | ||
| R909426662 | BOLT | 2 | ||
| R909060383 | COMPRESSION SPRING | 2 | ||
| R909083023 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083009 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087693 | STRAIGHT PIN | 1 | ||
| R909086136 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086380 | O-RINGD | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909086729 | O-RINGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909083769 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909428283 | PROPORTIONAL SOLENOID Stückliste der Baugruppe →L | 1 | ||
| R913022795 | PLUG-IN CONNECTOR | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909083737 | O-RINGD | 1 |
