Baugruppe

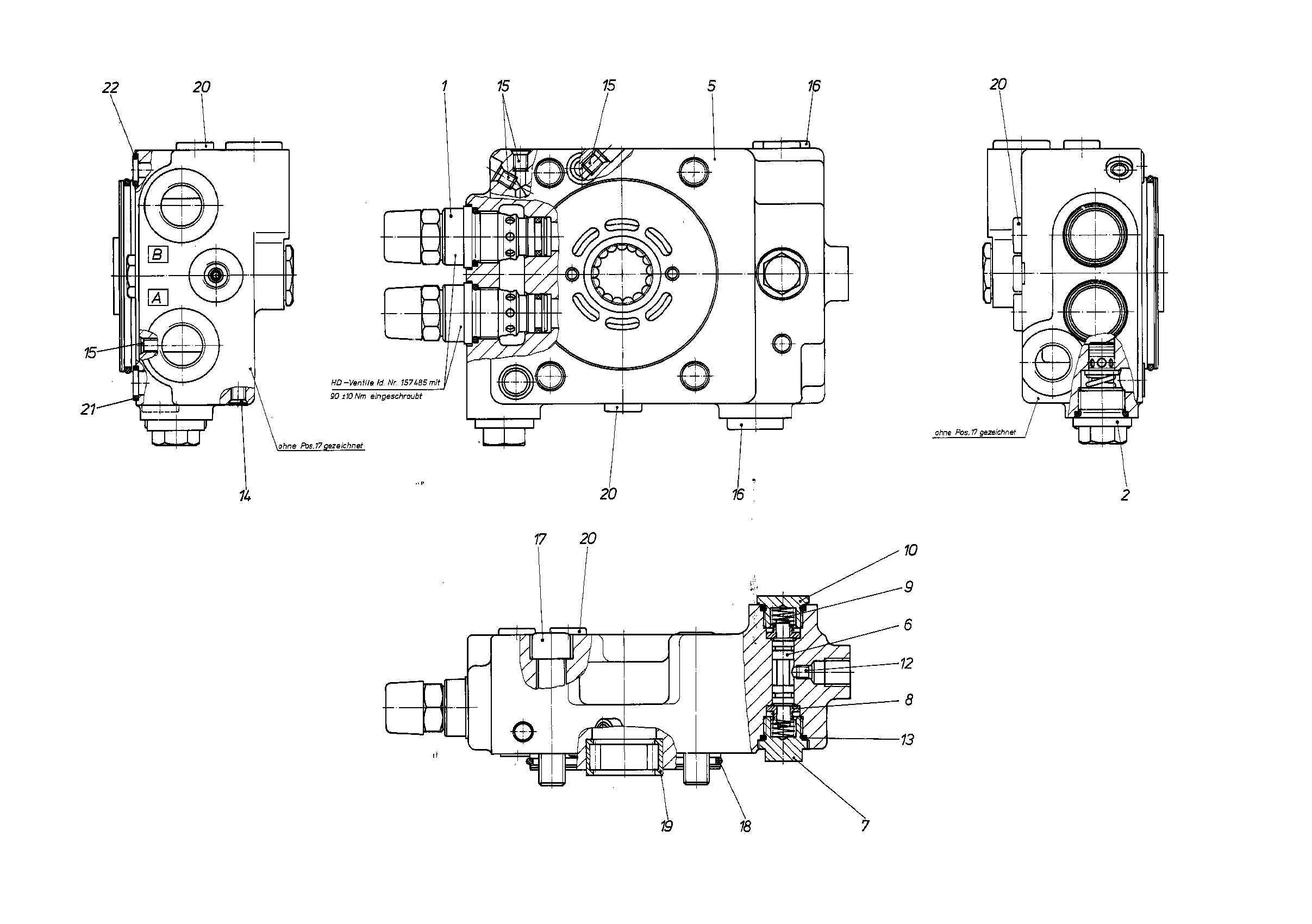

CONNECTION PLATER909427145
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902603802 | DELIVERY-VALVE ASSEMBLY Stückliste der Baugruppe →L | 2 | ||
| 2 | R909415829 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | |
| 5 | R909426340 | CONNECTION PLATE | 1 | |
| R909426349 | FLUSHING PISTON | 1 | ||
| R909430960 | SCREW PLUG | 1 | ||
| R909430958 | SPRING DISK | 2 | ||
| 9 | R909430961 | COMPRESSION SPRING | 2 | |
| R909430959 | SCREW PLUG | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| 13 | R909086435 | O-RINGD | 2 | |
| 14 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 15 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R913011603 | SCREW PLUGD | 2 | ||
| 17 | R909153287 | SOCKET HEAD CAP SCREW | 4 | |
| 18 | R909085360 | O-RINGD | 1 | |
| 19 | R909153245 | CYL. ROLLER BEARING | 1 | |
| R909151692 | SCREW PLUGD | 5 | ||
| 21 | R909157083 | QUAD RINGD | 1 | |
| R909086332 | O-RINGD | 1 |
