Baugruppe

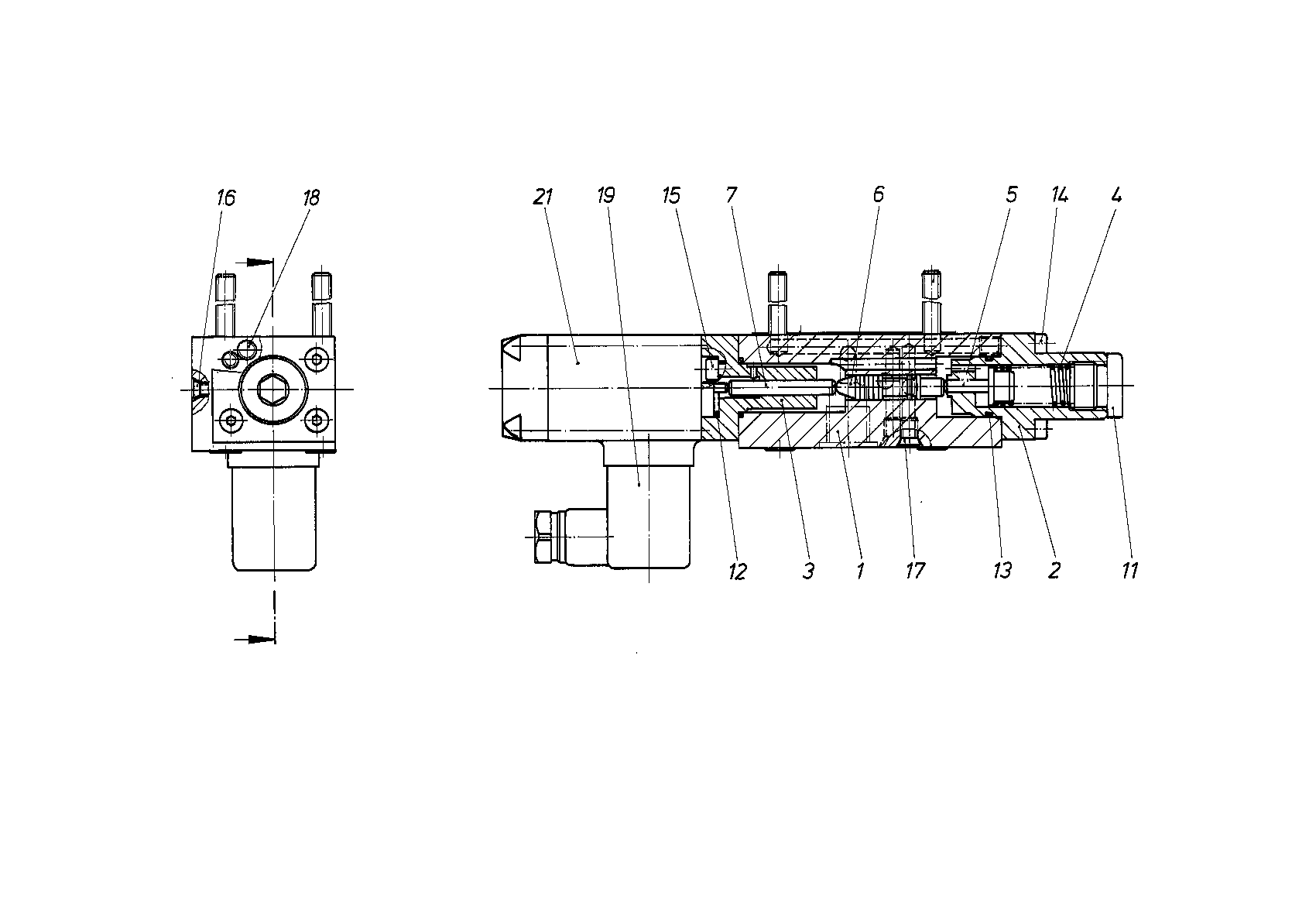

UNLOADING VALVER909427230
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909426523 | HOUSING | 1 | |
| R909426525 | SPRING HOUSING | 1 | ||
| 3 | R909426531 | MOUNTING FLANGE | 1 | |
| 4 | R909426534 | COMPRESSION SPRING | 1 | |
| 5 | R909426532 | SPRING BOLT | 1 | |
| R909405777 | CONTROL PISTON | 1 | ||
| 7 | R909426533 | PISTON | 1 | |
| R909153816 | SCREW PLUG | 1 | ||
| R909083734 | O-RINGD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| 14 | R909083004 | SOCKET HEAD CAP SCREW | 4 | |
| R909083003 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083490 | SETSCREW | 1 | ||
| R913022796 | PLUG-IN CONNECTOR | 1 | ||
| 21 | R909428265 | SWITCHING SOLENOID Stückliste der Baugruppe →L | 1 |
