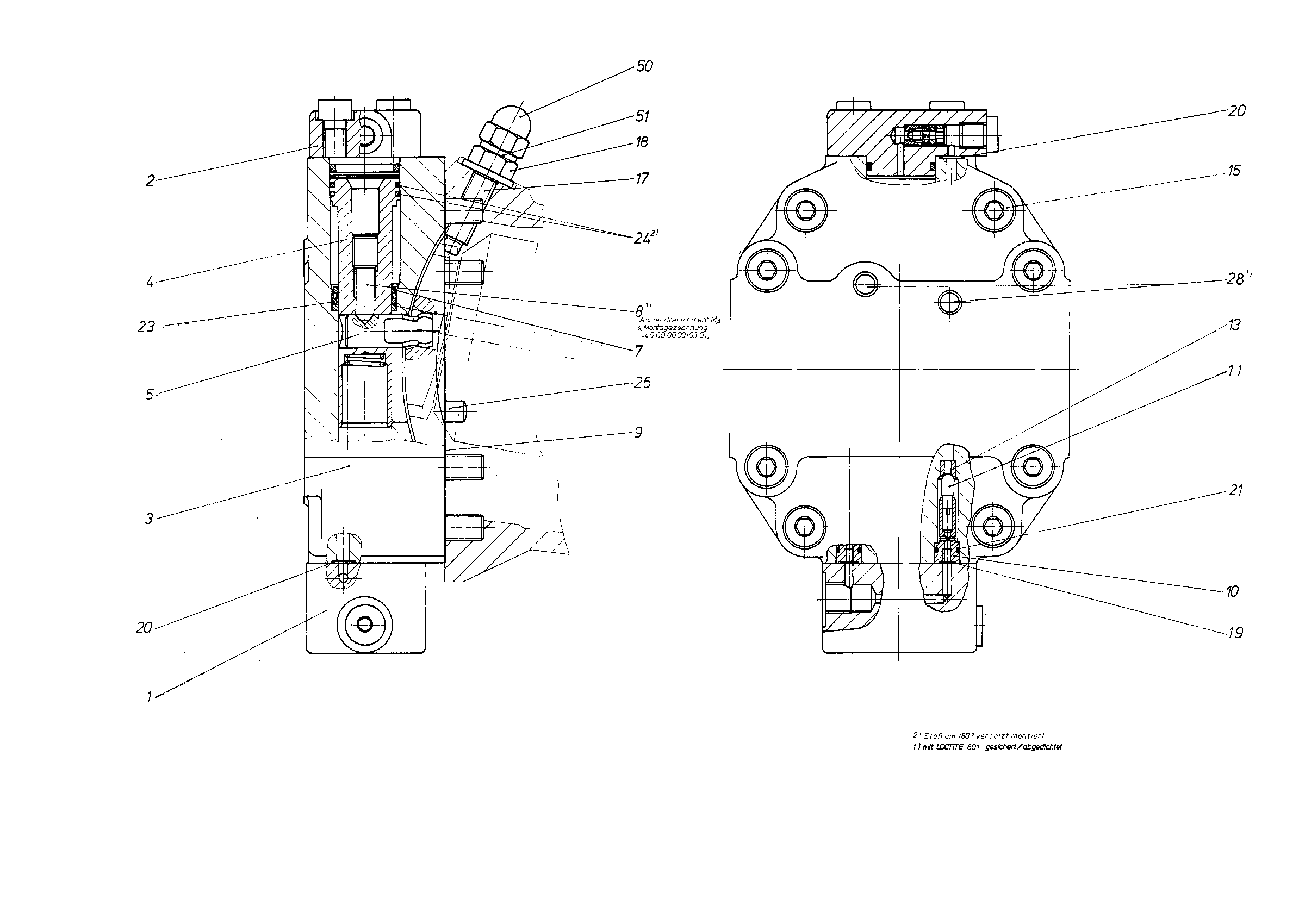

Baugruppe
CONTROLR909427244
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909427246 | CONTROL PART Stückliste der Baugruppe →L | 1 | |
| 2 | R909427245 | COVER Stückliste der Baugruppe →L | 1 | |
| 3 | R909422907 | COVER PLATE | 1 | |
| R909422908 | POSITIONING PISTON | 1 | ||
| 5 | R909422909 | POSITIONING STUD | 1 | |
| R909422901 | BACKUP RING | 2 | ||
| 8 | R909445056 | SETSCREW | 1 | |
| 9 | R902011854 | SEALD | 1 | |
| 10 | R909422896 | VALVE GUIDE | 2 | |
| 11 | R909426662 | BOLT | 2 | |
| 13 | R902209845 | BUSHING | 2 | |
| R909083044 | SOCKET HEAD CAP SCREW | 8 | ||
| 17 | R909446875 | SETSCREW Stückliste der Baugruppe →L | 1 | |
| 18 | R909152707 | SEALING NUTD | 1 | |
| 19 | R909157248 | O-RINGD | 2 | |
| 20 | R909087877 | O-RINGD | 3 | |
| 21 | R909087877 | O-RINGD | 2 | |
| 23 | R909157307 | ROD SEALD | 1 | |
| 24 | R909157306 | R-RINGD | 2 | |
| R913009667 | STRAIGHT PIN | 2 | ||
| 28 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909157408 | CAP NUT | 1 | ||
| 51 | R909152493 | SEAL RINGD | 1 |
