Baugruppe

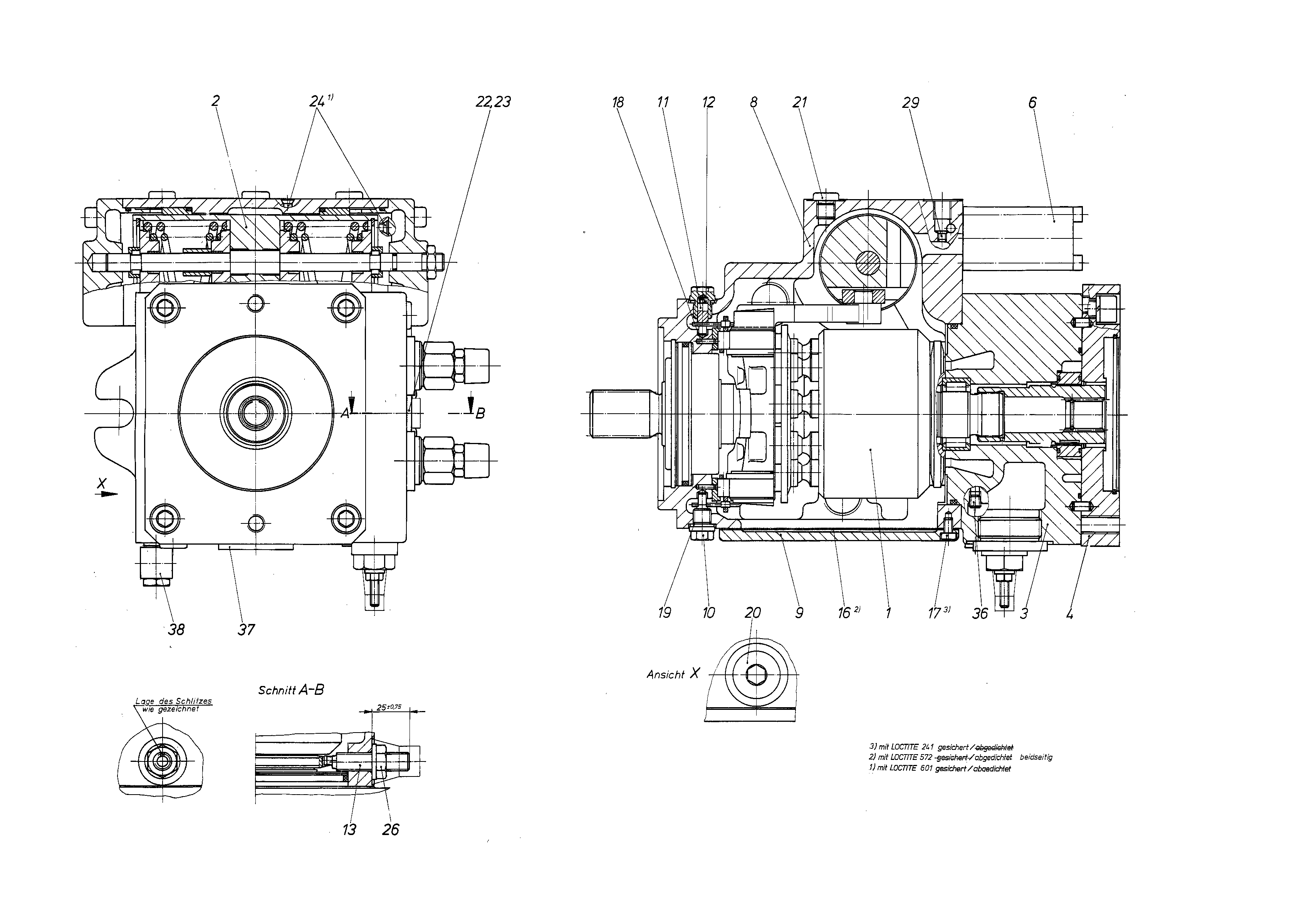

AXIAL-PISTON PUMPR909427280
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909427490 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909433502 | CONTROL Stückliste der Baugruppe →L | 1 | ||
| R909428180 | CONNECTION PLATE Stückliste der Baugruppe →L | 1 | ||
| R909428168 | BELL HOUSING Stückliste der Baugruppe →L | 1 | ||
| R909427267 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909417670 | HOUSING | 1 | ||
| R909430387 | HOUSING COVER | 1 | ||
| R909414228 | SCREW PLUG | 2 | ||
| R909449291 | PIVOT PIN | 2 | ||
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909435278 | SEALD | 1 | ||
| R909083017 | SOCKET HEAD CAP SCREW | 12 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909152726 | SEAL RINGD | 2 | ||
| R909153891 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909156495 | NOZZLE | 2 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R909152011 | THREADED FASTENER | 1 | ||
| 98 | R902221416 | SEAL KIT | 1 |
