Baugruppe

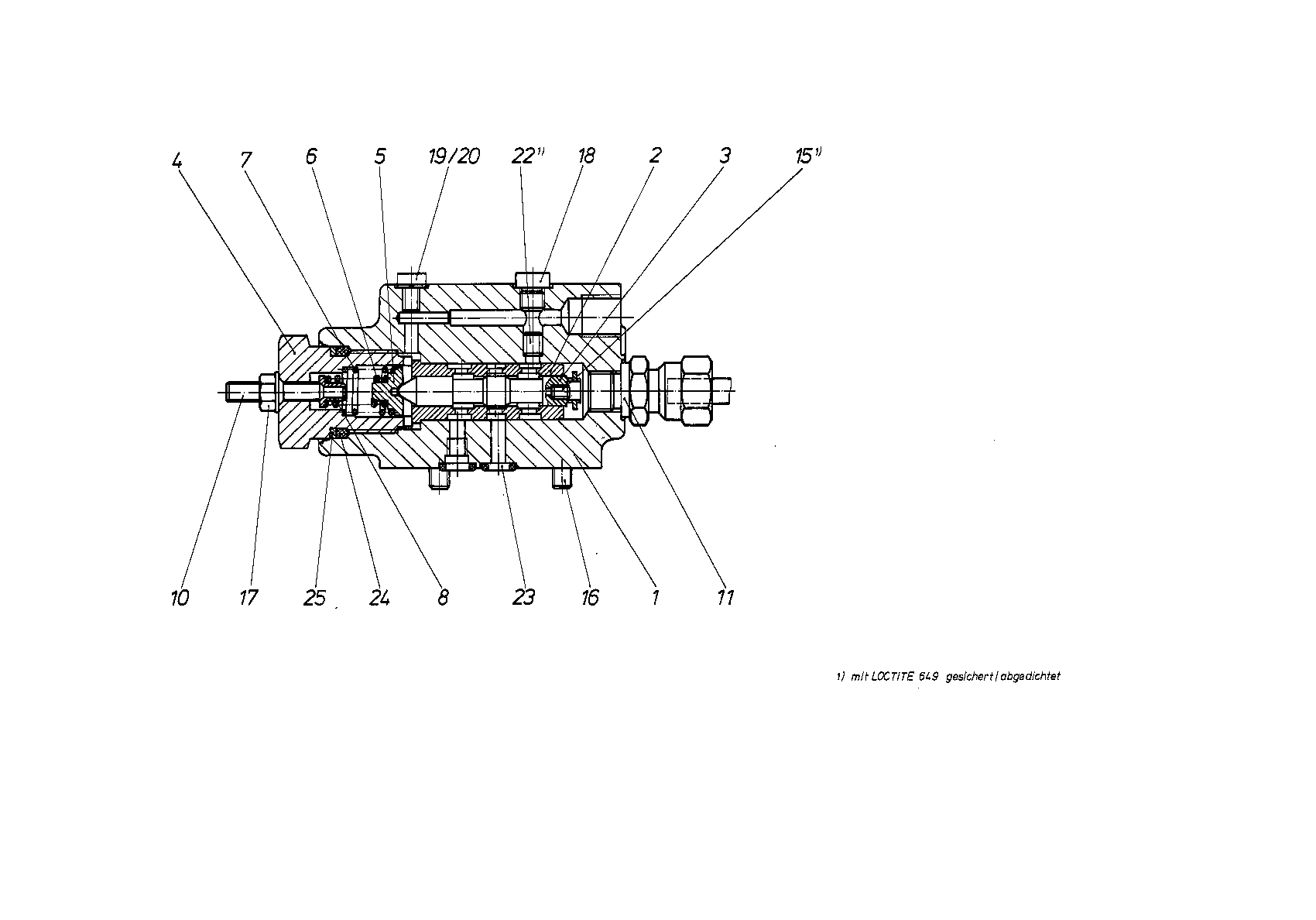

SEQUENCE VALVER909427407
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909432475 | HOUSING | 1 | ||
| R909431037 | CONTROL SLEEVE | 1 | ||
| R909424353 | CONTROL PISTON | 1 | ||
| 4 | R909432852 | SCREW PLUG | 1 | |
| 5 | R909418698 | SPRING DISK | 1 | |
| R909432906 | COMPRESSION SPRING | 1 | ||
| R909410091 | COMPRESSION SPRING | 1 | ||
| R902221507 | SPRING DISK | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909426785 | THREADED FASTENER | 1 | ||
| 15 | R909083488 | SETSCREW | 1 | |
| R909083030 | SOCKET HEAD CAP SCREW | 4 | ||
| 17 | R909152425 | SEALING NUTD | 1 | |
| R909154024 | SCREW PLUGD | 1 | ||
| 19 | R909086465 | SOCKET HEAD CAP SCREW | 1 | |
| 20 | R909084302 | SEAL RINGD | 1 | |
| 22 | R909831347 | PLUG | 1 | |
| 23 | R909086498 | O-RINGD | 4 | |
| 24 | R909083797 | O-RINGD | 1 | |
| 25 | R909087626 | BACKUP RINGD | 1 |
