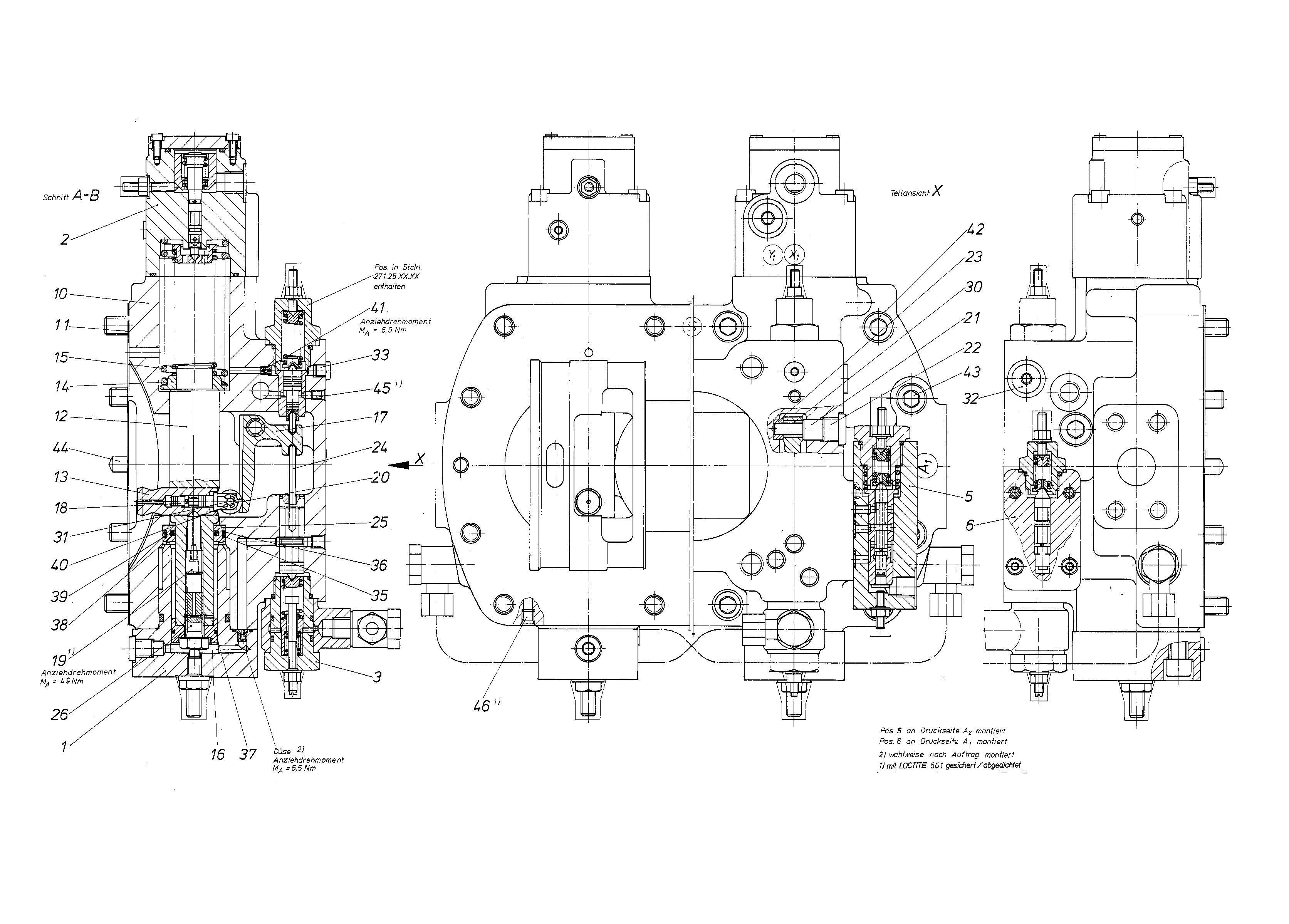

Baugruppe
CONTROLR909427439
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909442361 | COVER Stückliste der Baugruppe →L | 2 | ||
| R909429888 | CONTROL UNIT Stückliste der Baugruppe →L | 2 | ||
| R909427414 | CONTROL PART Stückliste der Baugruppe →L | 2 | ||
| R909427521 | SEQUENCE VALVE Stückliste der Baugruppe →L | 1 | ||
| 6 | R909423686 | SEQUENCE VALVE Stückliste der Baugruppe →L | 1 | |
| R909432321 | CONTROL HOUSING | 1 | ||
| 11 | R909650531 | SEALD | 1 | |
| R909426600 | POSITIONING PISTON | 2 | ||
| 13 | R909425731 | POSITIONING STUD | 2 | |
| R909430346 | SPRING DISK | 2 | ||
| 15 | R909425746 | COMPRESSION SPRING | 2 | |
| R909426605 | PISTON | 2 | ||
| 17 | R909425735 | LEVER | 2 | |
| R909425733 | MEASURING PISTON | 2 | ||
| 19 | R909413014 | SETSCREW | 2 | |
| 20 | R909411231 | BOLT | 2 | |
| 21 | R909426007 | BEARING BOLT | 2 | |
| 22 | R909425894 | SCREW PLUG | 2 | |
| R909412689 | BUSHING | 2 | ||
| 24 | R909426681 | PIN | 2 | |
| R909426606 | SEAL RING | 2 | ||
| 26 | R902031876 | HEXAGON SCREW | 2 | |
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| 31 | R909087327 | DEEP-GROOVE BALL BEARING | 2 | |
| 32 | R909151979 | SCREW PLUGD | 2 | |
| R909154024 | SCREW PLUGD | 2 | ||
| 35 | R909086347 | O-RINGD | 2 | |
| 36 | R909157667 | BACKUP RINGD | 2 | |
| 37 | R902602841 | STEEL SEALING RINGD | 2 | |
| R909157666 | ROD SEALD | 2 | ||
| R909087513 | O-RINGD | 2 | ||
| R909085810 | LOCKING WASHER | 4 | ||
| R909156492 | NOZZLE | 2 | ||
| 42 | R909083093 | SOCKET HEAD CAP SCREW | 8 | |
| R909083100 | SOCKET HEAD CAP SCREW | 4 | ||
| 44 | R913007909 | STRAIGHT PIN | 2 | |
| 45 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| 46 | R909831319 | DOUBLE BREAK-OFF PLUG | 5 | |
| 50 | R909156779 | THREADED FASTENER Stückliste der Baugruppe →L | 2 | |
| 51 | R909156790 | MALE CONNECTOR | 2 |
