Baugruppe

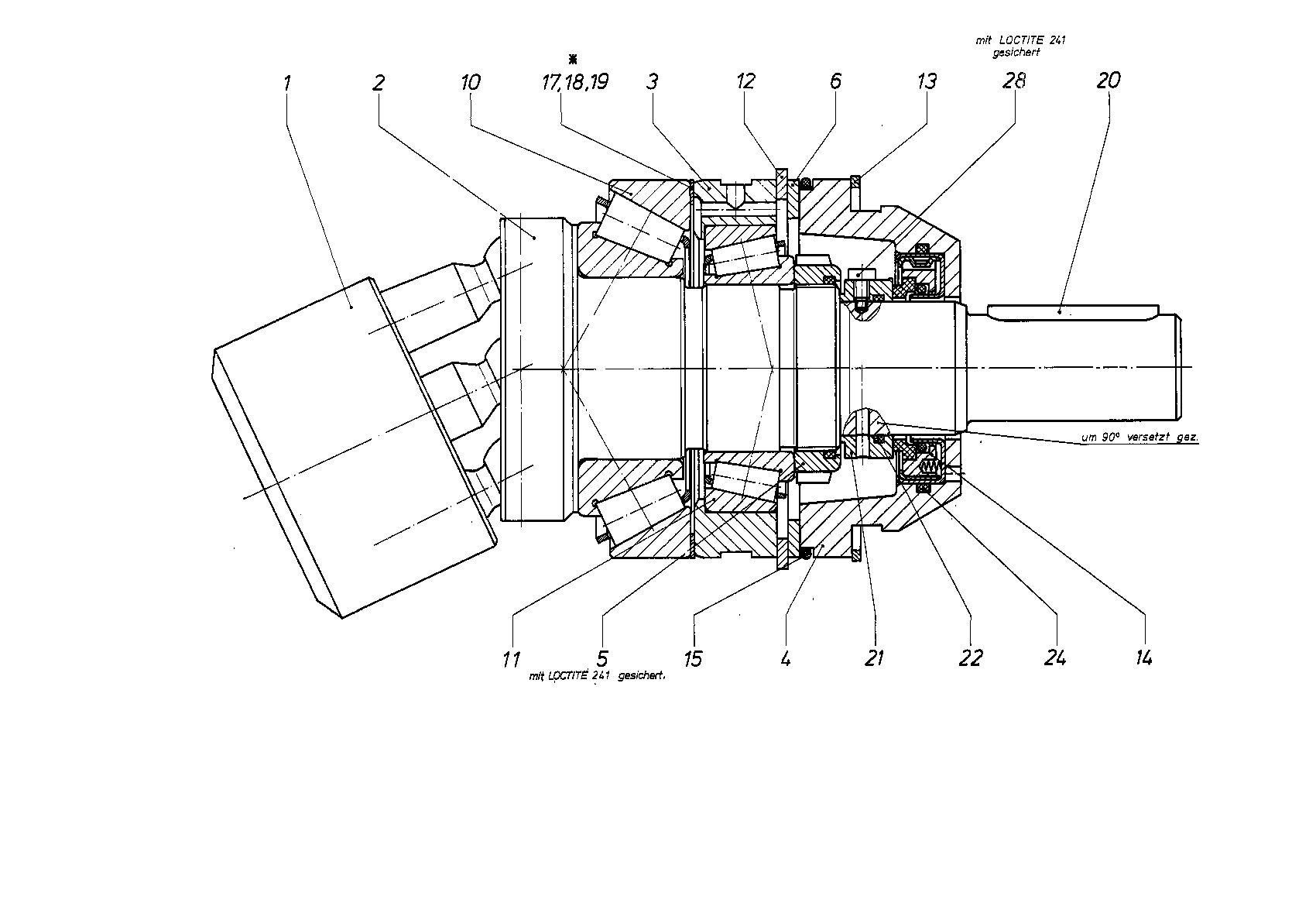

ROTARY GROUPR909427528
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909429554 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| R909426725 | DRIVE SHAFT | 1 | ||
| R909408872 | BEARING RING | 1 | ||
| R909425828 | LOCKING RING | 1 | ||
| 5 | R913037932 | SLOTTED ROUND NUT | 1 | |
| R909156267 | SUPPORTING DISC | 1 | ||
| R909154382 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154293 | TAPERED-ROLLER BEARING | 1 | |
| 12 | R909152143 | RETAINING RING | 1 | |
| R909154361 | SNAP RING | 1 | ||
| 14 | R909156469 | SLIDE RING SEALD | 1 | |
| R909156462 | O-RINGD | 1 | ||
| R909154359 | SHIM RING | 2 | ||
| R909154360 | SHIM RING | 1 | ||
| R909156296 | SHIM RING | 1 | ||
| 21 | R909425142 | COUNTER RINGD | 1 | |
| R909156674 | O-RINGD | 1 | ||
| R909154010 | O-RINGD | 1 | ||
| 28 | R909650099 | HEXAGON SCREW | 1 |
