Baugruppe

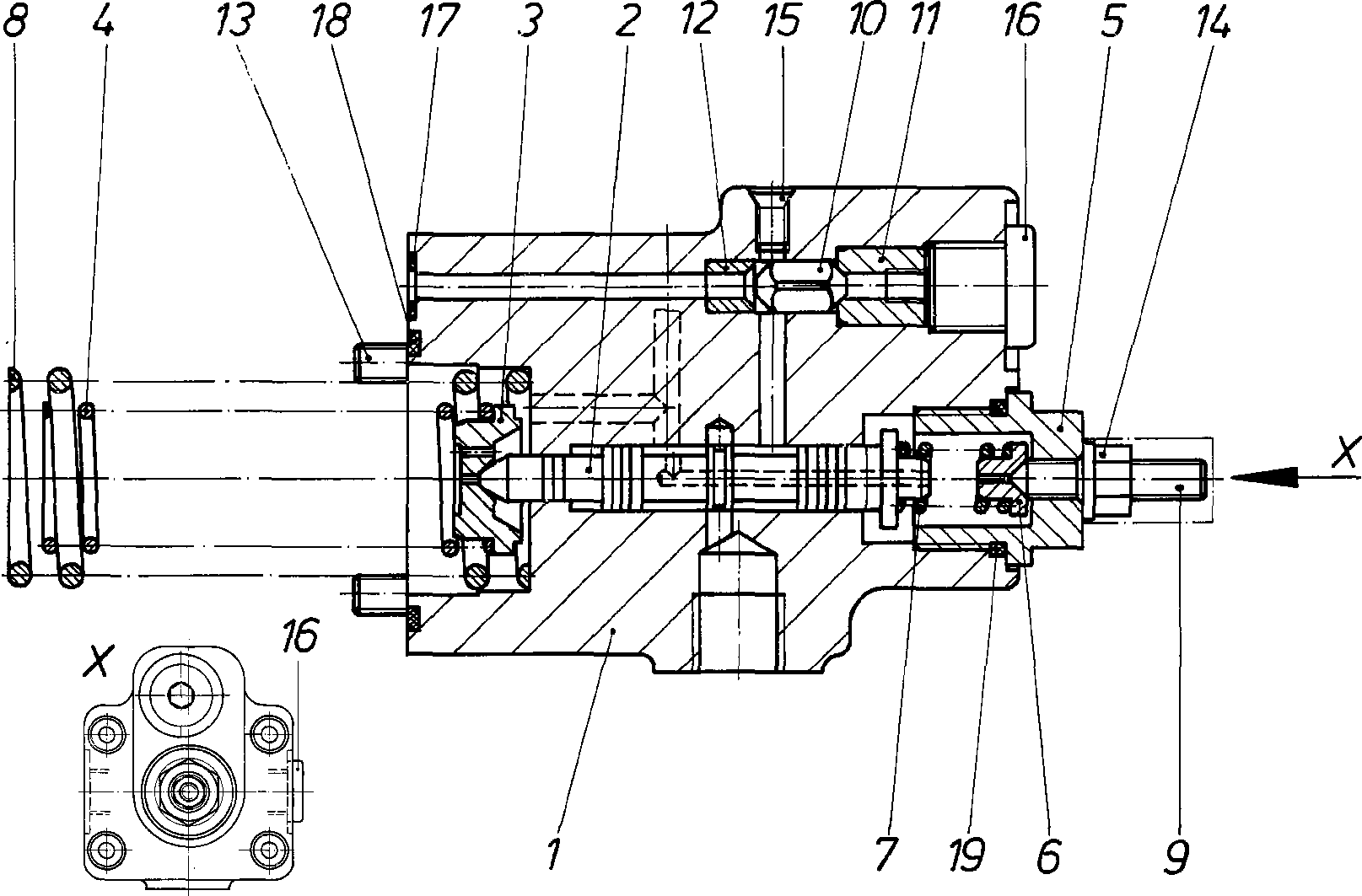

CONTROL MODULER909427536
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909426994 | HOUSING | 1 | ||
| 2 | R909422123 | CONTROL PISTON | 1 | |
| 3 | R909426995 | SPRING DISK | 1 | |
| 4 | R909422125 | COMPRESSION SPRING | 1 | |
| 5 | R909443089 | SCREW PLUG | 1 | |
| 6 | R909075975 | SPRING DISK | 1 | |
| 7 | R909650863 | COMPRESSION SPRING | 1 | |
| 8 | R909422148 | COMPRESSION SPRING | 1 | |
| 9 | R909425219 | SETSCREW | 1 | |
| 10 | R909422427 | VALVE CONE | 1 | |
| 11 | R909422428 | BUSHING | 1 | |
| 12 | R909415815 | BUSHING | 1 | |
| 13 | R909085700 | SOCKET HEAD CAP SCREW | 4 | |
| R909152425 | SEALING NUTD | 1 | ||
| 15 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909151979 | SCREW PLUGD | 2 | ||
| 17 | R909086380 | O-RINGD | 1 | |
| 18 | R909086334 | O-RINGD | 1 | |
| 19 | R909083758 | O-RINGD | 1 |
