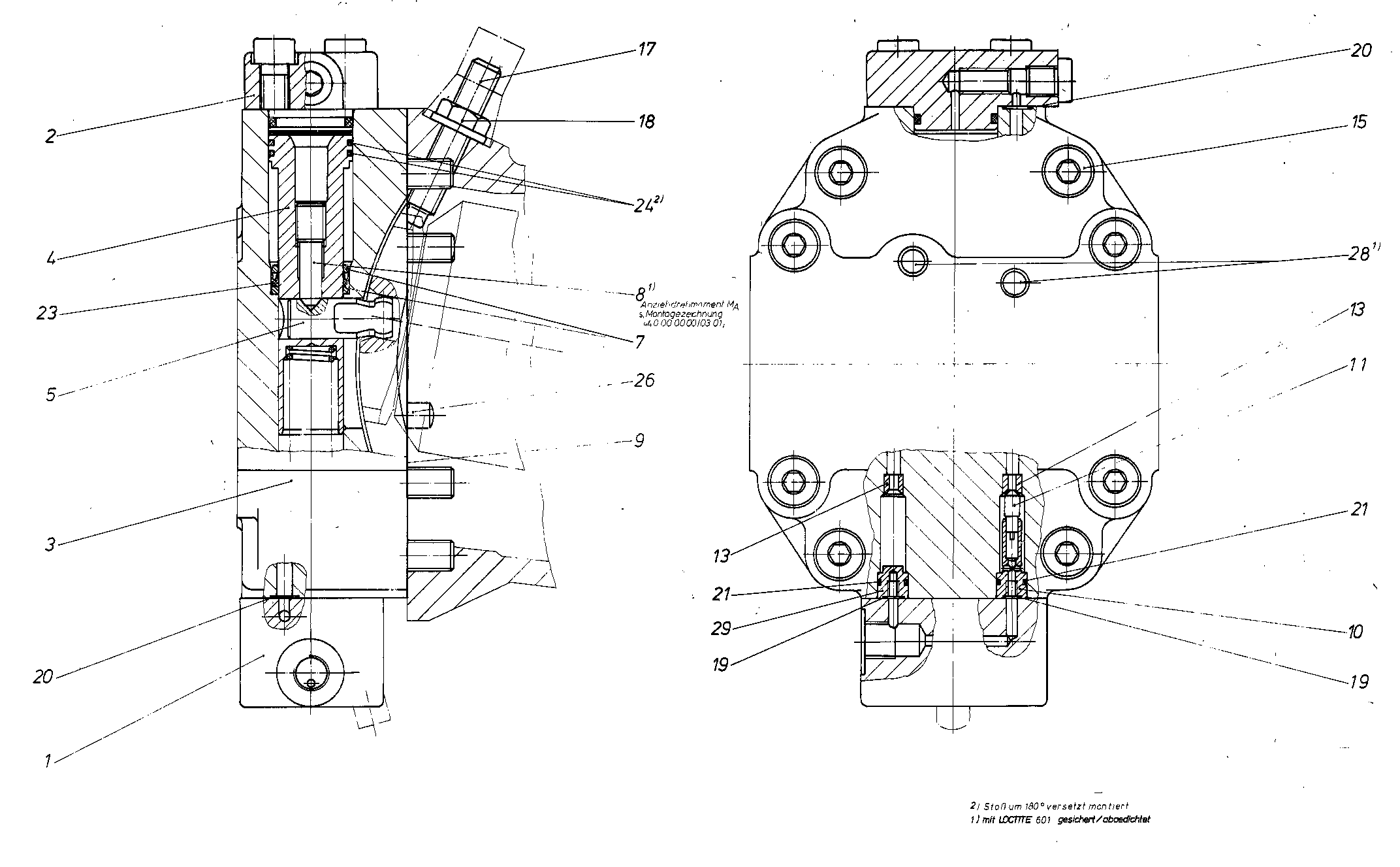

Baugruppe
CONTROLR909427652
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909420686 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909423090 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909422942 | COVER PLATE | 1 | ||
| R909422948 | POSITIONING PISTON | 1 | ||
| R909422949 | POSITIONING STUD | 1 | ||
| R909422950 | BACKUP RING | 2 | ||
| R909445016 | SETSCREW | 1 | ||
| R902011855 | SEALD | 1 | ||
| R902075344 | VALVE GUIDE | 1 | ||
| R909426662 | BOLT | 1 | ||
| R902209845 | BUSHING | 1 | ||
| R909083097 | SOCKET HEAD CAP SCREW | 8 | ||
| R909446862 | SETSCREW Stückliste der Baugruppe →L | 1 | ||
| R909152459 | SEALING NUTD | 1 | ||
| R913045157 | O-RINGD | 1 | ||
| R909086498 | O-RINGD | 3 | ||
| R909085709 | O-RINGD | 2 | ||
| 22 | R902602322 | BACKUP RING | 2 | |
| R909156540 | ROD SEALD | 1 | ||
| R902602841 | STEEL SEALING RINGD | 2 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902088569 | PLUG | 1 | ||
| 30 | R909084469 | O-RING | 1 |
