Baugruppe

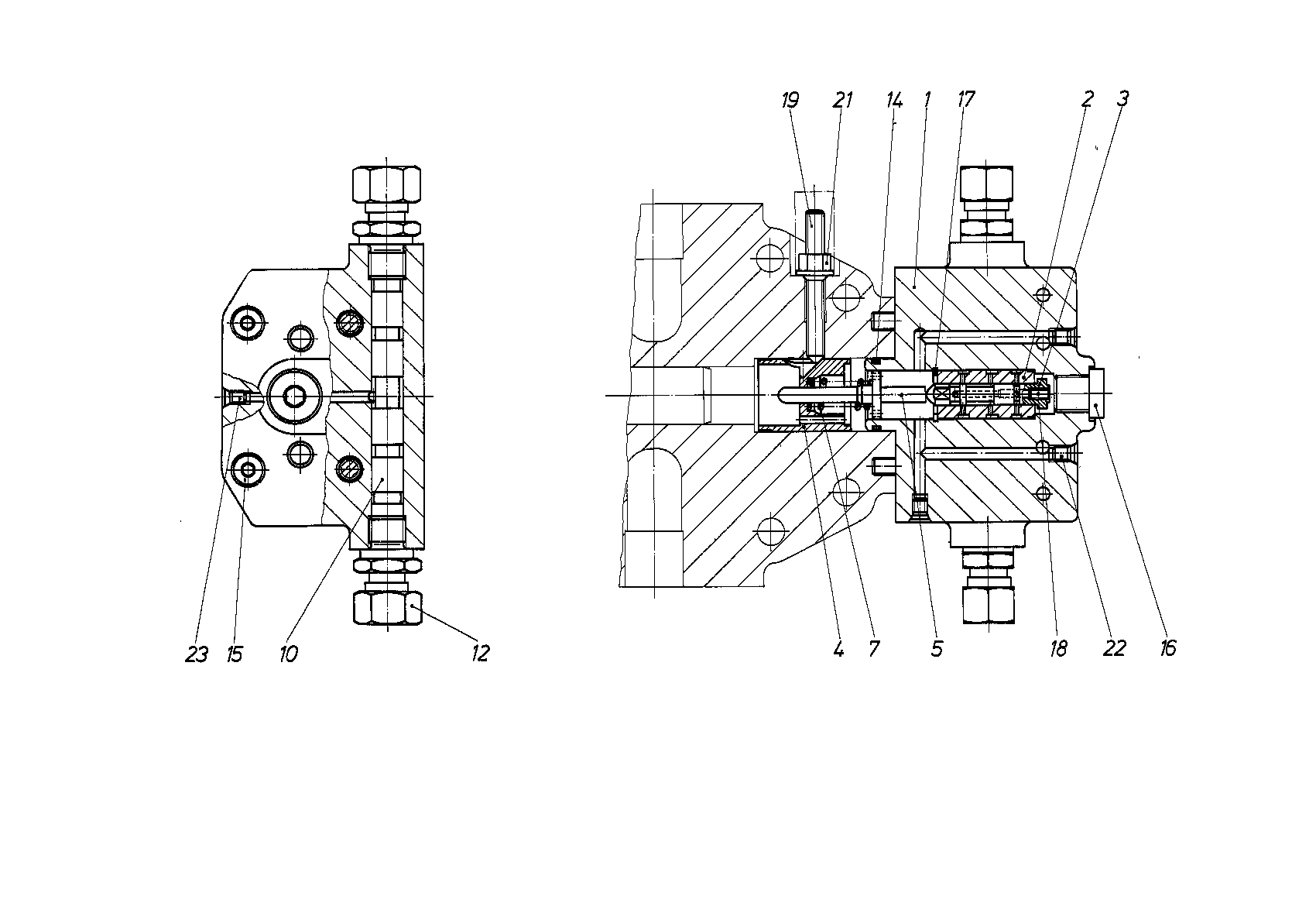

CONTROL PARTR909427670
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909430088 | CONTROL HOUSING | 1 | |
| 2 | R909420570 | CONTROL SLEEVE | 1 | |
| 3 | R902073975 | CONTROL PISTON | 1 | |
| R909445267 | ADJUSTING BUSHING | 1 | ||
| R909425551 | SPRING BOLT | 1 | ||
| 7 | R909412398 | COMPRESSION SPRING | 1 | |
| 10 | R909430094 | SLIDE | 1 | |
| R909409598 | THREADED FASTENER | 2 | ||
| 14 | R909086432 | O-RINGD | 1 | |
| 15 | R909083030 | SOCKET HEAD CAP SCREW | 4 | |
| 16 | R909151692 | SCREW PLUGD | 2 | |
| 17 | R909083381 | RETAINING RING | 1 | |
| 18 | R909083488 | SETSCREW | 1 | |
| 19 | R909439043 | SETSCREW | 1 | |
| 21 | R909152425 | SEALING NUTD | 1 | |
| 22 | R909831317 | DOUBLE BREAK-OFF PLUG | 10 | |
| 23 | R900078091 | DOUBLE BREAK-OFF PLUG | 2 |
