Baugruppe

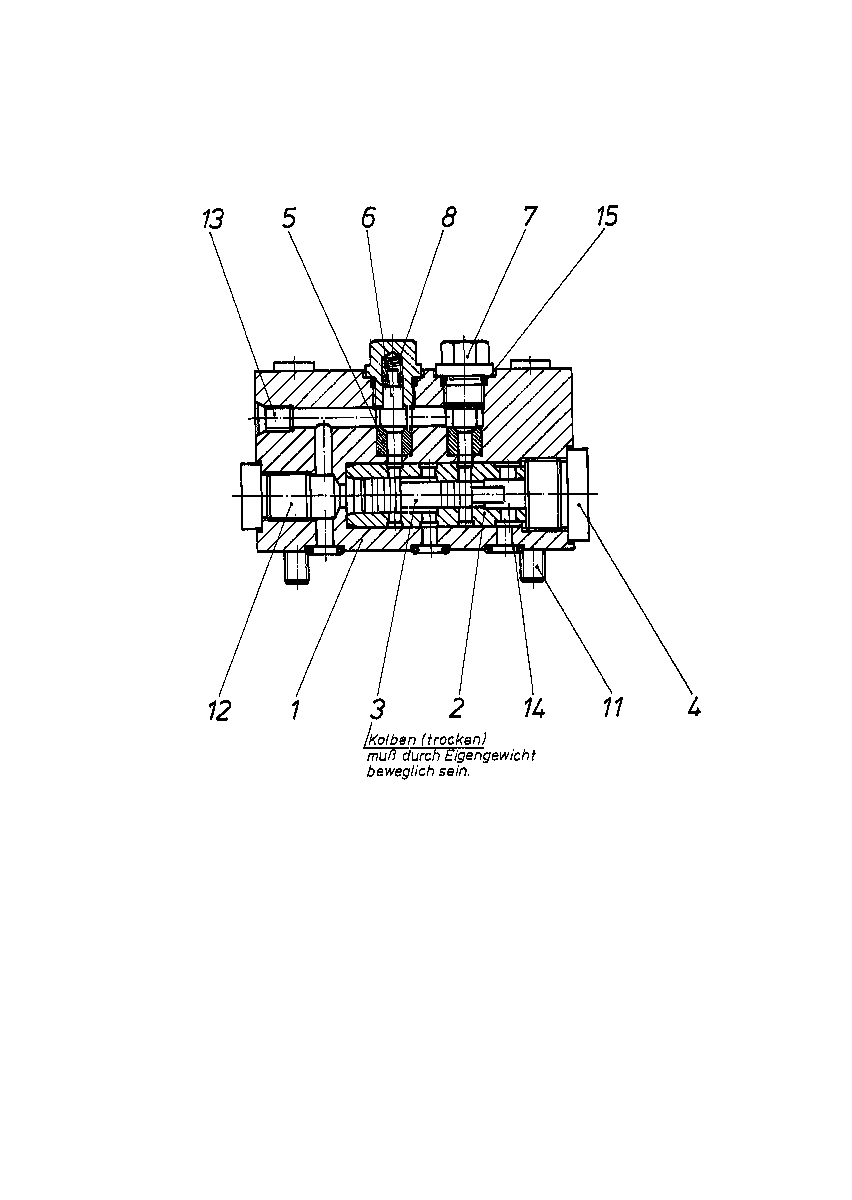

PRESSURE REGULATORR909427796
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909430335 | HOUSING | 1 | ||
| R909412333 | CONTROL SLEEVE | 1 | ||
| R909412334 | CONTROL PISTON | 1 | ||
| 4 | R909412335 | SCREW PLUG | 1 | |
| R909415815 | BUSHING | 2 | ||
| R909415579 | VALVE CONE | 2 | ||
| R909415580 | SCREW PLUG | 2 | ||
| 8 | R909060519 | COMPRESSION SPRING | 2 | |
| 11 | R909083028 | SOCKET HEAD CAP SCREW | 4 | |
| R909151692 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 14 | R909086380 | O-RINGD | 3 | |
| R909086498 | O-RINGD | 2 |
