Baugruppe

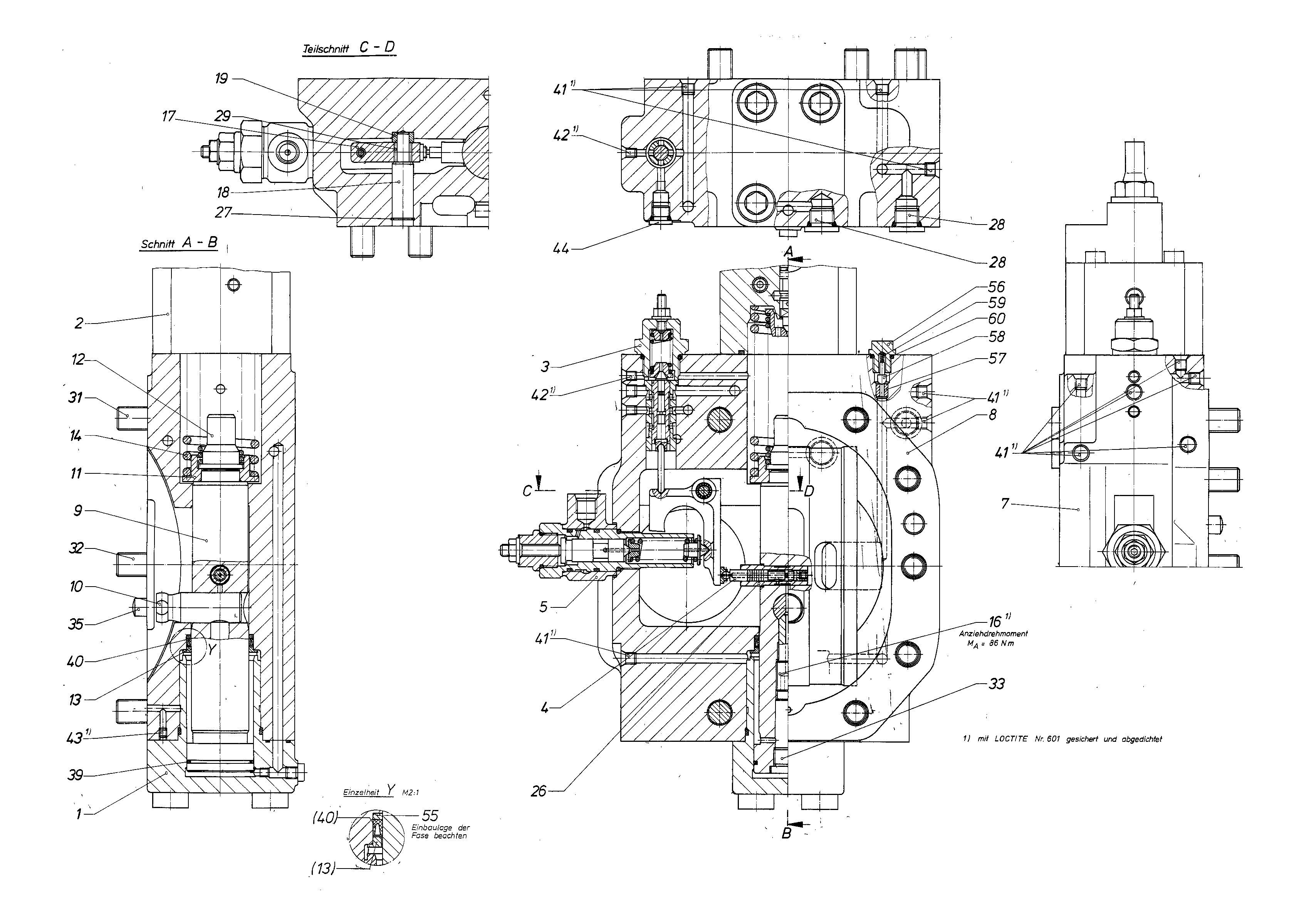

CONTROLR909428083
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909414915 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909428073 | CONTROL MODULE Stückliste der Baugruppe →L | 1 | ||
| R909419083 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909419353 | PISTON PAD | 1 | ||
| R909423879 | ADJUSTING PART Stückliste der Baugruppe →L | 1 | ||
| R909426016 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024644 | SEALD | 1 | ||
| R909425484 | POSITIONING PISTON | 1 | ||
| R909425485 | POSITIONING STUD | 1 | ||
| R909426039 | SPRING DISK | 1 | ||
| R909430569 | SPRING BOLT | 1 | ||
| R909424406 | RING | 1 | ||
| R909426025 | COMPRESSION SPRING | 1 | ||
| R909413697 | SETSCREW | 1 | ||
| R909422062 | LEVER | 1 | ||
| R909414913 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909425556 | ADJUSTING BUSH | 1 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083142 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909156706 | R-RINGD | 1 | ||
| R909156707 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909083489 | SETSCREW | 1 | ||
| R909154478 | SCREW PLUGD | 1 | ||
| R909424407 | BACKUP RING | 1 | ||
| R902035187 | SCREW PLUG | 1 | ||
| R902209845 | BUSHING | 1 | ||
| R909426662 | BOLT | 1 | ||
| R909060383 | COMPRESSION SPRING | 1 | ||
| R909083749 | O-RINGD | 1 | ||
| 69 | R909154024 | SCREW PLUGD | 1 |
