Baugruppe

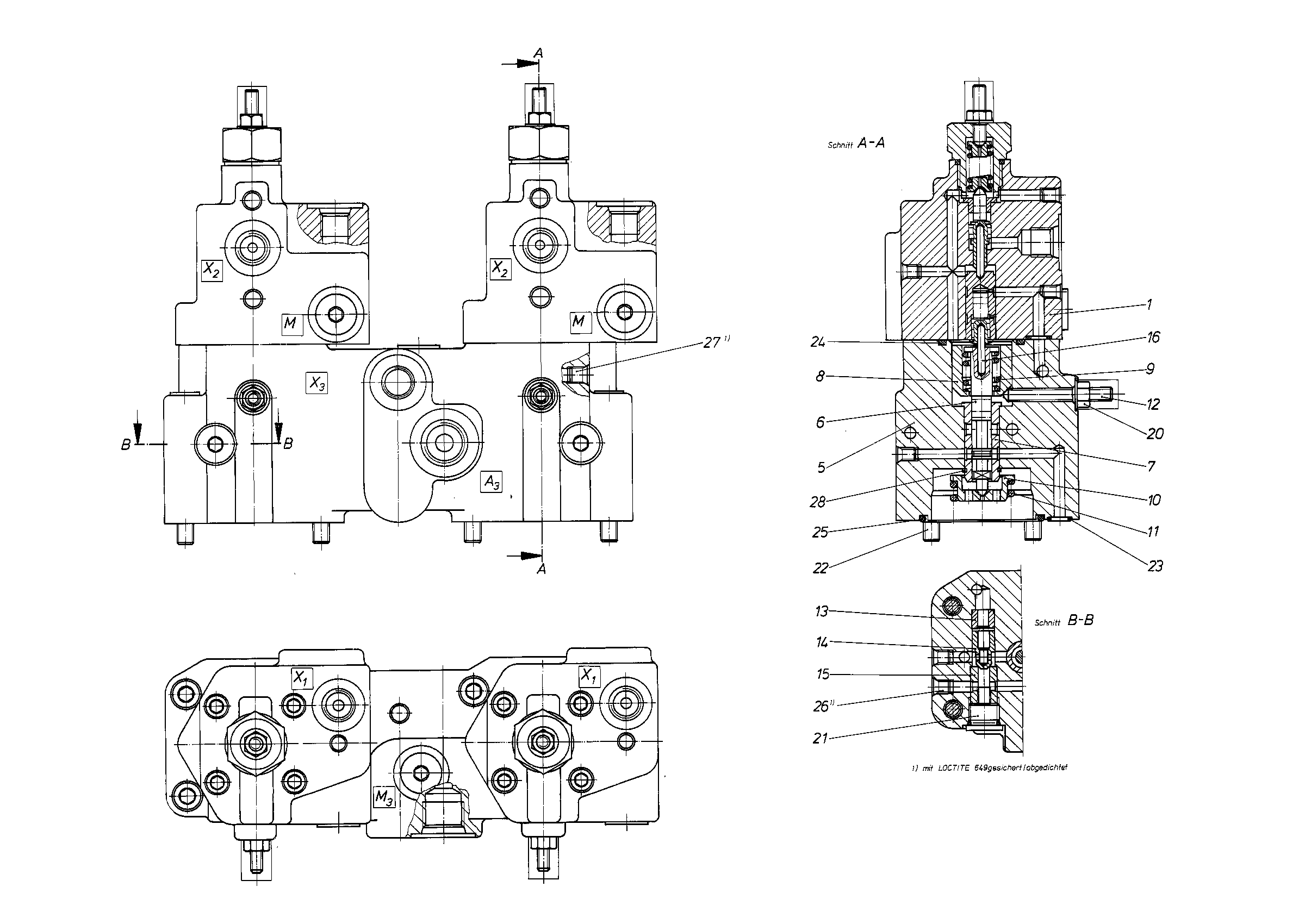

CONTROL UNITR909428129
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909428130 | CONTROL UNIT Stückliste der Baugruppe →L | 2 | ||
| R909432592 | CONTROL HOUSING | 1 | ||
| R909431960 | CONTROL PISTON | 2 | ||
| R909430564 | CONTROL SLEEVE | 2 | ||
| R909426486 | SPRING BUSH | 2 | ||
| R909432566 | COMPRESSION SPRING | 2 | ||
| R909425804 | SPRING DISK | 2 | ||
| R909432579 | COMPRESSION SPRING | 2 | ||
| R909432621 | SETSCREW | 2 | ||
| R909425801 | BUSHING | 2 | ||
| R909425799 | VALVE SPOOL | 2 | ||
| R909430589 | BUSHING | 2 | ||
| R909431195 | PIN | 2 | ||
| R909152425 | SEALING NUTD | 2 | ||
| R909153371 | SCREW PLUGD | 4 | ||
| R909083048 | SOCKET HEAD CAP SCREW | 6 | ||
| R909086498 | O-RINGD | 4 | ||
| R909083769 | O-RINGD | 2 | ||
| R902600656 | O-RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909152490 | SNAP RING | 2 |
