Baugruppe

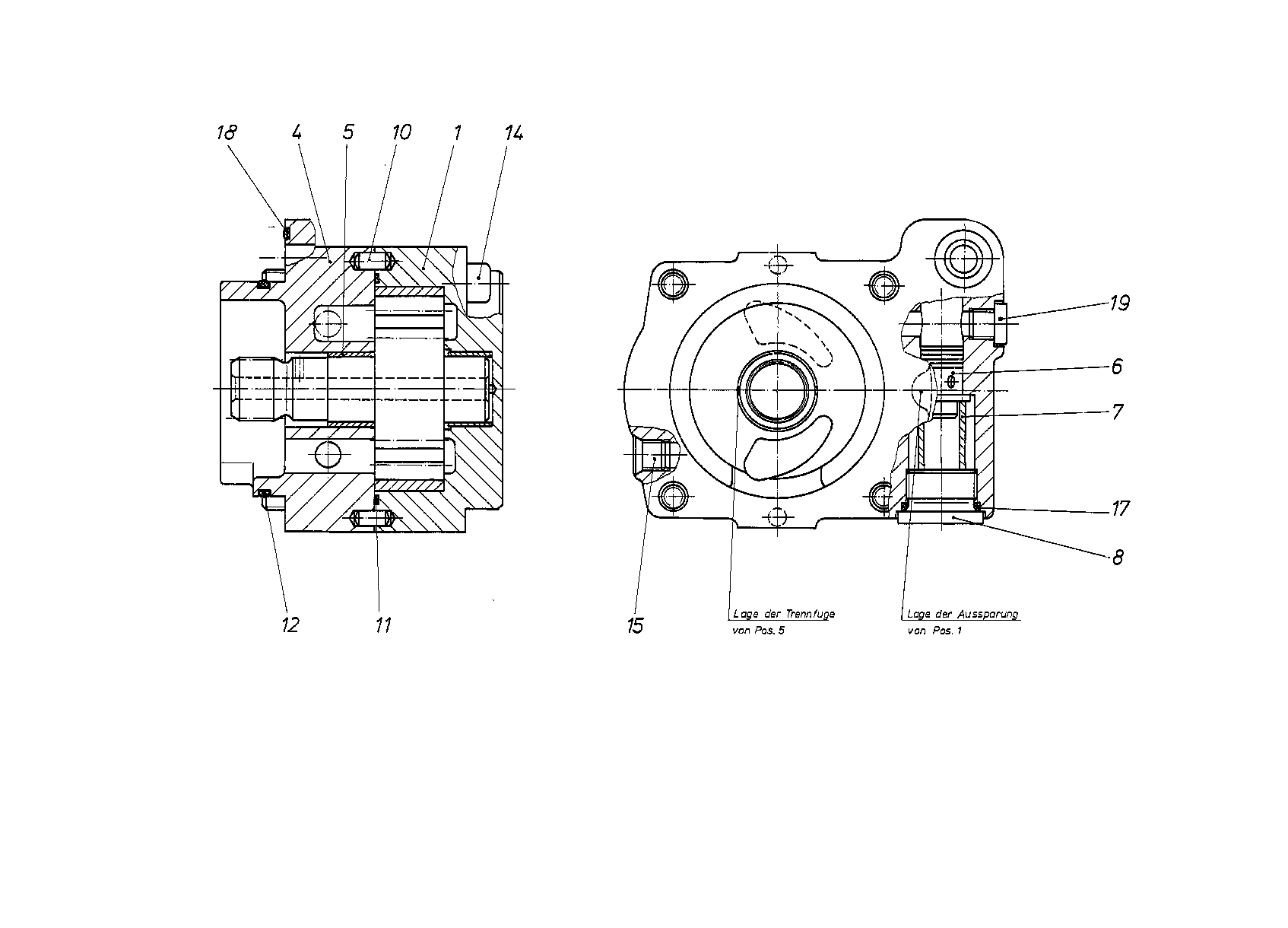

INTERNAL GEAR PUMPR909428366
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909403651 | PUMP COVER Stückliste der Baugruppe →L | 1 | ||
| 4 | R909430350 | INTERMEDIATE PLATE | 1 | |
| 5 | R909069490 | BUSHING | 1 | |
| R909426804 | VALVE SPOOL | 1 | ||
| R909430768 | SPACER BUSHING | 1 | ||
| 8 | R909083226 | SCREW PLUG | 1 | |
| R909084162 | STRAIGHT PIN | 2 | ||
| 11 | R909083748 | O-RINGD | 1 | |
| R909084462 | O-RINGD | 1 | ||
| R909083048 | SOCKET HEAD CAP SCREW | 4 | ||
| 15 | R909831320 | DOUBLE BREAK-OFF PLUG | 1 | |
| 17 | R909083760 | O-RINGD | 1 | |
| R909083753 | O-RINGD | 1 | ||
| 19 | R909153364 | SCREW PLUGD | 1 |
