Baugruppe

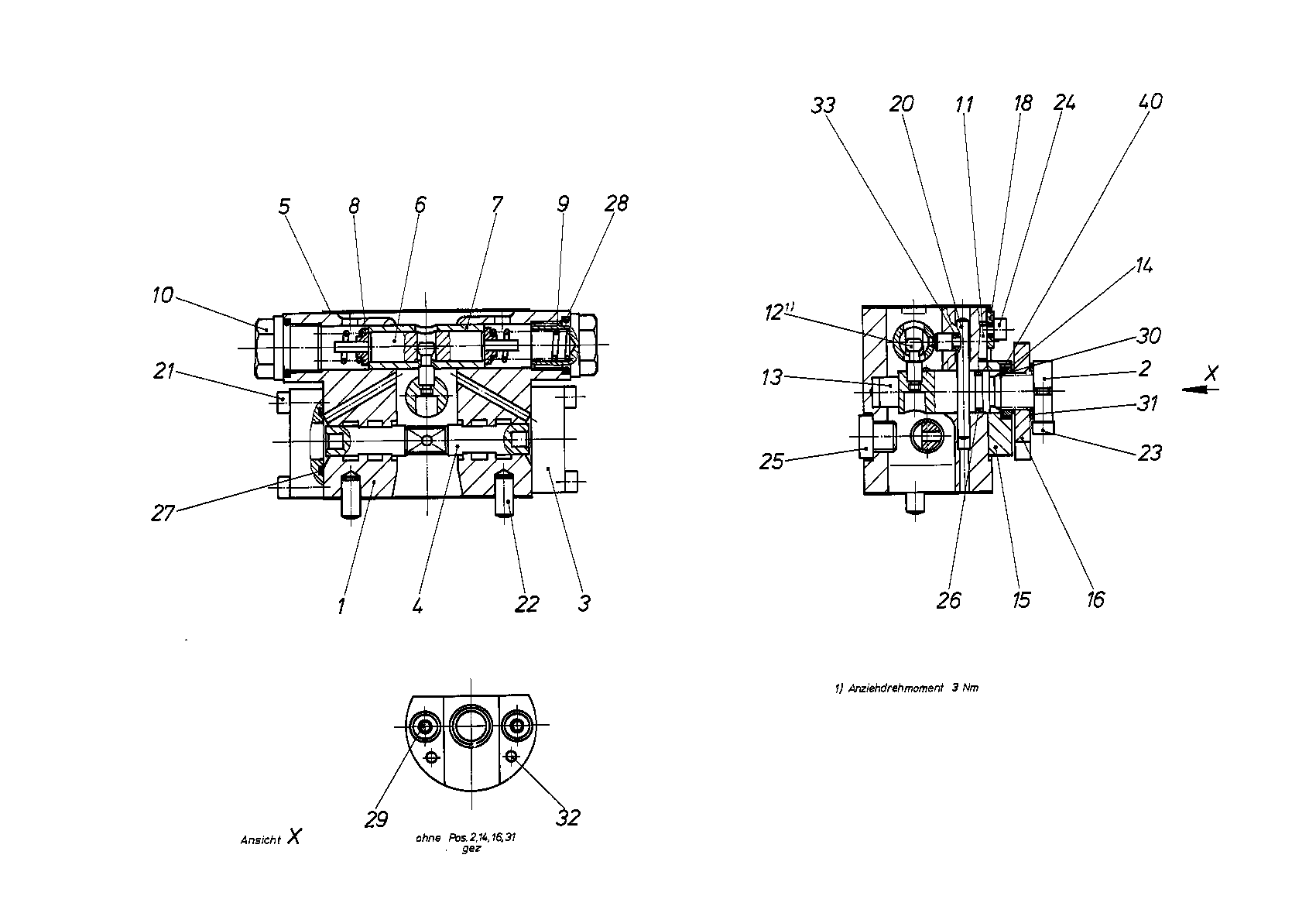

CONTROL MODULER909428600
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909449651 | HOUSING | 1 | ||
| R909430945 | LEVER | 1 | ||
| R909415993 | SEALING COVER | 2 | ||
| R909415994 | CONTROL PISTON | 1 | ||
| R913049009 | SEALD | 2 | ||
| R909415996 | PISTON | 1 | ||
| R909418604 | BUSHING | 1 | ||
| R909415998 | SPRING DISK | 2 | ||
| R909415999 | COMPRESSION SPRING | 2 | ||
| R909416000 | SCREW PLUG | 2 | ||
| R909449547 | ECCENTRIC PIN | 1 | ||
| R902056871 | POSITIONING STUD | 1 | ||
| R909430946 | SHAFT | 1 | ||
| R909430948 | STOP DISC | 1 | ||
| R909430947 | COVER | 1 | ||
| R909432449 | CATCH DISK | 1 | ||
| R909449583 | WASHER | 1 | ||
| R909087167 | STRAIGHT PIN | 1 | ||
| R909083004 | SOCKET HEAD CAP SCREW | 8 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| R909083005 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083001 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R909086332 | O-RINGD | 1 | ||
| R909083737 | O-RINGD | 2 | ||
| R909083752 | O-RINGD | 2 | ||
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083346 | RETAINING RING | 1 | ||
| R909086180 | SHIM RING | 1 | ||
| R909154427 | SLOTTED SPRING PIN | 2 | ||
| R902600639 | O-RINGD | 1 | ||
| R909154476 | SHIM RING | 1 |
