Baugruppe
CONNECTION PLATER909428735

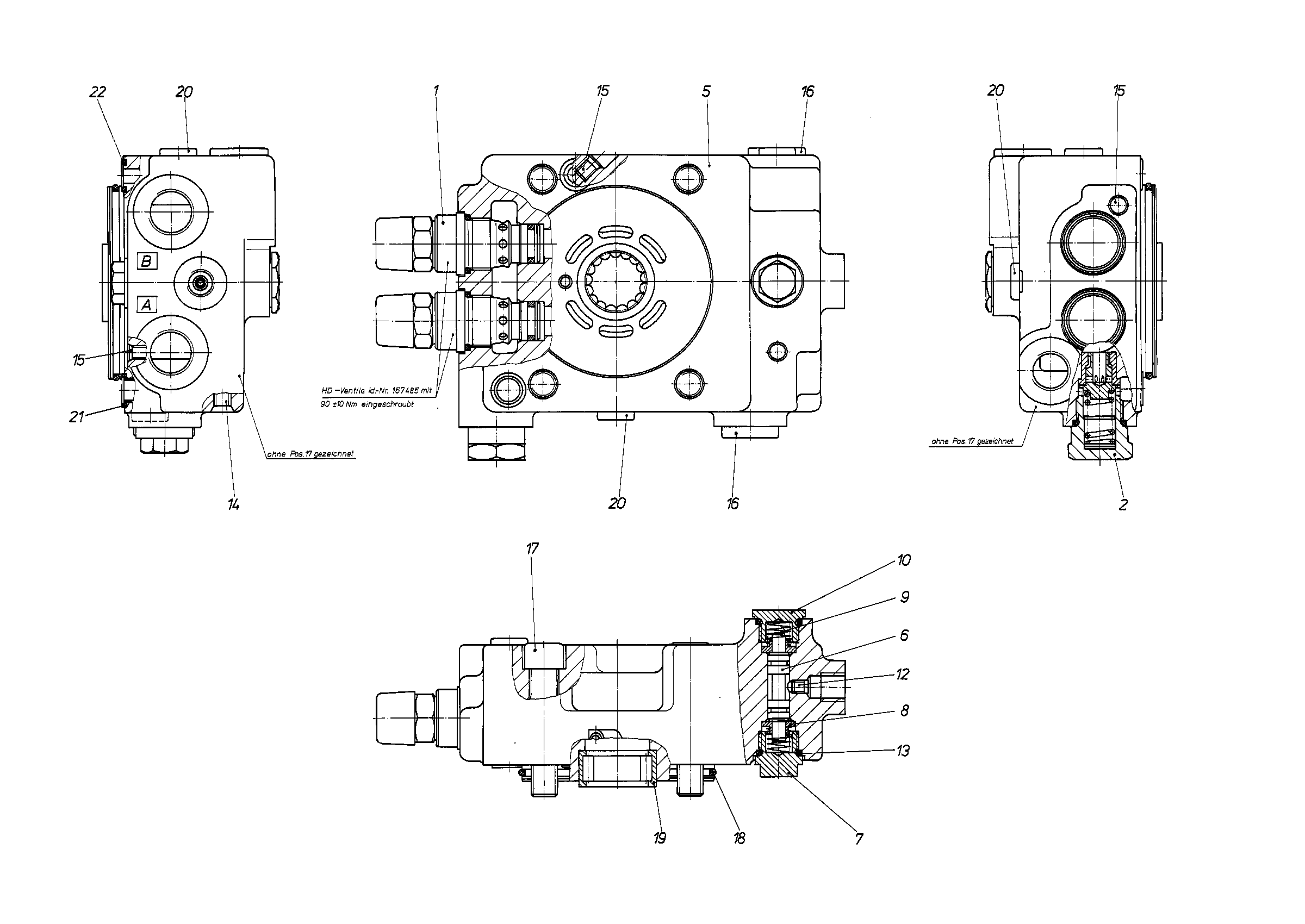

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R902603802 | DELIVERY-VALVE ASSEMBLY Stückliste der Baugruppe →L | 2 | ||
| R909433667 | PRESSURE RELIEF VALVE Stückliste der Baugruppe →L | 1 | ||
| R909922068 | CONNECTION PLATE | 1 | ||
| R909426349 | FLUSHING PISTON | 1 | ||
| R909430960 | SCREW PLUG | 1 | ||
| R909430958 | SPRING DISK | 2 | ||
| R909430961 | COMPRESSION SPRING | 2 | ||
| R909430959 | SCREW PLUG | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909086435 | O-RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R913011603 | SCREW PLUGD | 2 | ||
| R909153287 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085360 | O-RINGD | 1 | ||
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909086333 | O-RINGD | 1 | ||
| R909086332 | O-RINGD | 1 |
