Baugruppe

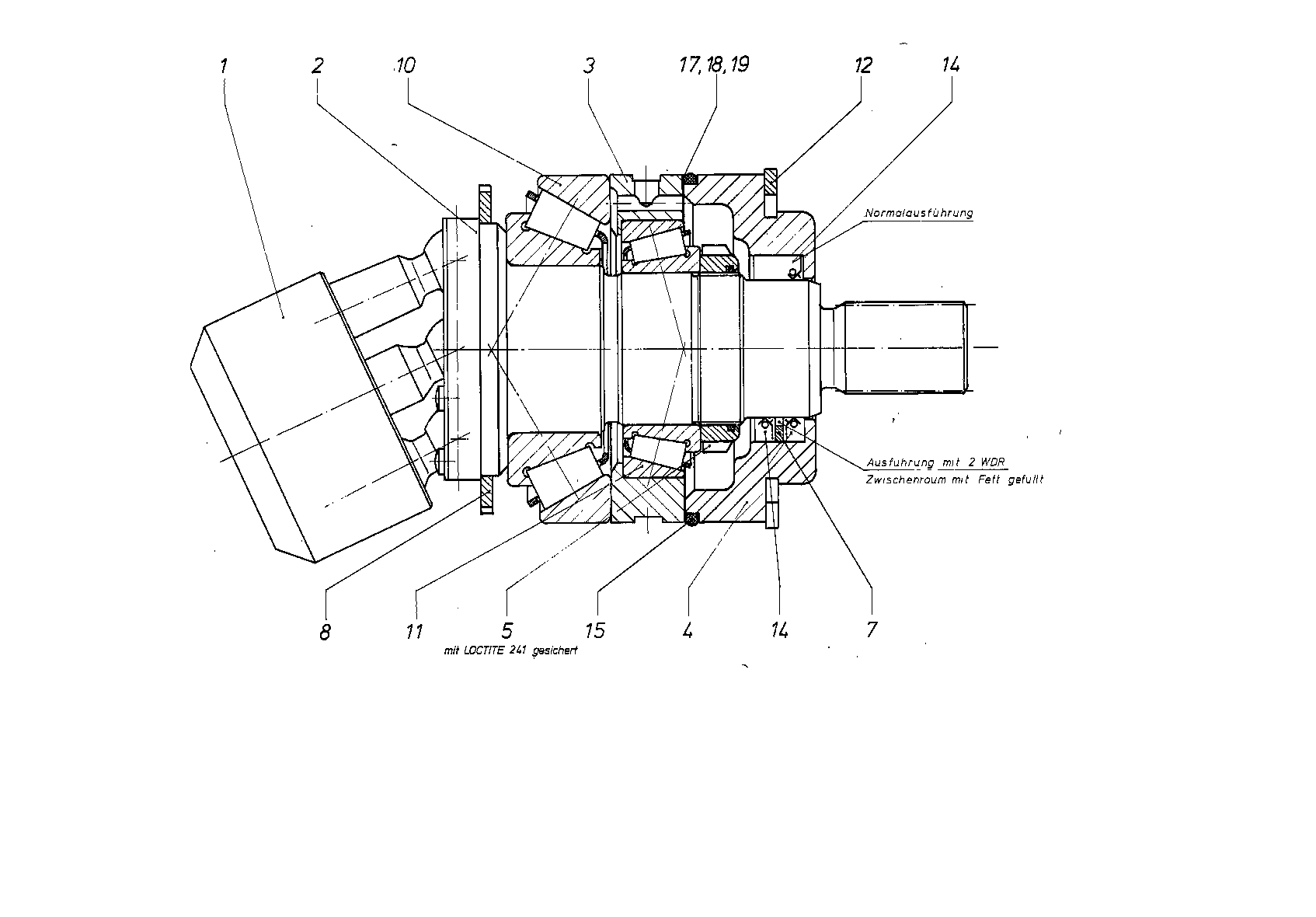

ROTARY GROUPR909428866
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909434100 | ROTARY GROUP Stückliste der Baugruppe →L | 1 | ||
| 2 | R909431232 | DRIVE SHAFT | 1 | |
| R909410382 | BEARING RING | 1 | ||
| R909417788 | LOCKING RINGD | 1 | ||
| R913037930 | SLOTTED ROUND NUT | 1 | ||
| 8 | R909436871 | ANNULAR GEAR | 1 | |
| R909154398 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154399 | TAPERED-ROLLER BEARING | 1 | |
| R909085128 | RETAINING RING | 1 | ||
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| 15 | R909083827 | O-RINGD | 1 | |
| 17 | R909156484 | SHIM RING | 1 | |
| 18 | R909156276 | SHIM RING | 1 | |
| 19 | R909156304 | SHIM RING | 1 |
