Baugruppe

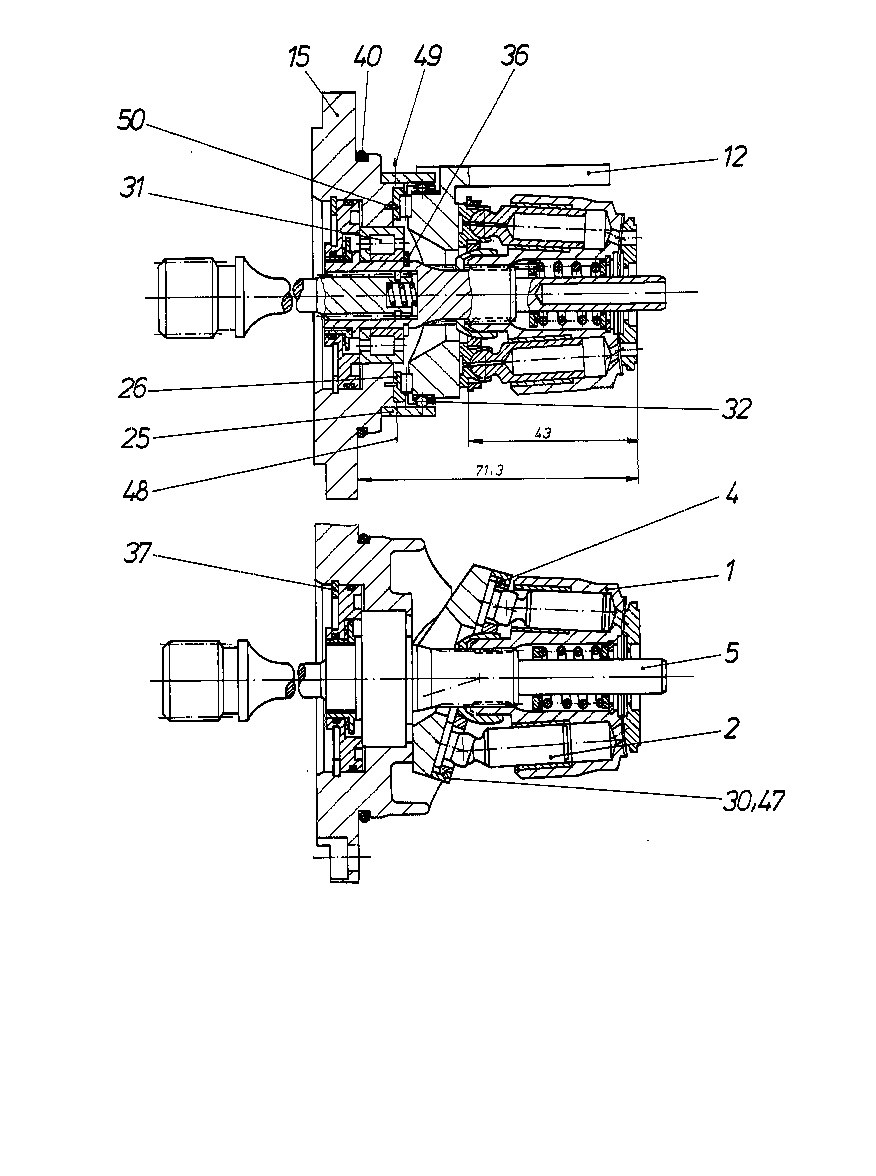

ROTARY GROUPR909429041
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909429043 | CYLINDER Stückliste der Baugruppe →L | 1 | ||
| 2 | R909424005 | PISTON PAD | 7 | |
| 4 | R909424006 | RETAINING PLATE | 1 | |
| 5 | R909429042 | DRIVE SHAFT Stückliste der Baugruppe →L | 1 | |
| R909430919 | SWASH PLATE | 1 | ||
| 15 | R909430899 | BEARING FLANGE Stückliste der Baugruppe →L | 1 | |
| 25 | R909431027 | GUIDE PLATE PAIR | 1 | |
| 26 | R909422897 | BEARING SHELL PAIR | 1 | |
| 30 | R909430670 | RETAINING SEGMENT | 1 | |
| 30 | R909430671 | RETAINING SEGMENT | 1 | |
| 30 | R909430672 | RETAINING SEGMENT | 1 | |
| 31 | R909156460 | CYL. ROLLER BEARING | 1 | |
| R909157869 | CAGE PAIR | 1 | ||
| 36 | R909157320 | RETAINING RING | 1 | |
| 37 | R909157885 | RETAINING RING | 1 | |
| 40 | R909157377 | O-RINGD | 1 | |
| 47 | R909157378 | SCREW | 4 | |
| 48 | R909157379 | SCREW | 4 | |
| 49 | R909157380 | HALF LENGTH TPR GRVD DOWEL PIN | 4 | |
| 50 | R909157386 | STRAIGHT PIN | 2 |
