Baugruppe

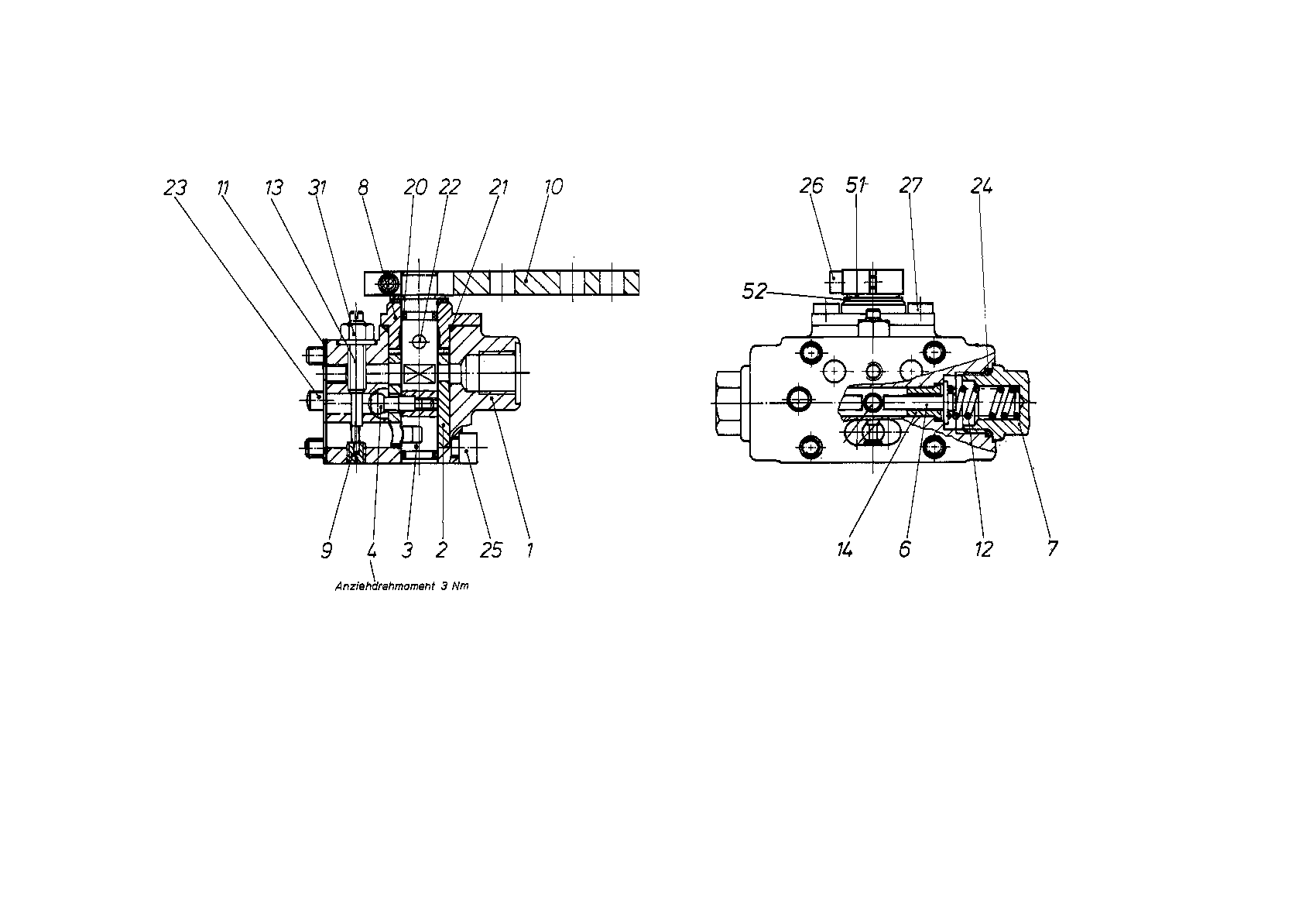

CONTROL UNITR909429174
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909408289 | HOUSING | 1 | |
| 2 | R909439059 | CONTROL SLEEVE | 1 | |
| 3 | R909076420 | CONTROL SHAFT | 1 | |
| 4 | R909425121 | POSITIONING STUD | 1 | |
| R909425120 | BOLT | 2 | ||
| R909400335 | SCREW PLUG | 2 | ||
| 8 | R909436541 | COVER | 1 | |
| R902016196 | SETSCREW | 1 | ||
| R909401723 | LEVER | 1 | ||
| 11 | R902603829 | SEALD | 1 | |
| R909416191 | COMPRESSION SPRING | 2 | ||
| 13 | R902206461 | ECCENTRIC PIN | 1 | |
| 14 | R909400336 | BUSHING | 2 | |
| 20 | R909083728 | O-RINGD | 2 | |
| 21 | R909086432 | O-RINGD | 1 | |
| 22 | R909156217 | NEEDLE-ROLLER | 1 | |
| R913009677 | STRAIGHT PIN | 2 | ||
| 24 | R909083757 | O-RINGD | 2 | |
| 25 | R909083028 | SOCKET HEAD CAP SCREW | 4 | |
| 26 | R909083012 | SOCKET HEAD CAP SCREW | 1 | |
| R909083183 | SOCKET HEAD CAP SCREW | 2 | ||
| 31 | R909152425 | SEALING NUT | 1 | |
| 51 | R909083346 | RETAINING RING | 1 | |
| 52 | R909086180 | SHIM RING | 1 | |
| 98 | R902166063 | SEAL KIT | 1 |
