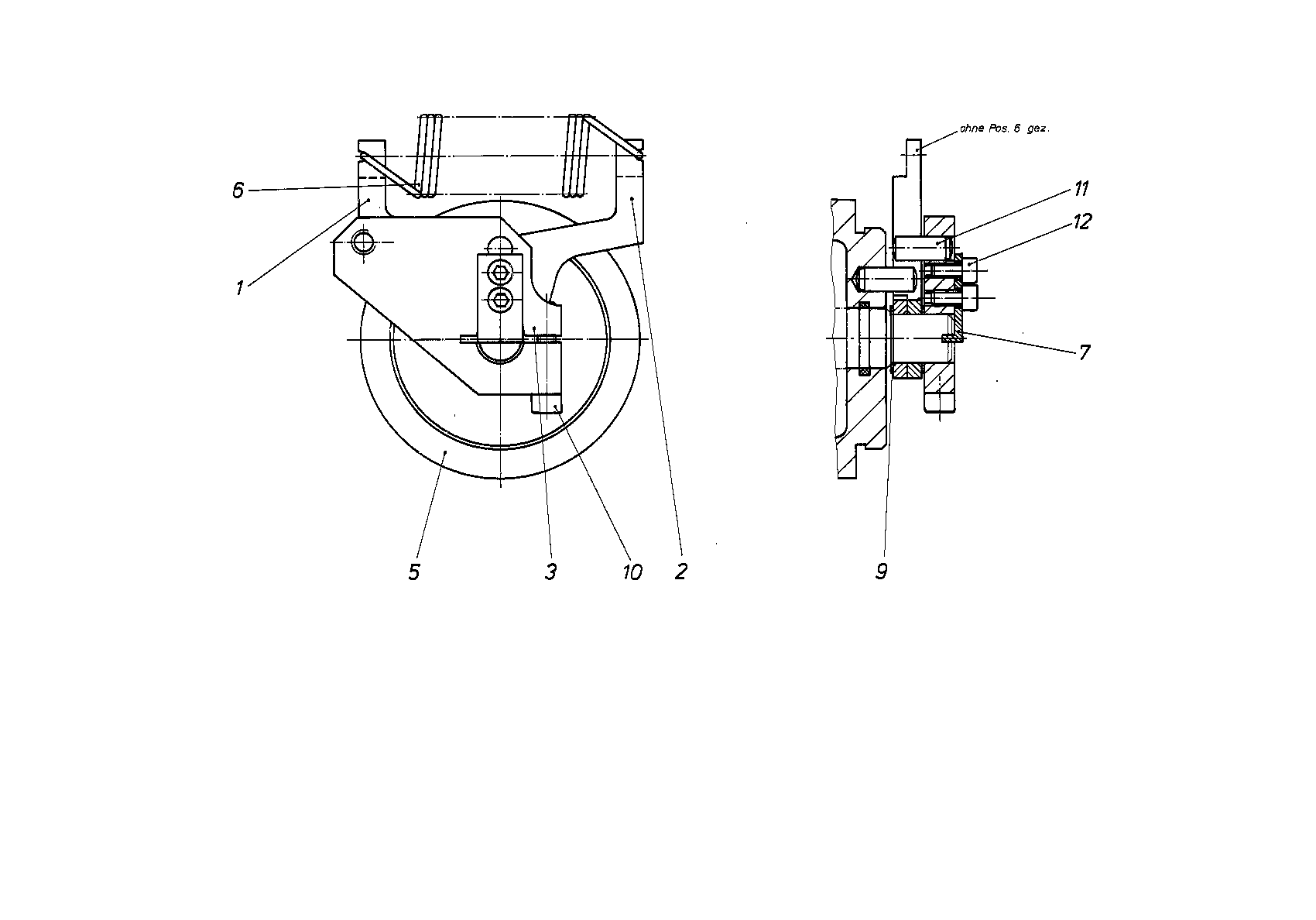

Baugruppe
CONTROLR909429443
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909430263 | ANGLE LEVER | 1 | |
| 2 | R909430264 | ANGLE LEVER | 1 | |
| R909430570 | ADJUSTING LEVER | 1 | ||
| 5 | R909431700 | HOUSING COVER | 1 | |
| 6 | R909432608 | EXTENSION SPRING | 1 | |
| 7 | R909430571 | GUSSET | 1 | |
| 9 | R909153377 | SHIM RING | 2 | |
| R909083024 | SOCKET HEAD CAP SCREW | 1 | ||
| 11 | R909084213 | STRAIGHT PIN | 2 | |
| 12 | R909083008 | SOCKET HEAD CAP SCREW | 2 |
