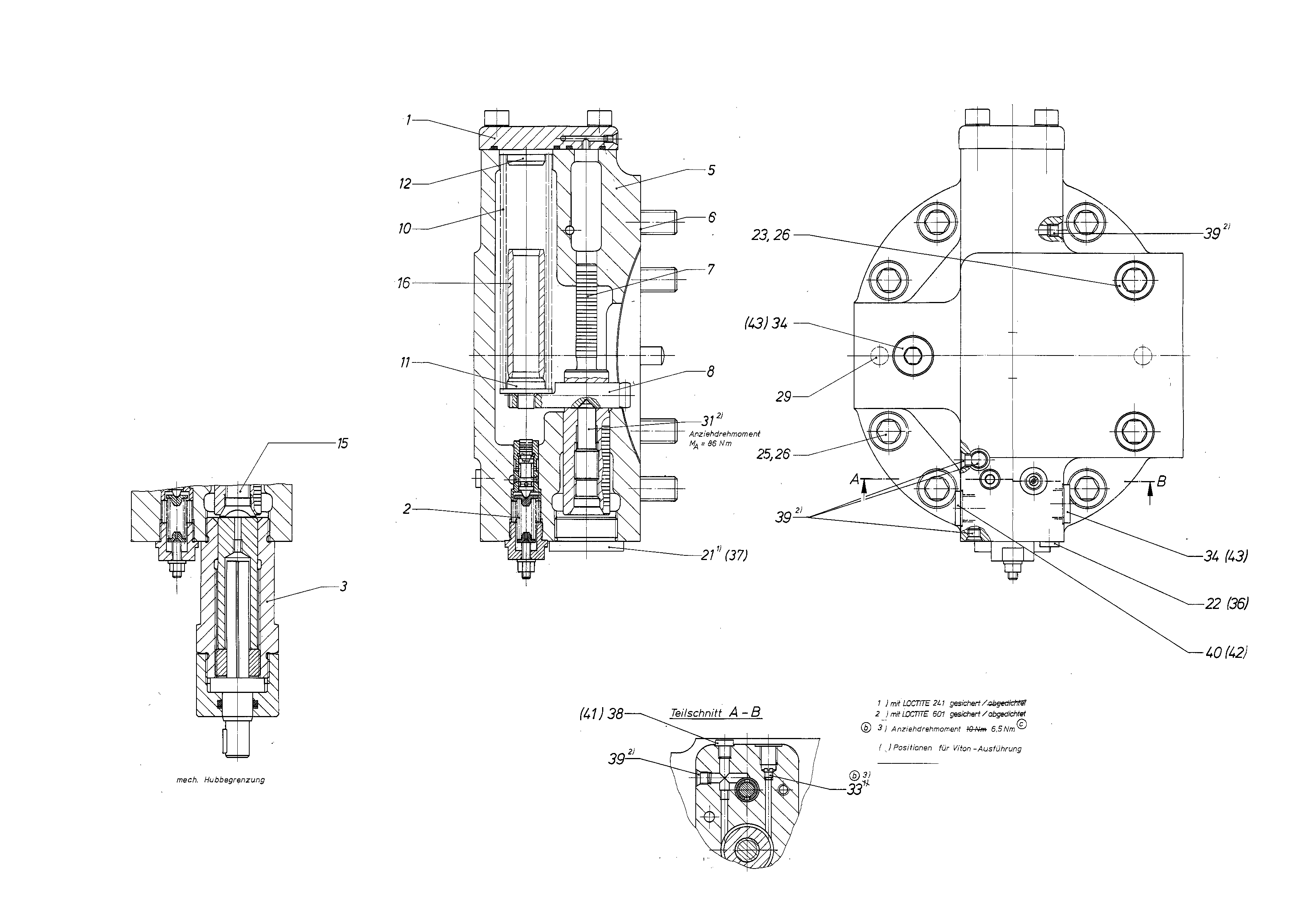

Baugruppe
CONTROLR909429695
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909400128 | COVER Stückliste der Baugruppe →L | 1 | ||
| R909401340 | CONTROL PART Stückliste der Baugruppe →L | 1 | ||
| R909432785 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R909440451 | SEALD | 1 | ||
| R909409967 | POSITIONING PISTON | 1 | ||
| R909073954 | POSITIONING STUD | 1 | ||
| 10 | R909073999 | COMPRESSION SPRING | 1 | |
| 11 | R909080436 | SPRING DISK | 1 | |
| R909073957 | SPRING DISK | 1 | ||
| R909402273 | GUIDE SLEEVE | 1 | ||
| 21 | R909153862 | SCREW PLUGD | 1 | |
| 22 | R909153364 | SCREW PLUGD | 1 | |
| R909083148 | SOCKET HEAD CAP SCREW | 2 | ||
| 25 | R909083131 | SOCKET HEAD CAP SCREW | 6 | |
| R909083254 | SPRING LOCK WASHER | 8 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| 31 | R909408958 | SETSCREW | 1 | |
| 33 | R909156494 | NOZZLE | 1 | |
| 34 | R909153860 | SCREW PLUGD | 2 | |
| 38 | R909154024 | SCREW PLUGD | 1 | |
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| 40 | R909153815 | SCREW PLUGD | 1 |
