Baugruppe

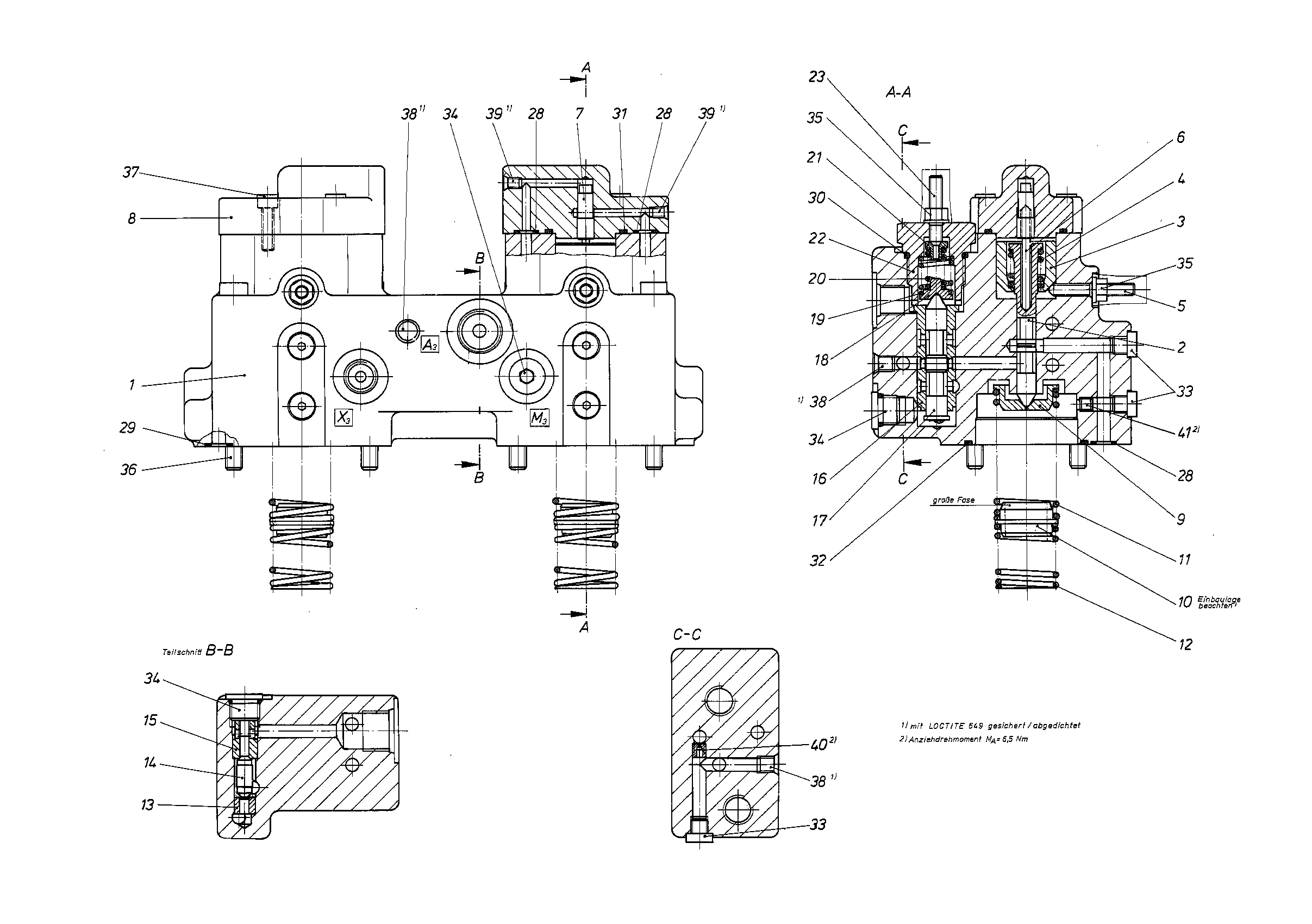

CONTROL MODULER909429769
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909431864 | CONTROL HOUSING | 1 | ||
| R909431938 | CONTROL PISTON | 2 | ||
| R909426486 | SPRING BUSH | 2 | ||
| R909425802 | COMPRESSION SPRING | 2 | ||
| R909420992 | SETSCREW | 2 | ||
| R909420530 | PIN | 2 | ||
| R909431937 | CONTROL PISTON | 2 | ||
| R909431971 | SEALING COVER | 2 | ||
| R909431987 | SPRING DISK | 2 | ||
| R909431919 | SPRING DISK | 2 | ||
| R909431920 | COMPRESSION SPRING | 2 | ||
| R909431921 | COMPRESSION SPRING | 2 | ||
| R909425801 | BUSHING | 2 | ||
| R909436407 | VALVE CONE | 2 | ||
| R909431990 | VALVE BUSHING | 2 | ||
| R909431037 | CONTROL SLEEVE | 2 | ||
| R909431035 | CONTROL PISTON | 2 | ||
| R909418698 | SPRING DISK | 2 | ||
| R909410091 | COMPRESSION SPRING | 2 | ||
| R909414362 | COMPRESSION SPRING | 2 | ||
| R909422325 | SPRING DISK | 2 | ||
| R909430993 | SCREW PLUG | 2 | ||
| R909421402 | SETSCREW | 2 | ||
| R909086498 | O-RINGD | 6 | ||
| R909085709 | O-RINGD | 4 | ||
| R909083761 | O-RINGD | 2 | ||
| R909086730 | O-RINGD | 2 | ||
| R902600656 | O-RINGD | 2 | ||
| R909154024 | SCREW PLUGD | 6 | ||
| R909153371 | SCREW PLUGD | 5 | ||
| R909152425 | SEALING NUTD | 4 | ||
| R909083051 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083021 | SOCKET HEAD CAP SCREW | 8 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 10 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R909083490 | SETSCREW | 2 |
