Baugruppe

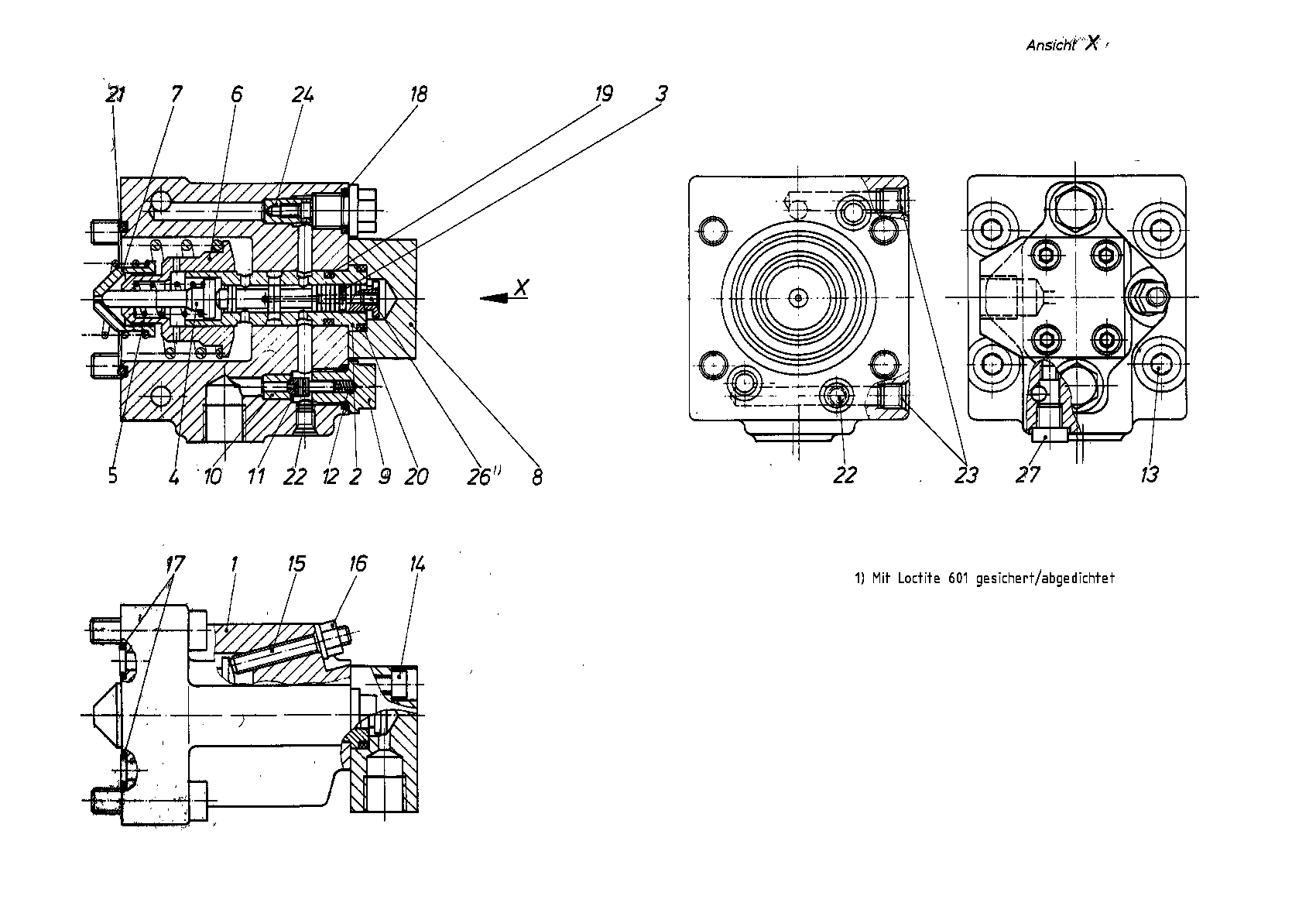

CONTROL MODULER909429824
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909422993 | HOUSING | 1 | ||
| R909414074 | CONTROL SLEEVE | 1 | ||
| R909414236 | CONTROL PISTON | 1 | ||
| R909414235 | SPRING BOLT | 1 | ||
| R909431617 | COMPRESSION SPRING | 1 | ||
| R909415043 | SPRING BUSH | 1 | ||
| R909415042 | SPRING DISK | 1 | ||
| R909432652 | COVER | 1 | ||
| R902035187 | SCREW PLUG | 2 | ||
| R902209845 | BUSHING | 1 | ||
| R909426104 | BOLT | 1 | ||
| R909060383 | COMPRESSION SPRING | 1 | ||
| R909083040 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154057 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909086332 | O-RINGD | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909083753 | O-RINGD | 1 | ||
| R909083757 | O-RINGD | 1 | ||
| R909086378 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909426105 | ORIFICE BUSHING | 1 | ||
| R909083488 | SETSCREW | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
