Baugruppe

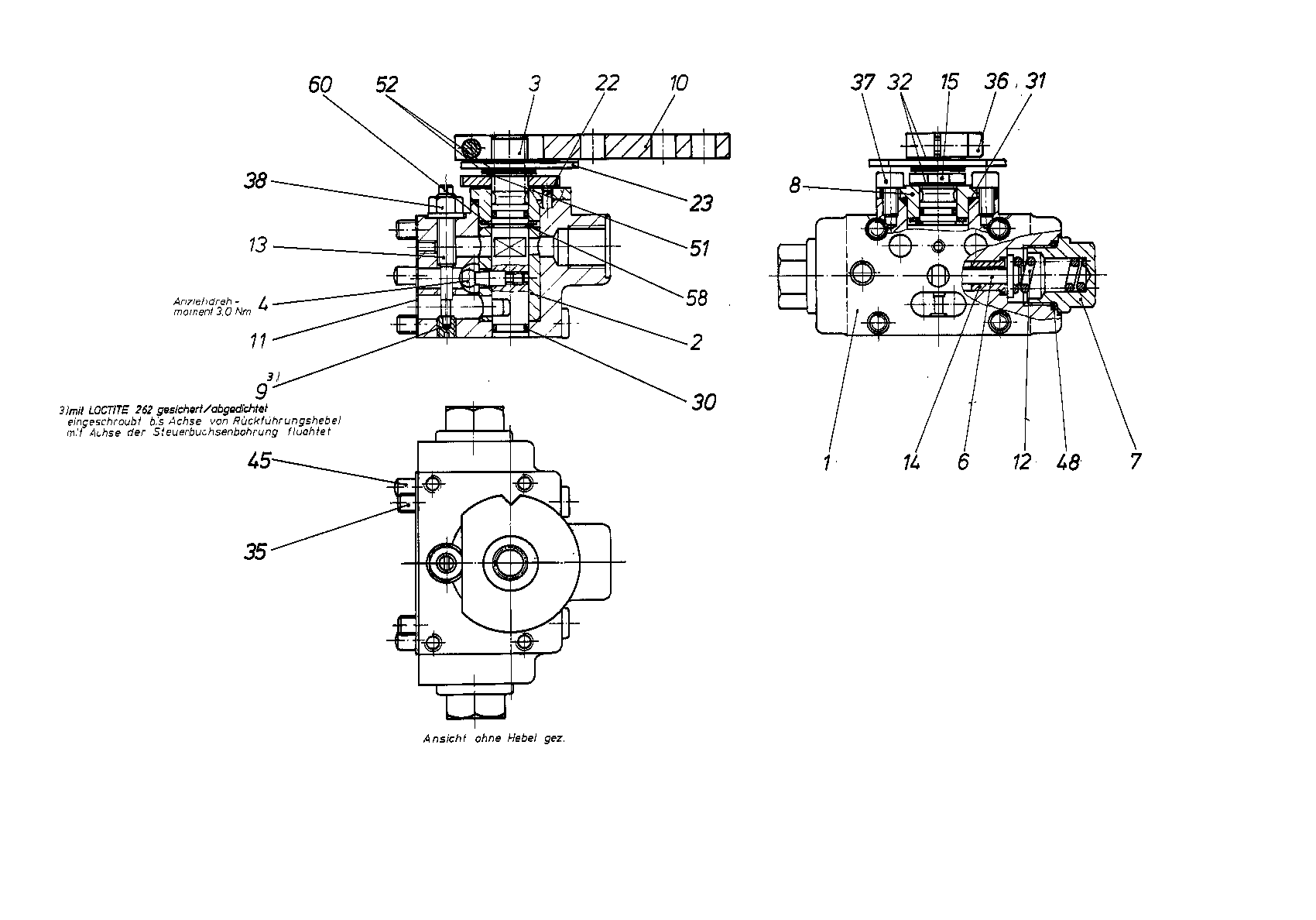

CONTROL UNITR909429875
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909417710 | HOUSING | 1 | ||
| 2 | R909439059 | CONTROL SLEEVE | 1 | |
| 3 | R909426382 | CONTROL SHAFT | 1 | |
| R909425121 | POSITIONING STUD | 1 | ||
| R909425120 | BOLT | 2 | ||
| 7 | R909400335 | SCREW PLUG | 2 | |
| 8 | R902025490 | COVER | 1 | |
| 9 | R902016196 | SETSCREW | 1 | |
| R909415411 | LEVER | 1 | ||
| 11 | R902603829 | SEALD | 1 | |
| R909416191 | COMPRESSION SPRING | 2 | ||
| 13 | R909079473 | ECCENTRIC PIN | 1 | |
| 14 | R909400336 | BUSHING | 2 | |
| 15 | R909439064 | STOP DISC | 1 | |
| R909154427 | SLOTTED SPRING PIN | 1 | ||
| R909430925 | CATCH DISK | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| 31 | R909086432 | O-RINGD | 1 | |
| 32 | R909154476 | SHIM RING | 2 | |
| 35 | R909083028 | SOCKET HEAD CAP SCREW | 4 | |
| 36 | R909083012 | SOCKET HEAD CAP SCREW | 1 | |
| 37 | R909083183 | SOCKET HEAD CAP SCREW | 2 | |
| R909152425 | SEALING NUT | 1 | ||
| R913009677 | STRAIGHT PIN | 2 | ||
| 48 | R909083757 | O-RINGD | 2 | |
| 51 | R909083346 | RETAINING RING | 1 | |
| R909086180 | SHIM RING | 2 | ||
| R909830708 | V-RING | 1 | ||
| 60 | R909830824 | SHIM RING | 1 |
