Baugruppe

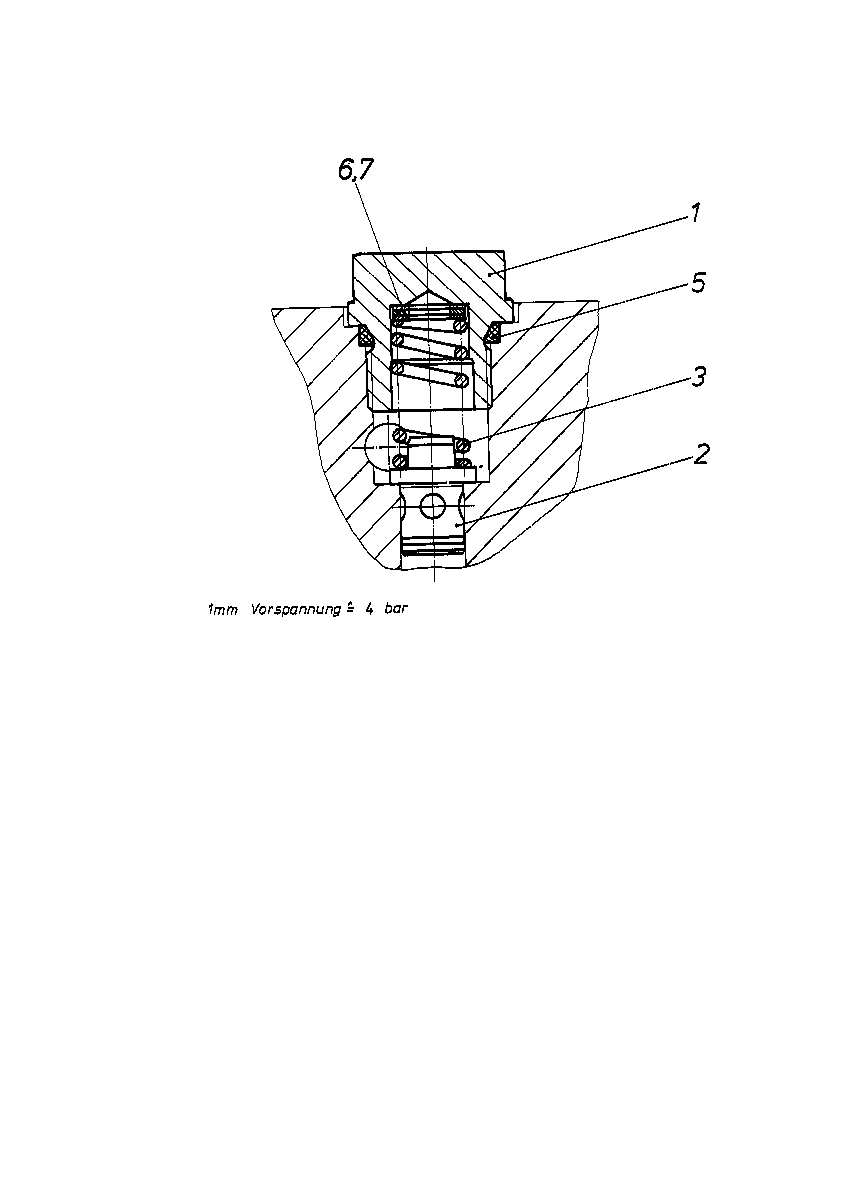

PRESSURE RELIEF VALVER909433086
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909419330 | SCREW PLUG | 1 | |
| 2 | R909430226 | VALVE SPOOL | 1 | |
| 3 | R909432259 | COMPRESSION SPRING | 1 | |
| 5 | R909083753 | O-RINGD | 1 | |
| 6 | R909157953 | SHIM RING | 1 | |
| 7 | R909157954 | SHIM RING | 2 |
Baugruppe
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909419330 | SCREW PLUG | 1 | |
| 2 | R909430226 | VALVE SPOOL | 1 | |
| 3 | R909432259 | COMPRESSION SPRING | 1 | |
| 5 | R909083753 | O-RINGD | 1 | |
| 6 | R909157953 | SHIM RING | 1 | |
| 7 | R909157954 | SHIM RING | 2 |
