Baugruppe

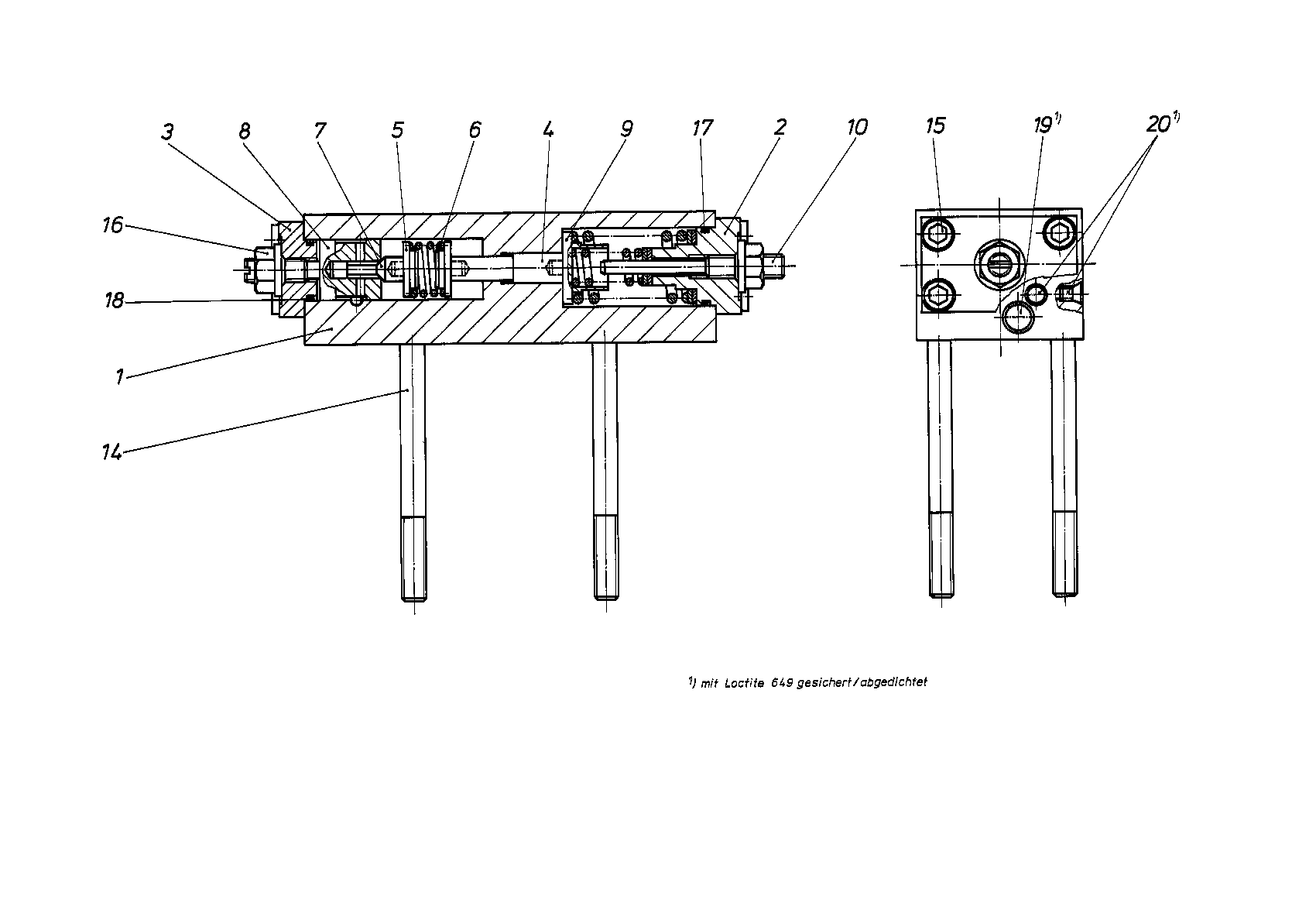

SENSING DEVICER909433100
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909435179 | VALVE HOUSING | 1 | |
| 2 | R909432483 | SPRING COVER | 1 | |
| R909432484 | COVER | 1 | ||
| 4 | R909431634 | DIFFERENTIAL PISTON | 1 | |
| R909431633 | SPRING DISK | 2 | ||
| 6 | R909431957 | COMPRESSION SPRING | 1 | |
| 7 | R909431631 | VALVE SPOOL | 1 | |
| 8 | R909435178 | VALVE SEAT | 1 | |
| R909431639 | SPRING DISK | 1 | ||
| R909431632 | SETSCREW | 1 | ||
| 14 | R909083054 | SOCKET HEAD CAP SCREW | 4 | |
| R909083017 | SOCKET HEAD CAP SCREW | 8 | ||
| R909152707 | SEALING NUTD | 2 | ||
| R909830129 | O-RINGD | 1 | ||
| R909084939 | O-RINGD | 1 | ||
| 19 | R909831319 | DOUBLE BREAK-OFF PLUG | 1 | |
| 20 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 22 | R909084939 | O-RINGD | 1 |
