Baugruppe

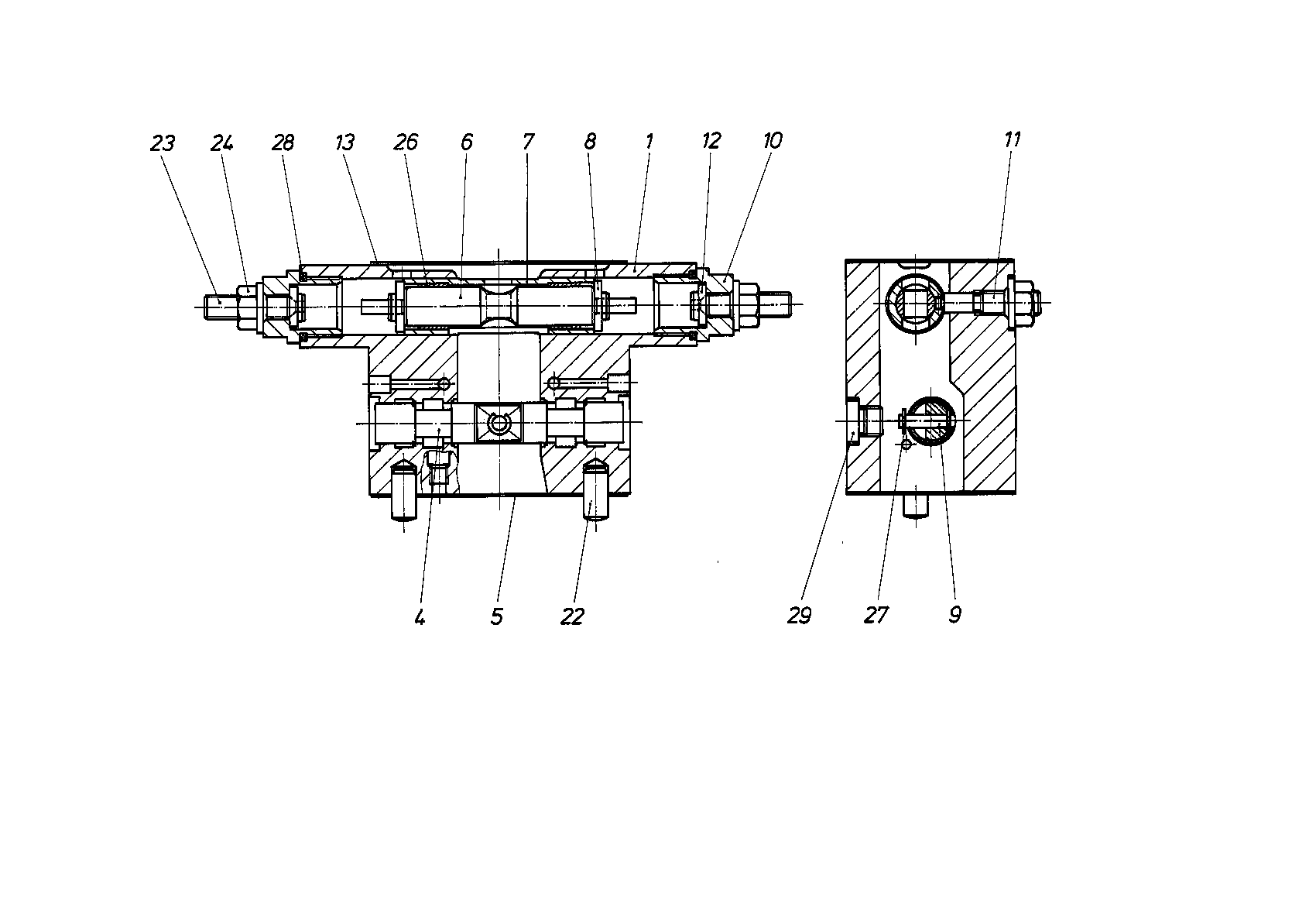

CONTROL MODULER909433102
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909432273 | HOUSING | 1 | |
| R909431628 | CONTROL PISTON | 1 | ||
| 5 | R909424834 | SEALD | 1 | |
| 6 | R909424477 | PISTON | 1 | |
| R909424479 | BUSHING | 1 | ||
| 8 | R909424476 | SPRING DISK | 2 | |
| 9 | R909424482 | BOLT | 1 | |
| R909424474 | SCREW PLUG | 2 | ||
| 11 | R909424473 | ECCENTRIC PIN | 1 | |
| R909424475 | SPRING DISK | 2 | ||
| 13 | R909432275 | SEALD | 1 | |
| R909087752 | STRAIGHT PIN | 2 | ||
| 23 | R909157405 | SETSCREW | 2 | |
| 24 | R909152707 | SEALING NUTD | 3 | |
| 26 | R909157401 | DU-BUSHING | 2 | |
| R909157406 | LOCKING WASHER | 2 | ||
| 28 | R909083757 | O-RINGD | 2 | |
| R909153364 | SCREW PLUGD | 1 |
