Baugruppe
CONTROLR909433278

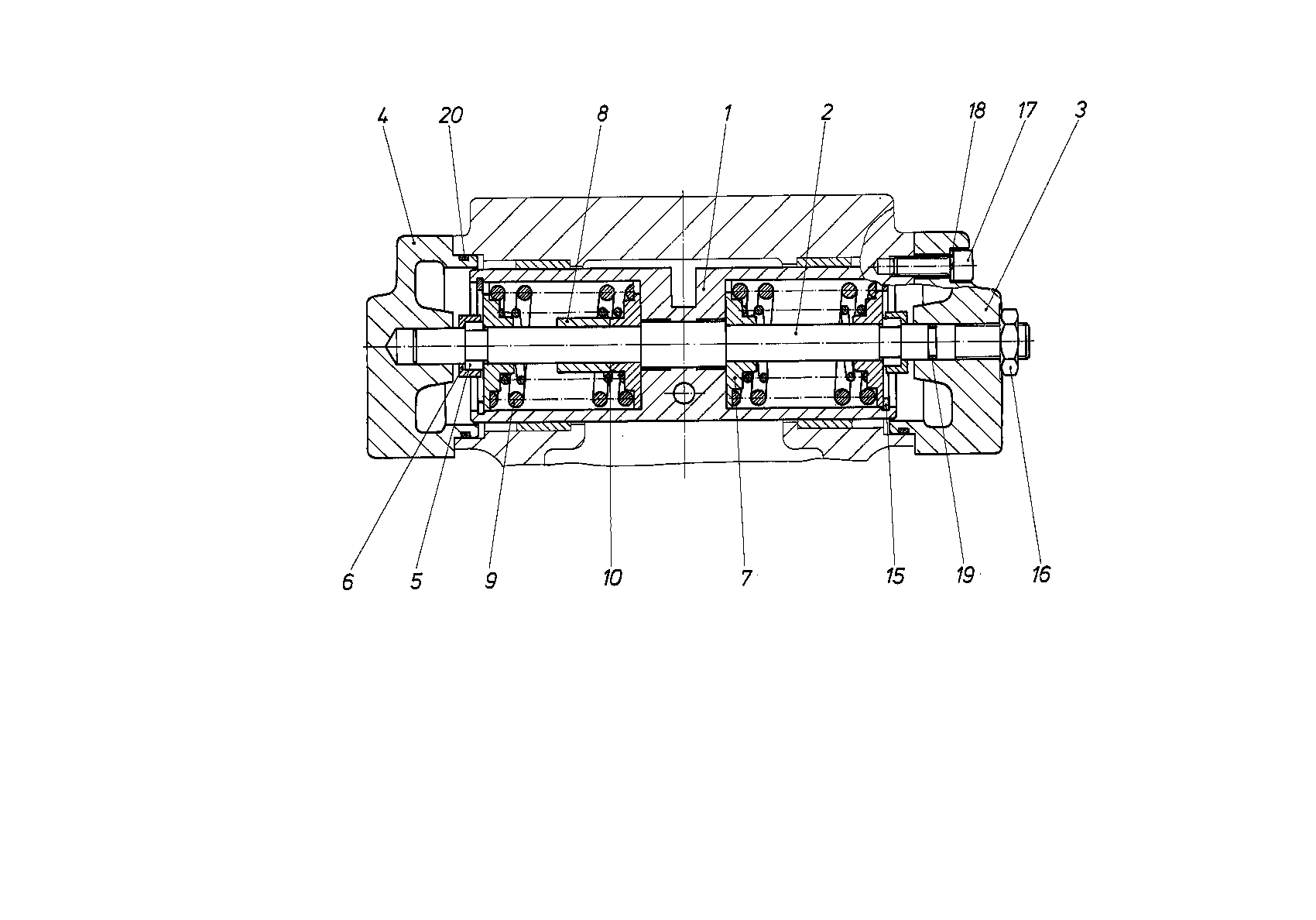

| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| R909432389 | POSITIONING PISTON | 1 | ||
| 2 | R909440435 | ROD | 1 | |
| 3 | R909408601 | COVER | 1 | |
| R909408602 | COVER | 1 | ||
| 5 | R902015508 | RING | 2 | |
| 5 | R902013493 | RING | 1 | |
| 5 | R902015509 | RING | 1 | |
| 5 | R902015510 | RING | 1 | |
| 5 | R902015511 | RING | 1 | |
| 5 | R902015512 | RING | 1 | |
| 6 | R909400470 | SLEEVE | 2 | |
| 7 | R909418944 | SPRING DISK | 4 | |
| 8 | R909400472 | SPACER BUSHING | 1 | |
| 8 | R909400473 | SPACER BUSHING | 1 | |
| 8 | R909400474 | SPACER BUSHING | 1 | |
| 9 | R909418945 | COMPRESSION SPRING | 2 | |
| R909418946 | COMPRESSION SPRING | 2 | ||
| 15 | R909156218 | RETAINING RING | 2 | |
| R909154918 | HEXAGON NUT | 1 | ||
| 17 | R909083021 | SOCKET HEAD CAP SCREW | 8 | |
| 18 | R909083249 | SPRING LOCK WASHER | 8 | |
| R909085709 | O-RINGD | 1 | ||
| R909086377 | O-RINGD | 2 |
