Baugruppe

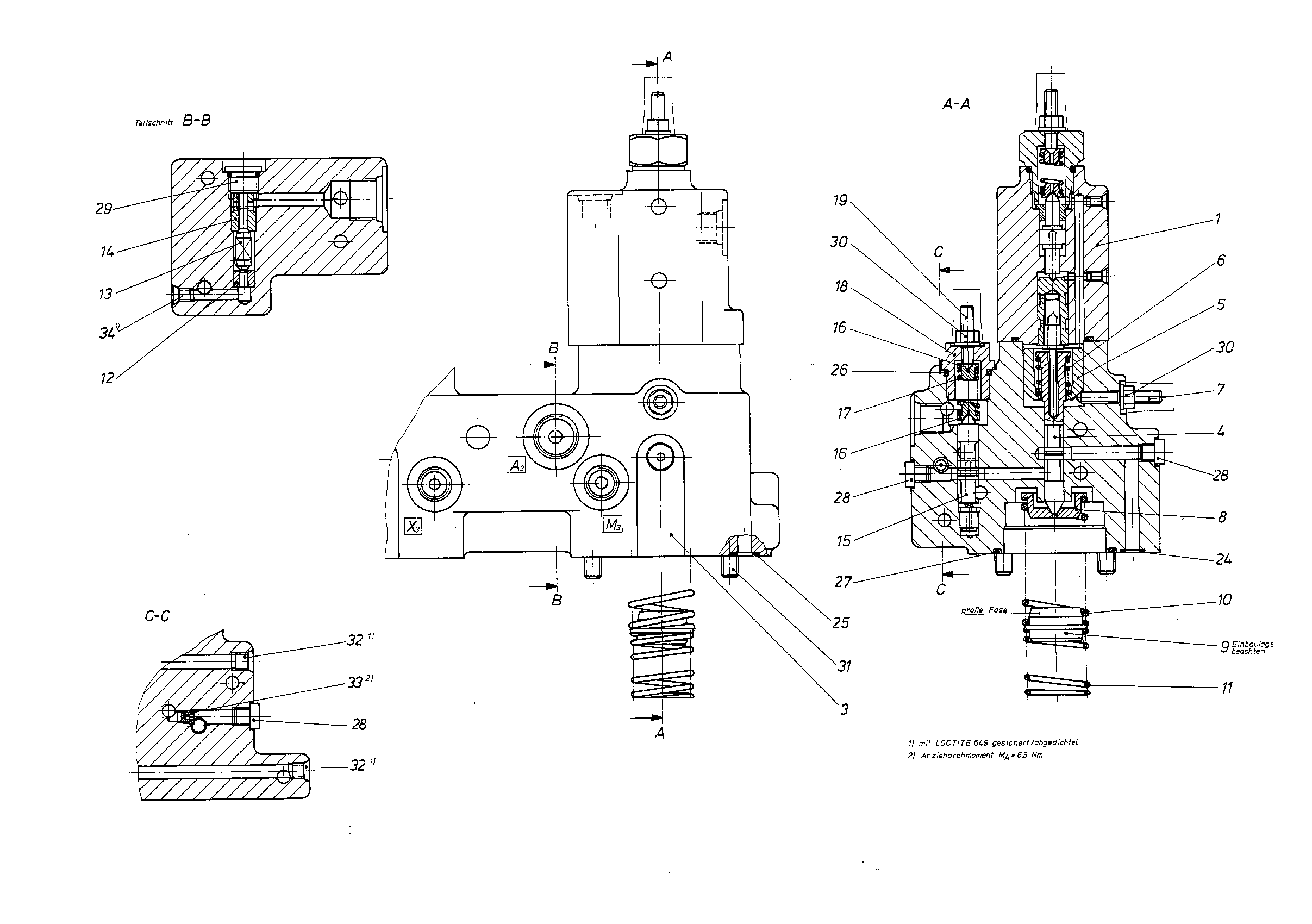

CONTROL MODULER909433335
| Pos. | Nummer | Bezeichnung | Menge | Zur Anfrage |
|---|---|---|---|---|
| 1 | R909433185 | CONTROL MODULE Stückliste der Baugruppe →L | 2 | |
| 3 | R909432375 | CONTROL HOUSING | 1 | |
| R909431938 | CONTROL PISTON | 2 | ||
| 5 | R909426486 | SPRING BUSH | 2 | |
| 6 | R909432566 | COMPRESSION SPRING | 2 | |
| 7 | R909420992 | SETSCREW | 2 | |
| 8 | R909431987 | SPRING DISK | 2 | |
| 9 | R909436043 | SPRING DISK | 2 | |
| R909432442 | COMPRESSION SPRING | 2 | ||
| 11 | R909432496 | COMPRESSION SPRING | 2 | |
| 12 | R909425801 | BUSHING | 2 | |
| R909436407 | VALVE CONE | 2 | ||
| 14 | R909431990 | VALVE BUSHING | 2 | |
| R909432427 | CONTROL PISTON | 2 | ||
| R909416961 | SPRING DISK | 4 | ||
| 17 | R909430757 | COMPRESSION SPRING | 2 | |
| R909432426 | SCREW PLUG | 2 | ||
| R909420991 | SETSCREW | 2 | ||
| 24 | R909086498 | O-RINGD | 2 | |
| R909085709 | O-RINGD | 4 | ||
| R909083757 | O-RINGD | 2 | ||
| R902600656 | O-RINGD | 2 | ||
| R909154024 | SCREW PLUGD | 6 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909152425 | SEALING NUTD | 4 | ||
| 31 | R909083051 | SOCKET HEAD CAP SCREW | 6 | |
| 32 | R909831319 | DOUBLE BREAK-OFF PLUG | 10 | |
| 33 | R909156492 | NOZZLE | 2 | |
| 34 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
